F224746E | 3030 SPRING BRAKE CHAMBER | Replace T3030S

F224746E | 3030 SPRING BRAKE CHAMBER | Replace T3030S

SKU: F224746E

Inventory: More than 50 in Stock

Shipping: Free Shipping

$ 50.97 USD
$ 50.97 USD
Sale Sold out
Shipping calculated at checkout.

Shipping Policy

In order to send your purchase, our company may use different freight companies like USPS, UPS and some 3erd Carrier Services for Oversize orders, this will not affect the final price of your order. We will send you all the information in due time.

For Free Shipping and Freight/Oversize Shipments they are some special term you may check at our Terms & Conditions page.

Return Policy

If for any reason you need to return a purchased item, we have a 30-day return policy, which means you have 30 days after receiving your item to request a return.

To be eligible for a return, your item must meet the conditions established in our Terms & Conditions.

To start a return, use our Contact Form.
View full details

Fortpro

Product Data Sheet

Description

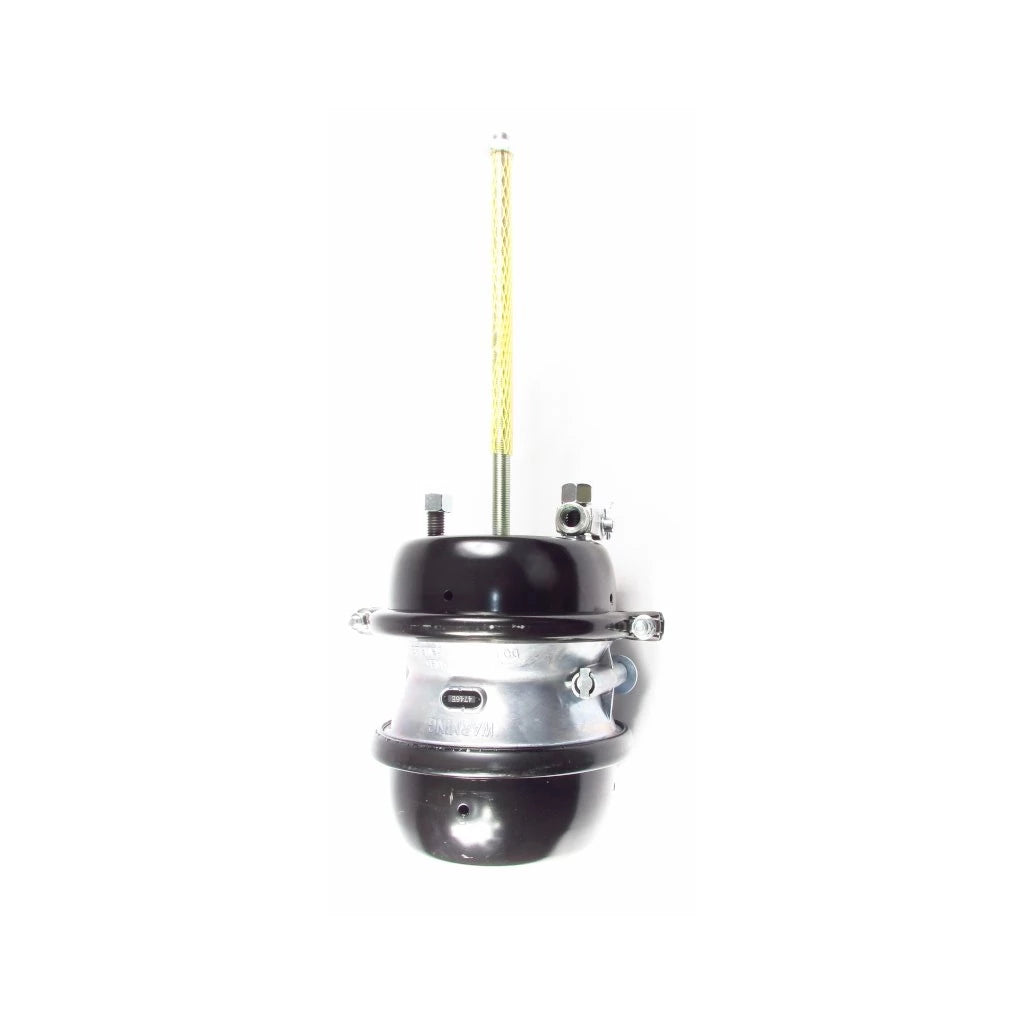

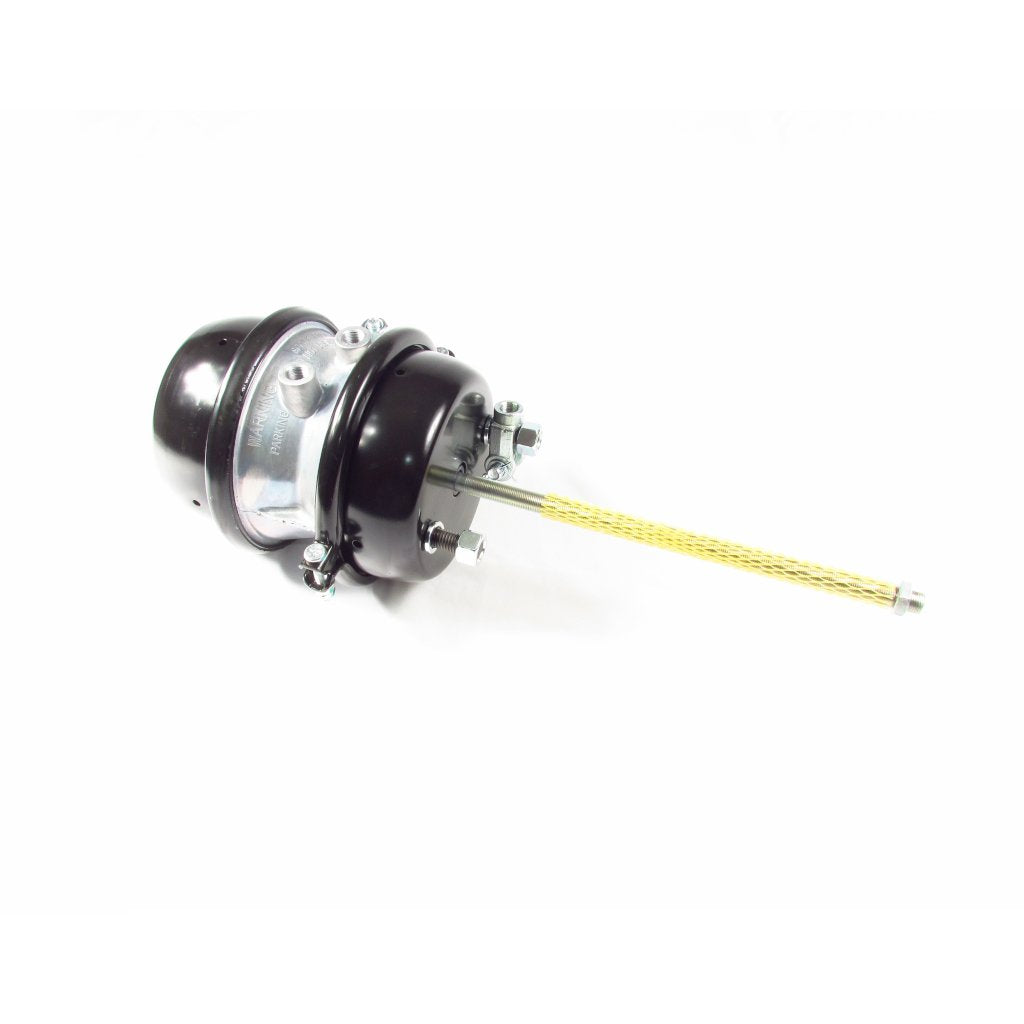

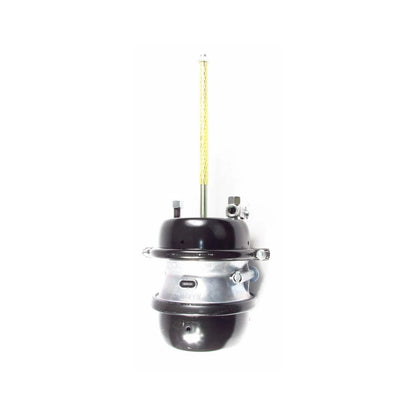

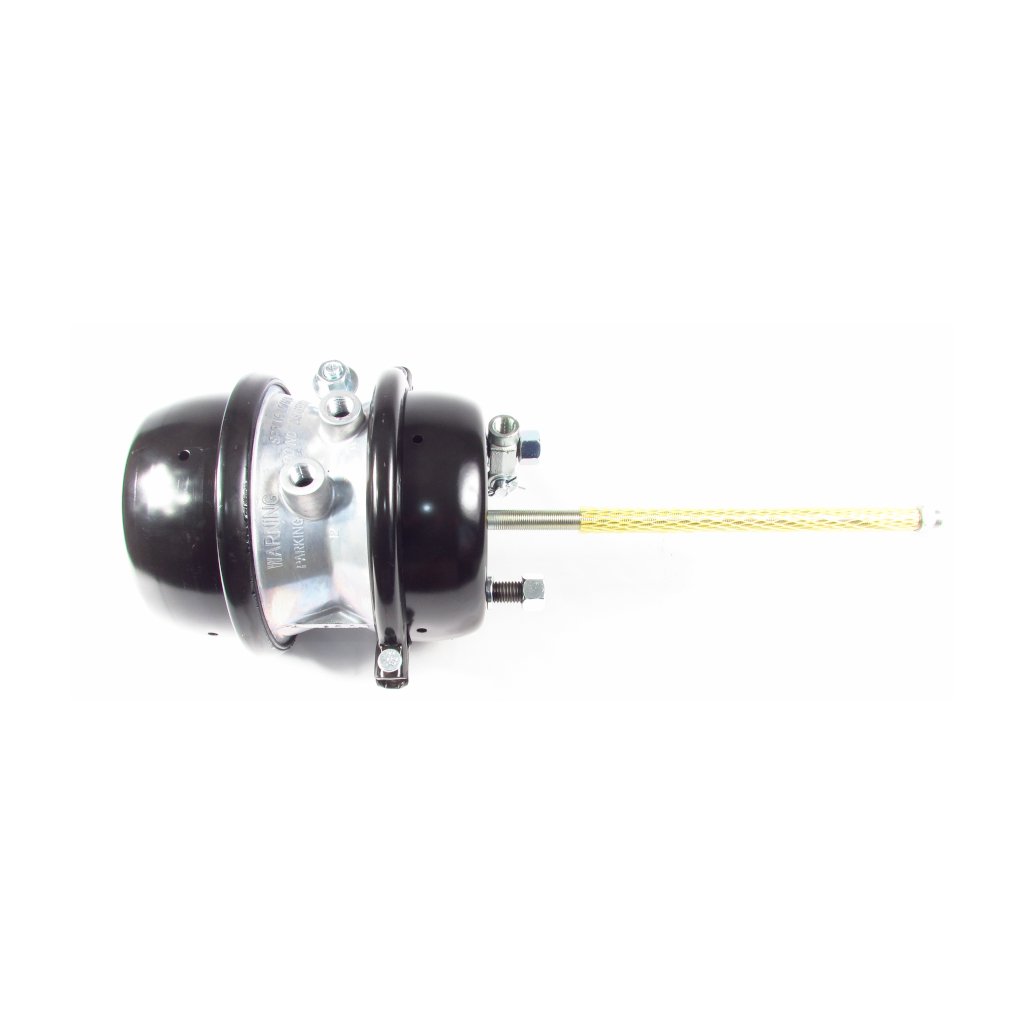

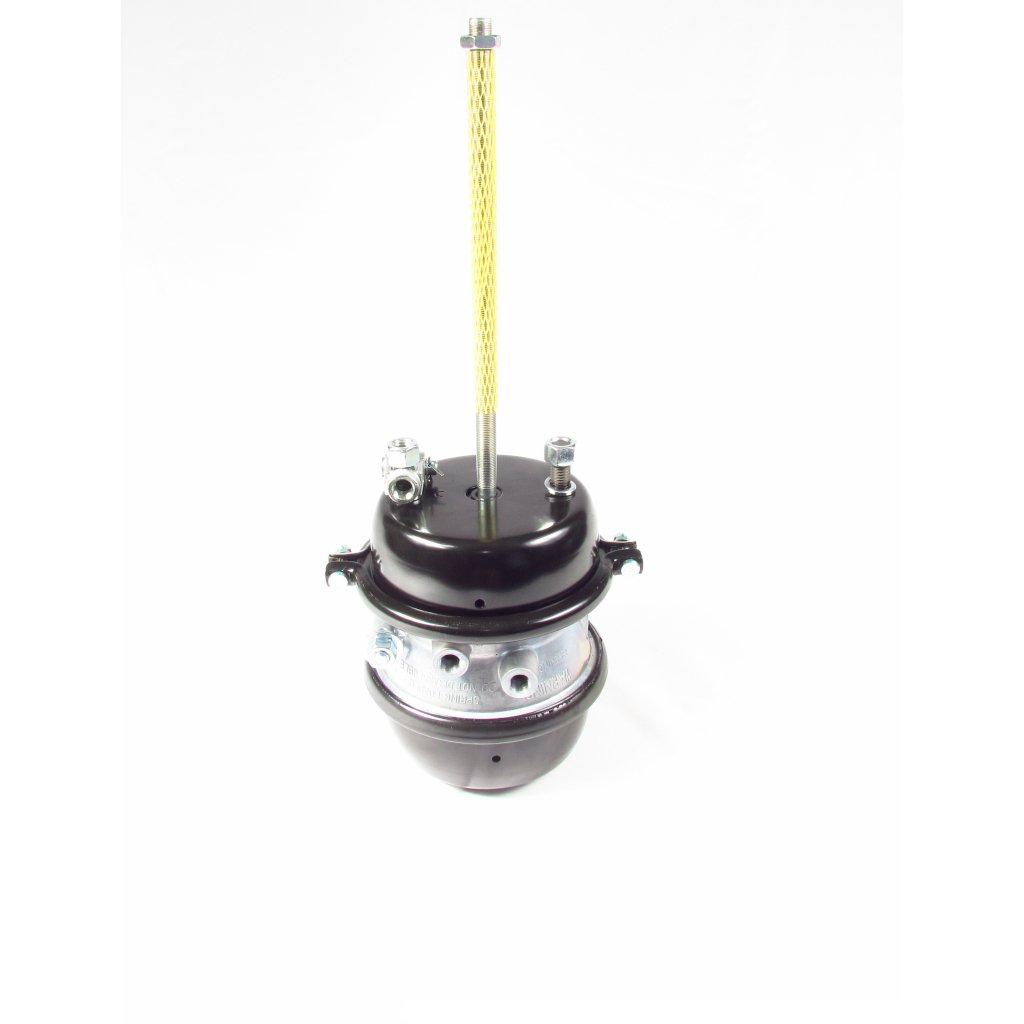

The Fortpro 3030 Sealed Air Spring Brake Chamber with a 2 1/2" stroke and threaded clevis is a reliable and durable solution for heavy-duty and semi-trucks braking systems. The powder-coated finish ensures long-lasting protection against wear and tear, and the 90° air port position with 3/8-18 NPT thread diameter ensures easy installation and maintenance. The threaded clevis allows for easy installation and adjustment of the pushrod, and the 5/8"-11 UNC thread diameter provides a secure fit. With a maximum pressure of 150 PSI and standard stroke size, this brake chamber is a dependable choice for any heavy-duty truck or semi-trailer application. Trust Fortpro for high-quality brake components that deliver reliable performance every time.

Specification

  • Part: Air Brake Chamber
  • Part Type: 30/30
  • Part Series: GoldSeal
  • Air Port Position: 90°
  • Air Port Thread Diameter: 3/8-18 NPT
  • Bracket to End of Spring Housing Length: 9"
  • Clevis: Threaded
  • Finish: Powder Coated
  • Thread Diameter: 5/8"-11 UNC
  • Maximum Pressure: 150 PSI
  • Push Rod Diameter: 5/8-18 UNF
  • Push Rod Length: 13 1/4"
  • Service Chamber Size: 30/30
  • Stroke: Standard
  • Stroke Length: 2 1/2"
  • Stud Distance: 4 3/4"
  • Notes: Sealed

Cross-References

  • Automann: 179SB3030, 179SB3030S
  • Bendix: 165255, K049898, NT3030STD120
  • Dayton: 3030C
  • Euclid: E-BC3030C
  • Freightliner: 3030TS
  • Haldex: GC3030
  • Mack: 19QE441RP1
  • Meritor: R873030C
  • PAI: EM30300-100

Manufacture Standards:

Manufactured under ISO/TS 16949:2009 our brake components meet and exceed international standards.

Our air brake components have been passed the following tests:

  • Salt spray test
  • Leak tightness
  • Endurance test

Dimensions

Dimension Not Available.
