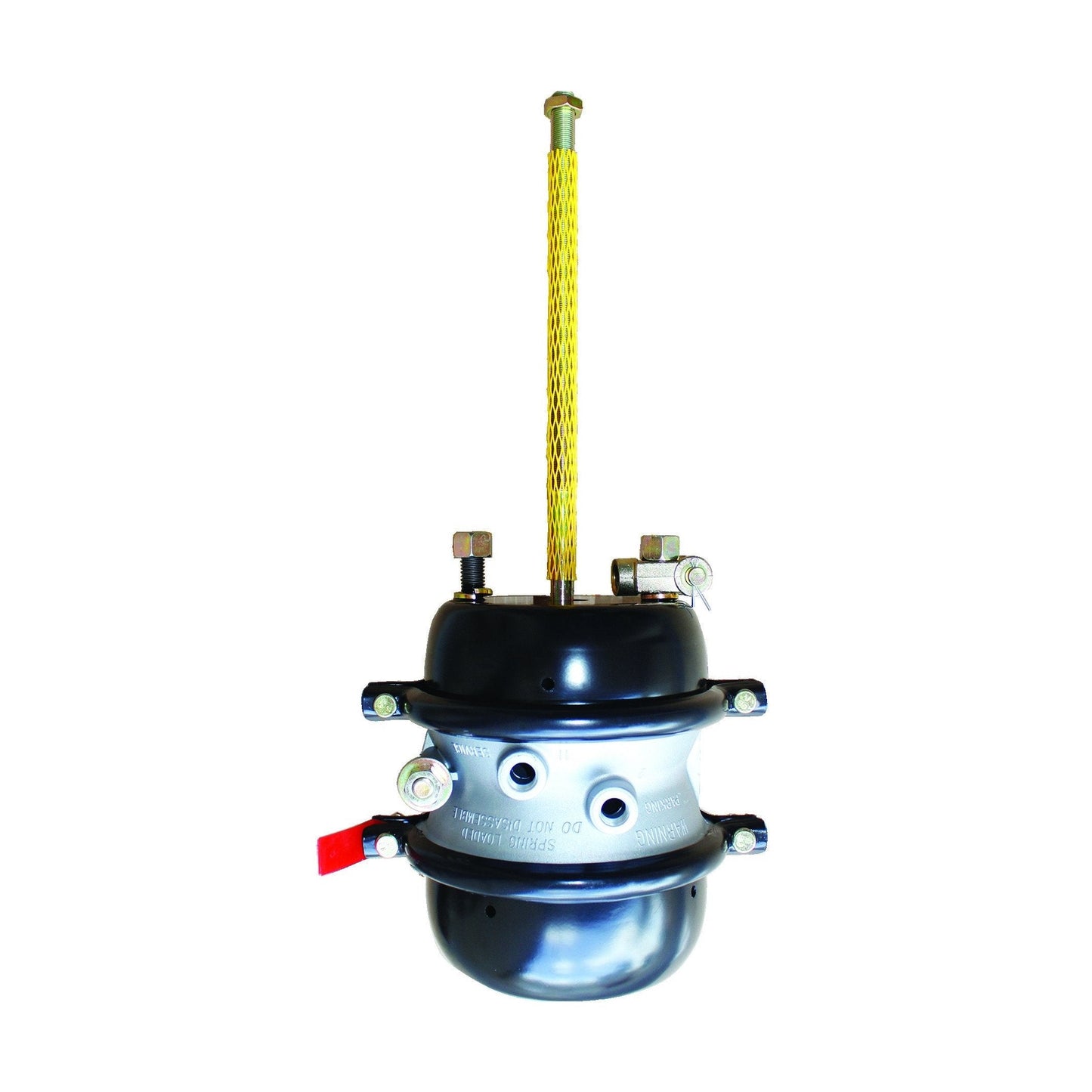

F224756 | SPRING BRAKE CHAMBER TYPE 24/24 SEALED | Replace 2424S

F224756 | SPRING BRAKE CHAMBER TYPE 24/24 SEALED | Replace 2424S

SKU: SKU:F224756

Inventory: More than 50 in Stock

Shipping: Calculated at Checkout

Regular price $ 75.82 USD
Regular price Sale price $ 75.82 USD
Sale Sold out
Shipping calculated at checkout.

Shipping Policy

In order to send your purchase, our company may use different freight companies like USPS, UPS and some 3erd Carrier Services for Oversize orders, this will not affect the final price of your order. We will send you all the information in due time.

For Free Shipping and Freight/Oversize Shipments they are some special term you may check at our Terms & Conditions page.

Return Policy

If for any reason you need to return a purchased item, we have a 30-day return policy, which means you have 30 days after receiving your item to request a return.

To be eligible for a return, your item must meet the conditions established in our Terms & Conditions.

To start a return, use our Contact Form

View full details


Product Data Sheet


Check Specification & Cross-references


  • Part: Air Brake Chamber
  • Part Type: 24/24
  • Part Series: GoldSeal
  • Air Port Position: 0°
  • Air Port Thread Diameter: 3/8-18 NPT
  • Bracket to End of Spring Housing Length: 8.8"
  • Clevis: Threaded
  • Finish: Powder Coated
  • Thread Diameter: 5/8"-18 UNF
  • Push Rod Diameter: 5/8-18 UNF
  • Push Rod Length: 9 5/8"
  • Service Chamber Size: 24/24
  • Stroke Type: Standard
  • Stroke Length: 2 1/4"
  • Stud Distance: 4 3/4"
  • Notes: Sealed


  • Bendix: NT2430STD78
  • Euclid: E-GC2424
  • Fleetpride: FLTC2424SB20
  • Flagg: 2424GC
  • Haldex: GC2424
  • Mack: 19QE410A


Manufacture Standards:

Manufactured under ISO/TS 16949:2009 our brake components meet and exceed international standards.

Our air brake components have been passed the following tests:

  • Salt spray test
  • Leak tightness
  • Endurance test



Dimension Not Available.
