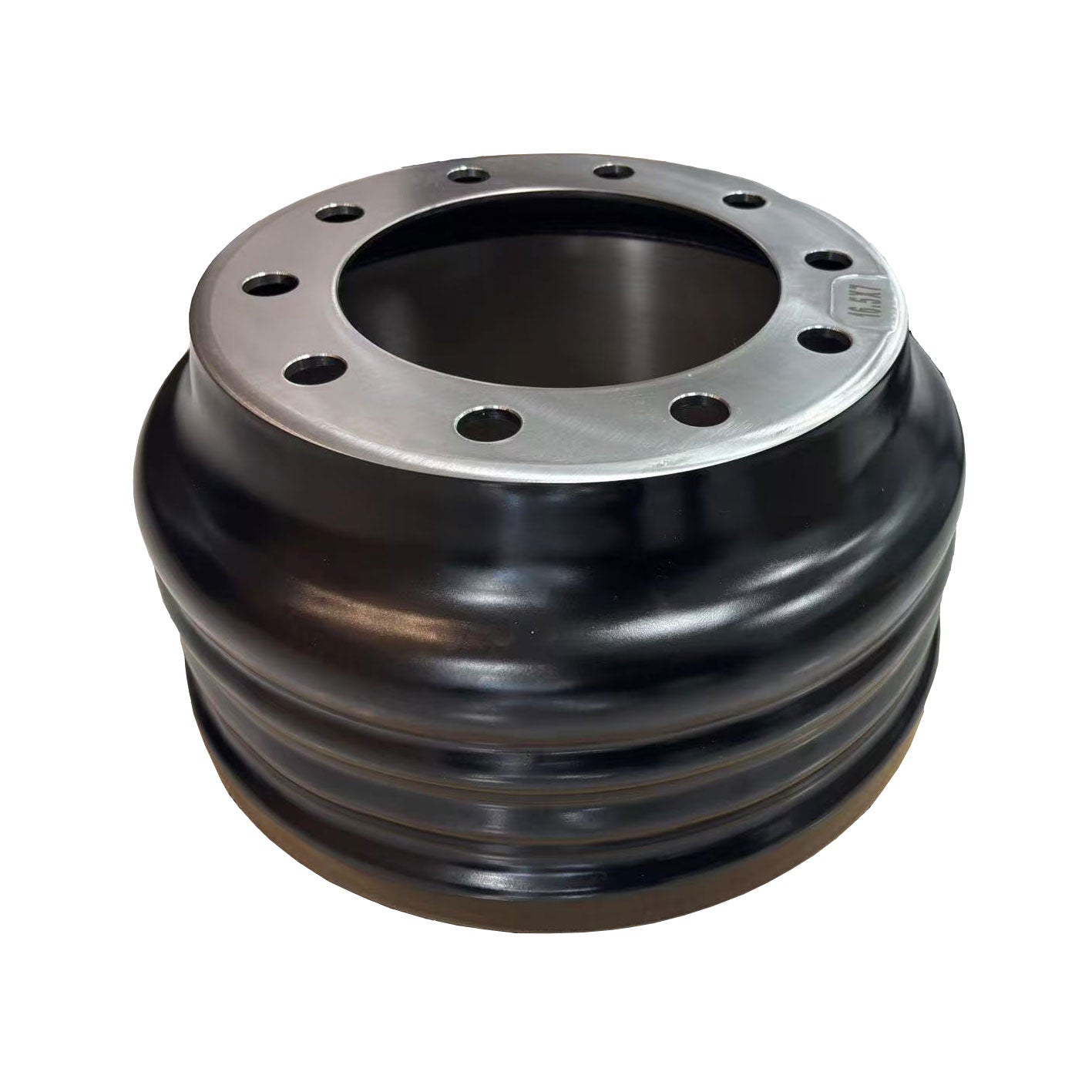

Fortpro Brake Drum 16.5 x 7 in. Lightweight Composite Steel, 20% Ligther - Replaces 3600AX

Fortpro Brake Drum 16.5 x 7 in. Lightweight Composite Steel, 20% Ligther - Replaces 3600AX

SKU: F224990

Out of stock

Shipping: Calculated at Checkout

$ 183.70 USD
$ 183.70 USD
Sale Sold out
Shipping calculated at checkout.

Shipping Policy

In order to send your purchase, our company may use different freight companies like USPS, UPS and some 3erd Carrier Services for Oversize orders, this will not affect the final price of your order. We will send you all the information in due time.

For Free Shipping and Freight/Oversize Shipments they are some special term you may check at our Terms & Conditions page.

Return Policy

If for any reason you need to return a purchased item, we have a 30-day return policy, which means you have 30 days after receiving your item to request a return.

To be eligible for a return, your item must meet the conditions established in our Terms & Conditions.

To start a return, use our Contact Form.
View full details

Fortpro

Product Data Sheet

Description

This brake drum belongs to a new generation of products designed to be lighter and more efficient for heavy-duty vehicles. It features a composite design that uses a high-carbon steel cover and a centrifugally cast gray iron braking surface. The steel cover is internally grooved, ensuring better fusion and adhesion between the two materials. Thanks to their lightweight construction, these drums are 20% lighter than traditional cast iron drums. This translates into a weight savings of 18-22 lbs per drum, which can add up to a total savings of 100-300 lbs per vehicle. The drum is manufactured to meet high standards of quality and performance. It meets and exceeds FMVSS 121 requirements. Additionally, its weight is balanced according to industry-recommended standards. This product is designed to support a gross axle weight rating (GAWR) of up to 23,000 lbs.

Specification

  • OEM Part Number: 80002-018
  • Part Type: Brake Drum
  • Product Line: Brakes
  • Category Name: Brake Drums
  • Application Type: Heavy Duty Trucks, Semi Trucks
  • Pilot Diameter: 8.78 in.
  • Bolt Hole Quantity: 10
  • Bolt Hole Diameter: 0.94 in.
  • Bolt Circle Diameter (BCD): 11.25 in.
  • Mounting Type: Outboard
  • Wheel Type: Disc
  • Brake Shoe Width: 7 in.
  • Brake Diameter (I.D.): 16.50 in.
  • Brake Size (Dia x Width): 16.50 in. x 7 in.
  • Brake Surface Width: 7.87 in.
  • Overall Depth: 10.38 in.
  • Axle Rating (Capacity): 23.000 lb.
  • Material: Carbon Steel
  • Item Quantity: 1
  • Net Weight: 88 lb.
  • Intended Application: Designed for heavy-duty truck and trailer rear axles, featuring an outboard mounting system. It is suitable for light-to-normal duty, over-the-road, tractor, and trailer applications and serves as an alternative to heavier standard brake drums.

Cross-References

  • Durabrake: 40001X
  • Gunite: 3600AX, 9006X
  • KIC: 80002018, 80002-018
  • Mack: 17QJ4116
  • Meritor: 53123537002
  • Motor Wheel: 89996B
  • Stemco: 600084, 89996B, 899968
  • Webb: 96864B

Dimensions

Dimension Not Available.
