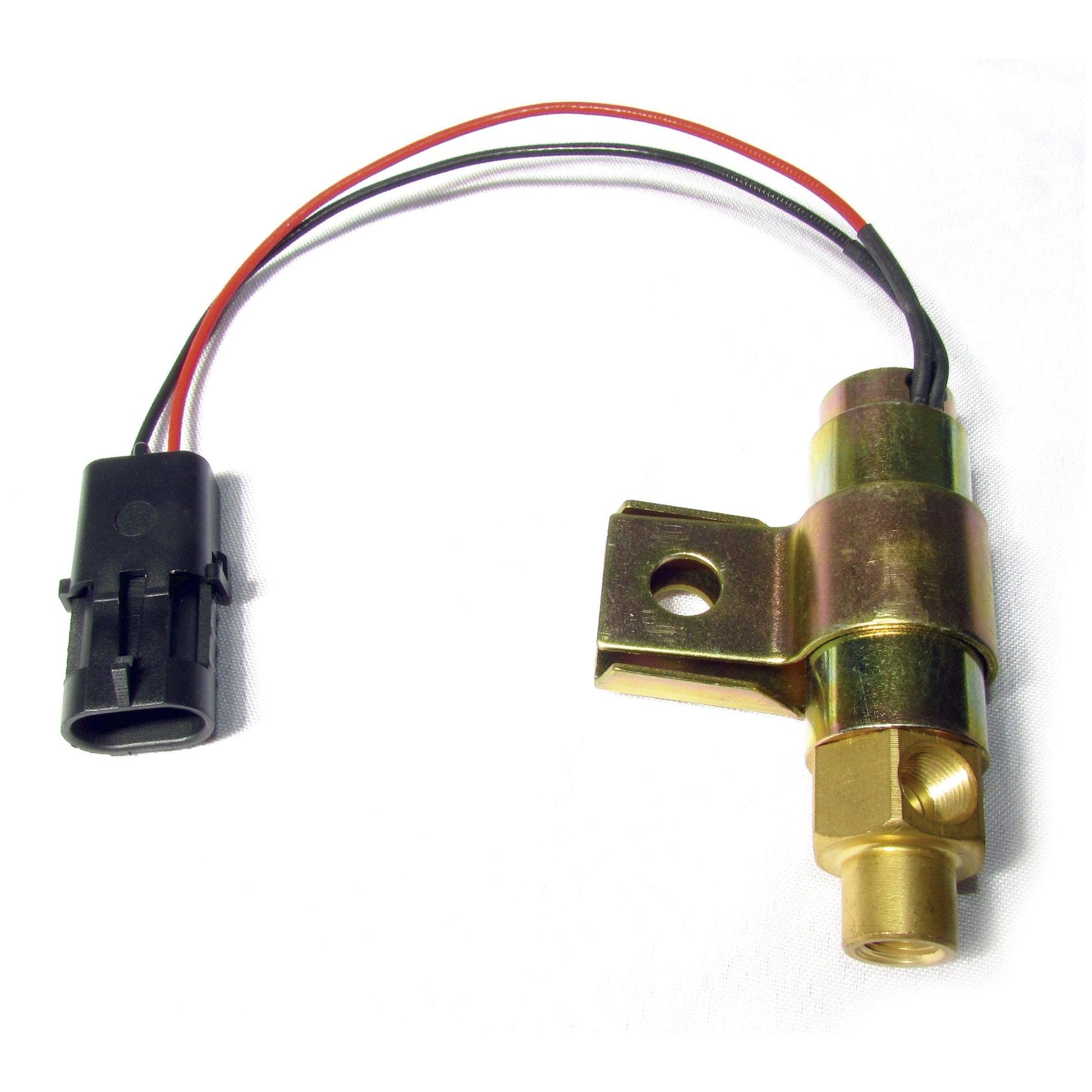

Fan Clutch High Temperature Solenoid Valve For International | Replace 1689785C91

Fan Clutch High Temperature Solenoid Valve For International | Replace 1689785C91

SKU: SKU:F224903

Inventory: More than 50 in Stock

Shipping: Calculated at Checkout

Regular price $ 83.10 USD
Regular price Sale price $ 83.10 USD
Sale Sold out
Shipping calculated at checkout.

Shipping Policy

In order to send your purchase, our company may use different freight companies like USPS, UPS and some 3erd Carrier Services for Oversize orders, this will not affect the final price of your order. We will send you all the information in due time.

For Free Shipping and Freight/Oversize Shipments they are some special term you may check at our Terms & Conditions page.

Return Policy

If for any reason you need to return a purchased item, we have a 30-day return policy, which means you have 30 days after receiving your item to request a return.

To be eligible for a return, your item must meet the conditions established in our Terms & Conditions.

To start a return, use our Contact Form

View full details


Product Data Sheet


Crossref: 1689785C91

Notes: All Ports 1/8” P.T. International Application

What is a Fan Clutch and why you need it?

A fan clutch is a thermostatic engine cooling fan that can freewheel at low temperatures when cooling is not needed, allowing the engine to warm up faster, relieving the unnecessary load on the engine. As temperatures increase, the clutch engages so that the fan is driven by engine power and moves air to cool the engine.

Our International Fan Clutch Solenoid Application

OE-Genuine replacement solenoid valves with connectors meeting OEM specifications and avoid hassle during replacement.


  • Normally Open Inlet Port Size: Female 1/8-27 NPTF
  • Normally Closed Inlet Port Size: Female 1/8-27 NPTF
  • Outlet Port Size: Male 1/8-27 NPTF
  • Voltage: 12 Volts
  • Orifice Size Minimum: .047" minimum
  • Flow Rate @ 120 psi: 2.77 Standard Cubic Feet/min
  • Diode Installed: No
  • Wire Length: 6"
  • Replace: 1689785C91
Remember, for installation you should follow the Freightliner fan clutch solenoid wiring.

How does fan clutch solenoids work?

When the engine is cool or even at normal operating temperature, the fan clutch partially disengages the engine's mechanically driven radiator cooling fan, generally located at the front of the water pump and driven by a belt and pulley connected to the engine's crankshaft. This saves power since the engine does not have to fully drive the fan.

However, if engine temperature rises above the clutch's engagement temperature setting, the fan becomes fully engaged, thus drawing a higher volume of ambient air through the vehicle's radiator, which in turn serves to maintain or lower the engine coolant temperature to an acceptable level.

Mechanical fans are most common in trucks and SUVs, and some RWD cars. This is easier to accomplish because the engine is mounted longitudinally, with the belt accessory components mounted facing the radiator. The fan is mounted on the crankshaft pulley or one of the accessory pulleys (e.g. the water pump pulley) and will spin in between the radiator and the engine, drawing air back through the radiator and blowing it over the engine. Even though the air has been heated by passing through the radiator, it is still much less hot than the engine surface, so the airflow over the engine helps with cooling.

In contrast, in a front-wheel-drive vehicle, the engine is usually mounted laterally, with the crankshaft and typically all the major accessory shafts parallel to the front axle, so as to directly drive the transaxle; a fan mechanically mounted on an accessory pulley would blow sideways and would not face the radiator. This is why electric engine-cooling fans are used virtually universally in front-wheel drive vehicles. The conversion of mechanical energy to electricity and back to mechanical rotary power with a fan motor is less efficient than a direct mechanical connection, but this is more than compensated by greater control of an electric fan through electronic thermostatic controls which can turn the fan completely off when the engine temperature is below the setpoint.


Check Description & Cross-references


Check Description & Specifications


Dimension Not Available.
