F245591 | AIR SPRING | Replace 8713 | 755149

F245591 | AIR SPRING | Replace 8713 | 755149

SKU: SKU:F245591

Inventory: More than 50 in Stock

Shipping: Calculated at Checkout

Regular price $ 164.22 USD
Regular price Sale price $ 164.22 USD
Sale Sold out
Shipping calculated at checkout.

Shipping Policy

In order to send your purchase, our company may use different freight companies like USPS, UPS and some 3erd Carrier Services for Oversize orders, this will not affect the final price of your order. We will send you all the information in due time.

For Free Shipping and Freight/Oversize Shipments they are some special term you may check at our Terms & Conditions page.

Return Policy

If for any reason you need to return a purchased item, we have a 30-day return policy, which means you have 30 days after receiving your item to request a return.

To be eligible for a return, your item must meet the conditions established in our Terms & Conditions.

To start a return, use our Contact Form

View full details


Product Data Sheet

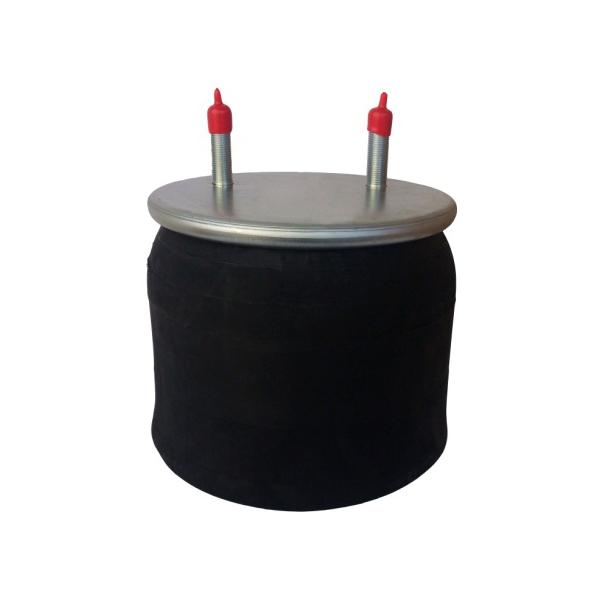

Fortpro Air Spring F245591 is designed to offer exceptional performance in air suspension systems. With robust construction and durable materials, this air spring guarantees resistance and reliability in various conditions of use.


  • Brand: Fortpro
  • Part Type: Air Spring / Air Spring Bag / Suspension Air Spring
  • Vehicle Type: Semi-Trucks, Heavy-Duty Trucks
  • Part OEM: 8713, W013588713, W01-358-8713
  • Position: Primary Truck & Trailer Axle
  • Air Spring Style: 1T Reversible Sleeve
  • Piston Type: Composite

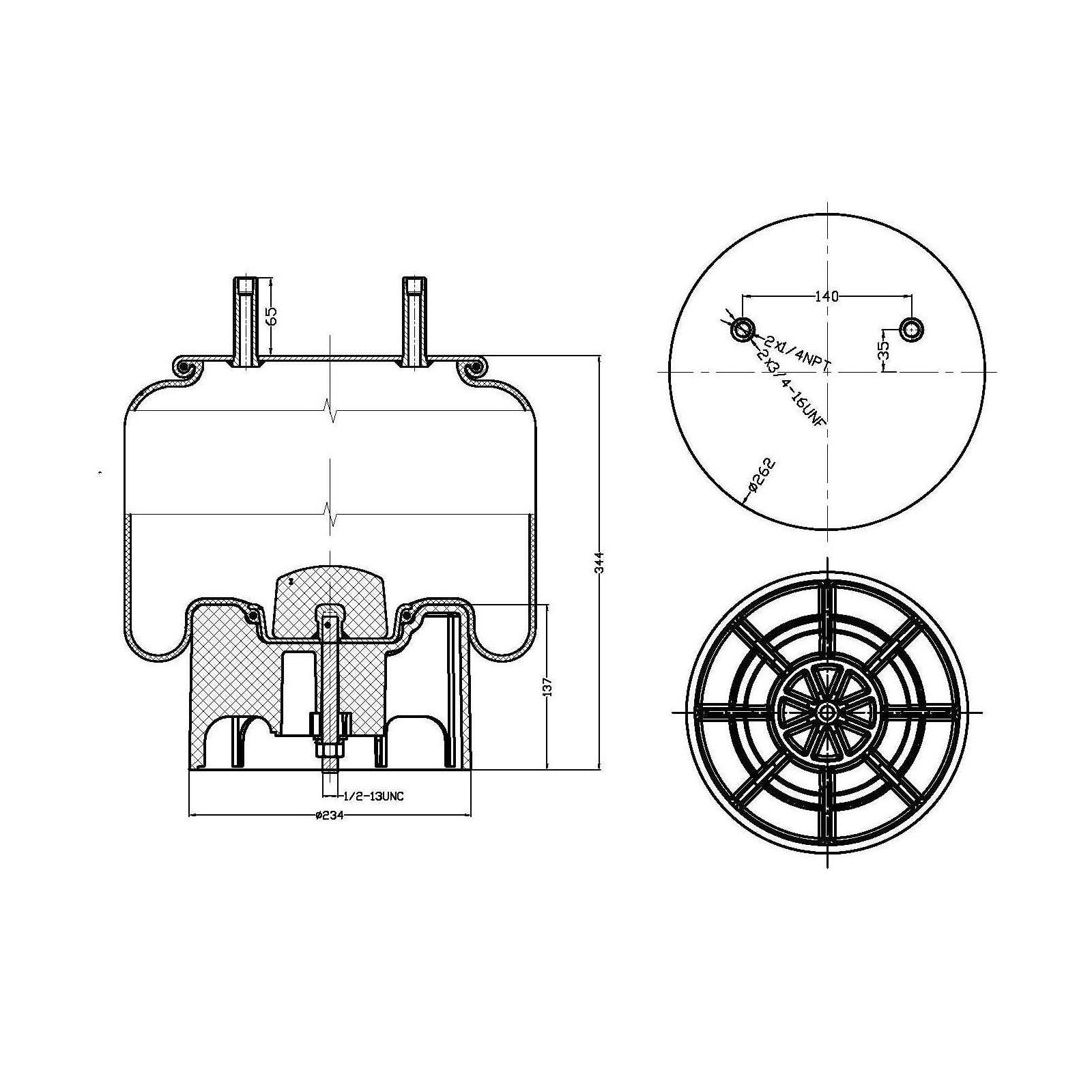

  • Bead Plate Diameter Bottom: 9.22"
  • Bead Plate Diameter Top: 10.38"
  • Collapsed Height: 8.00"
  • Max. Height: 21.50"
  • Part Diameter: 10.62"
  • Piston Height: 5.38"
  • Stud Configuration-Bottom: 1
  • Stud Configuration - Top: 2
  • Weight:: 15.20 lbs
  • Application: Hendrickson Trailer S22948 (Van Traax) Prior to 9/99 - use 9525 piston with bumper spacer
  • VMRS: 016-008-000


  • Automann: 566CT64636, AB1DK25E8713
  • Contitech: 101016S533
  • Dayton Parts Batco: 1R13176, 1R13263, 3528713, S22697, S22948
  • Firestone: 8713, W013588713, W01-358-8713
  • Goodyear: 1R13176, 1R13176
  • Meritor: FS8713, MAF8713


Dimension Not Available.
