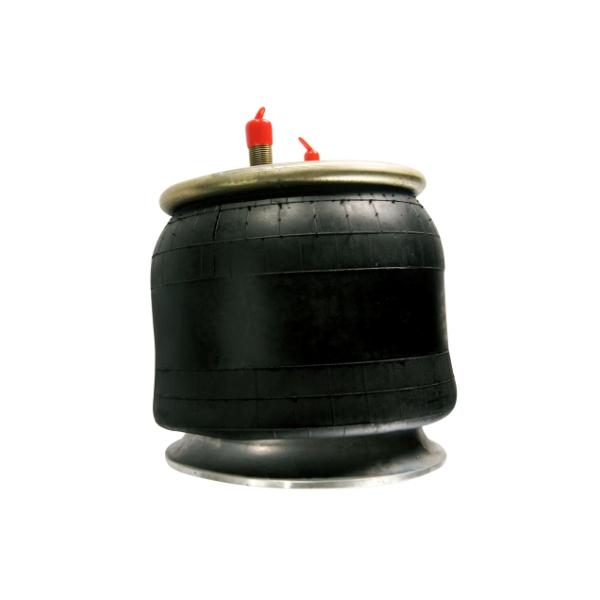

F245590 | AIR SPRING | Replace 8204 | FAS-0606

F245590 | AIR SPRING | Replace 8204 | FAS-0606

SKU: SKU:F245590

Inventory: 43 in stock

Shipping: Calculated at Checkout

Regular price $ 149.28 USD
Regular price Sale price $ 149.28 USD
Sale Sold out
Shipping calculated at checkout.

Shipping Policy

In order to send your purchase, our company may use different freight companies like USPS, UPS and some 3erd Carrier Services for Oversize orders, this will not affect the final price of your order. We will send you all the information in due time.

For Free Shipping and Freight/Oversize Shipments they are some special term you may check at our Terms & Conditions page.

Return Policy

If for any reason you need to return a purchased item, we have a 30-day return policy, which means you have 30 days after receiving your item to request a return.

To be eligible for a return, your item must meet the conditions established in our Terms & Conditions.

To start a return, use our Contact Form

View full details

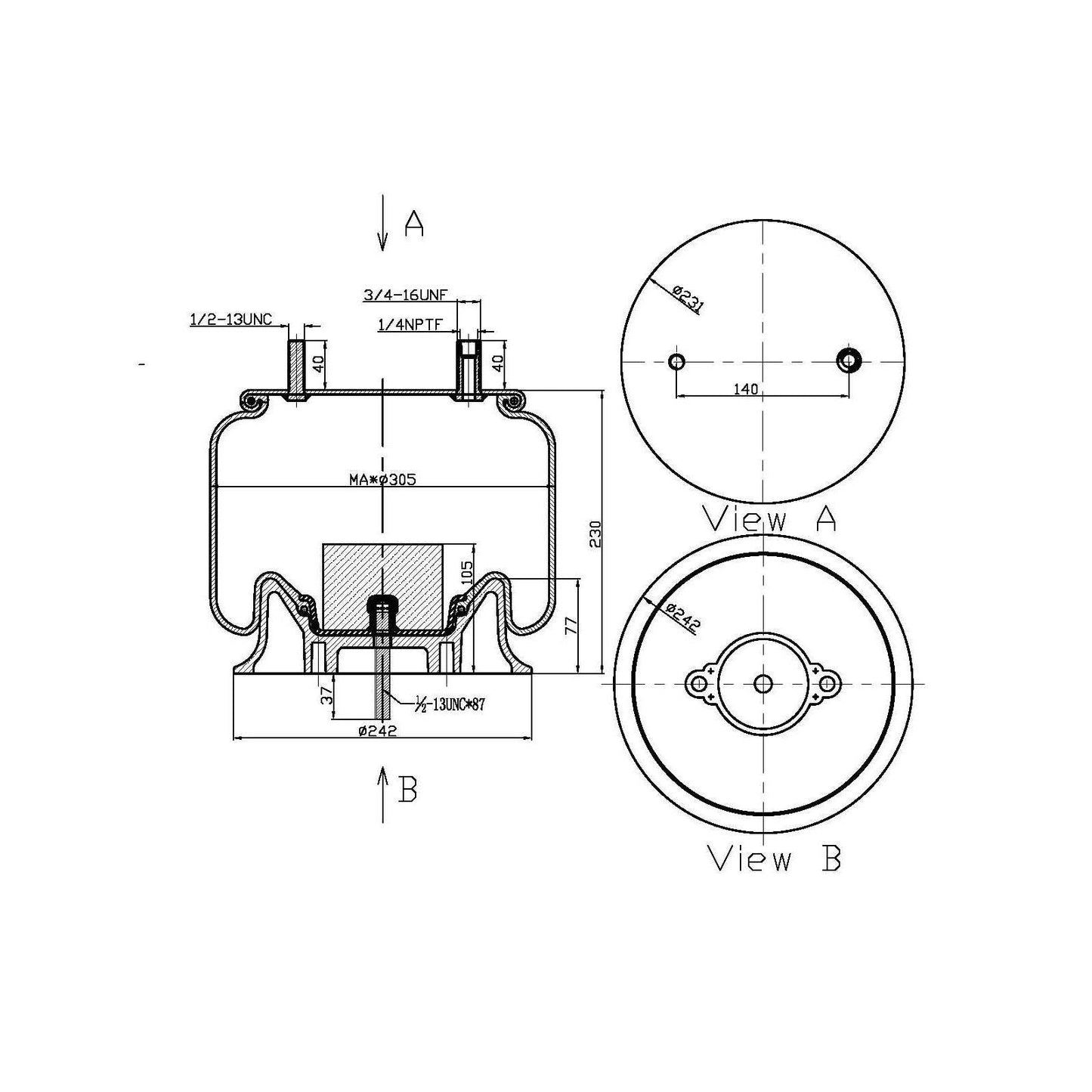

Product Data Sheet


Fortpro Air Spring F245590 offers exceptional load capacity for a wide range of applications, from commercial vehicles to trailers and recreational vehicles (RVs). Its high-quality construction and innovative design ensure superior strength and durability in any condition. Enjoy a smooth and stable ride thanks to the improved shock absorption capabilities of this air spring. Carefully designed and high-strength materials ensure a more comfortable driving experience, reducing vibrations and road shock.


  • Brand: Fortpro
  • Part Type: Air Spring / Air Spring Bag / Suspension Air Spring
  • Vehicle Type: Semi-Trucks, Heavy-Duty Trucks
  • Part OEM: 8204, W013588204, W01-358-8204
  • Position: Primary Truck & Trailer Axle
  • Air Spring Style: 1T Reversible Sleeve
  • Piston Type: Composite
  • Bead Plate Diameter Bottom: 9.50"
  • Bead Plate Diameter Top: 9.00"
  • Min. Height: 4.40"
  • Part Diameter: 10.12"
  • Piston Height: 2.83"
  • Stud Configuration-Bottom: 1
  • Stud Configuration - Top: 2
  • Weight:: 10.43 lbs
  • Application: Holland (Neway) 90557173 (RL196A-12) Holland (Neway) 90557223 Binkley Newlite (NS 190-16)
  • VMRS: 016-008-000


  • Automann: 566CT64456, AB1DK23H8204
  • Contitech: 91012P484
  • Dayton Parts Batco: 1R12508, 3528204
  • Firestone: 8204, W013588204, W01-358-8204
  • Goodyear: 1R12508, 1R12522, 1R12522
  • Meritor: FS8204, MAF8204


Dimension Not Available.
