F276095 | YOKE | Replace 5-28-627

F276095 | YOKE | Replace 5-28-627

SKU: F276095

Inventory: Low stock: 1 left

Shipping: Calculated at Checkout

$ 85.14 USD
$ 85.14 USD
Sale Sold out
Shipping calculated at checkout.

Shipping Policy

In order to send your purchase, our company may use different freight companies like USPS, UPS and some 3erd Carrier Services for Oversize orders, this will not affect the final price of your order. We will send you all the information in due time.

For Free Shipping and Freight/Oversize Shipments they are some special term you may check at our Terms & Conditions page.

Return Policy

If for any reason you need to return a purchased item, we have a 30-day return policy, which means you have 30 days after receiving your item to request a return.

To be eligible for a return, your item must meet the conditions established in our Terms & Conditions.

To start a return, use our Contact Form.
View full details

Fortpro

Product Data Sheet

Description

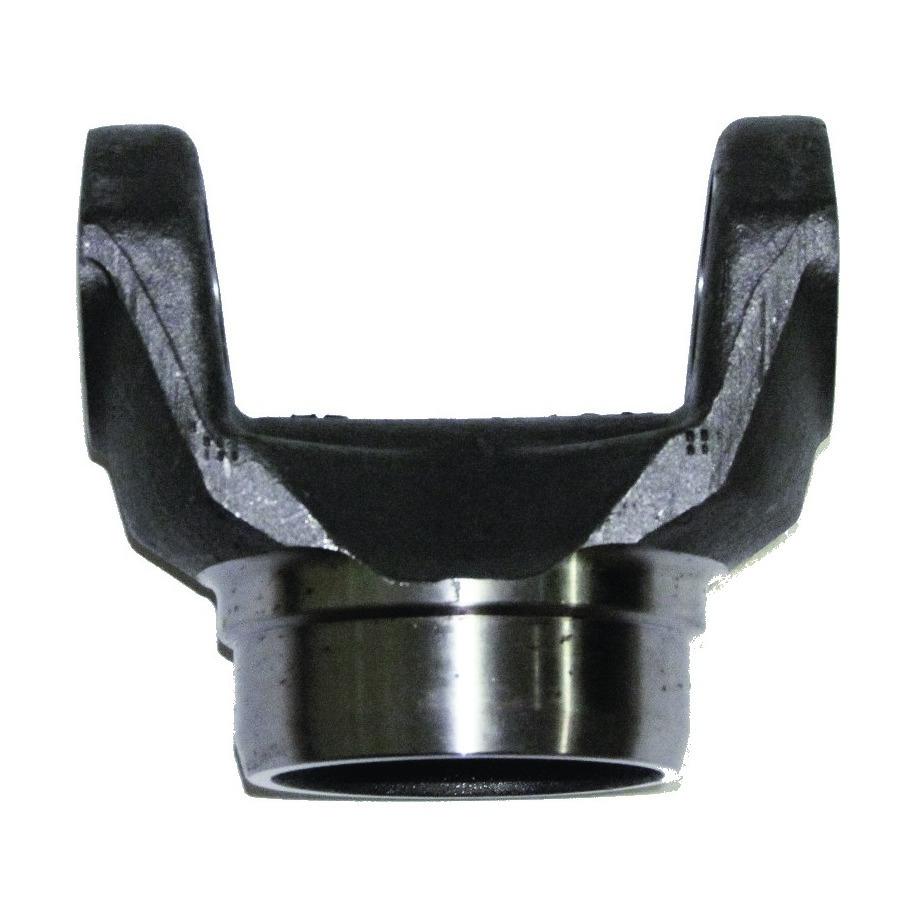

Discover the robustness of the Fortpro Drive Shaft Tube Weld Yoke 1610 Series, ideal to replace the 5-28-627 model. Built to withstand the rigorous demands of your fleet, this weld-on yoke offers a secure, durable connection between driveshaft and tube. Manufactured from premium materials, it guarantees optimal performance and long life, reducing downtime and maintenance costs.

Specification

  • Brand: Fortpro
  • Vehicle Type: Semi-Trucks / Heavy Trucks
  • Product Department: Transmission
  • Product category : Driveline
  • Part Type: Drive Shaft Tube Weld Yoke / Tube Yoke w/ Outside Snap Ring
  • OEM Reference #: 5-28-627
  • Series: 1610
  • Joint Angle #1: 35 Degrees
  • Joint Angle #2: 27 Degrees
  • Tube Diameter and Wall Size: 3.500 in. x .134 in
  • Butt Diameter: 3.243 in.
  • C/L To End Hub: 3.000 in.
  • Yoke Outside Diameter (O.D.): 5.312 in.
  • Yoke Bearing Dimension: 1.875 in.
  • Material: Steel
  • Applications:
    Compatible with Drive Shaft requiring 1610 series specifications and with vehicle models that originally use part 5-28-627.

Cross-References

  • Dana Spicer: 5-28-627
  • Mack: 38MU3203P1
  • PAI: 960132.

Dimensions

Dimension Not Available.
