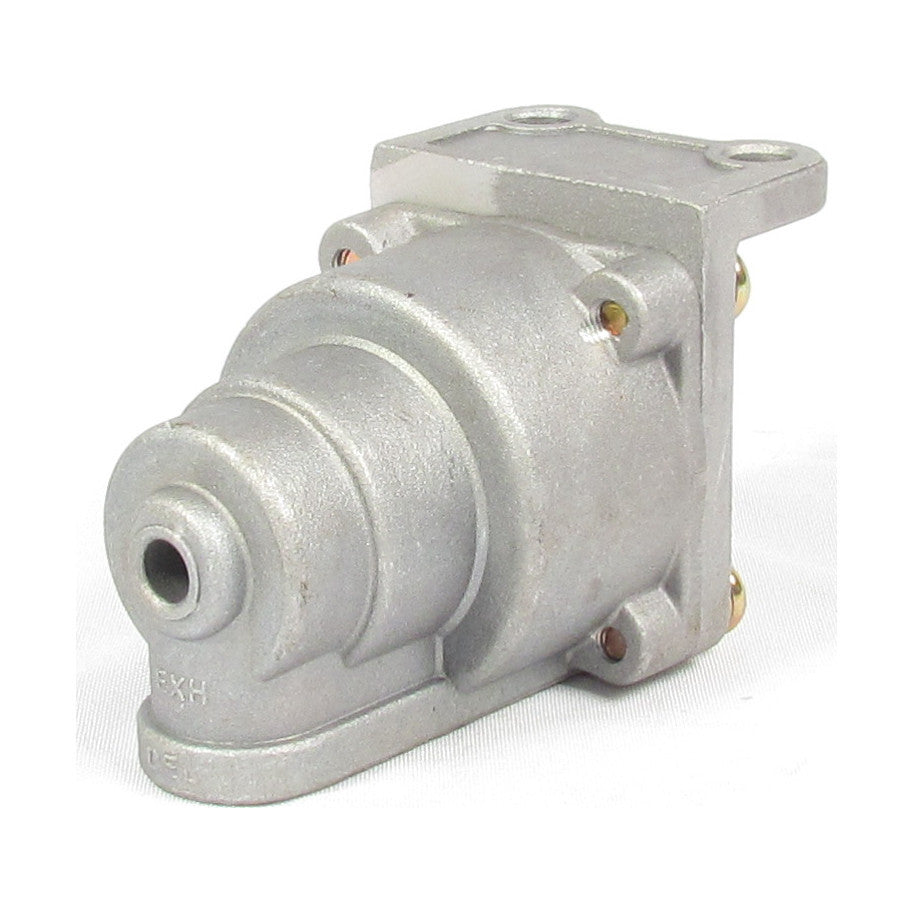

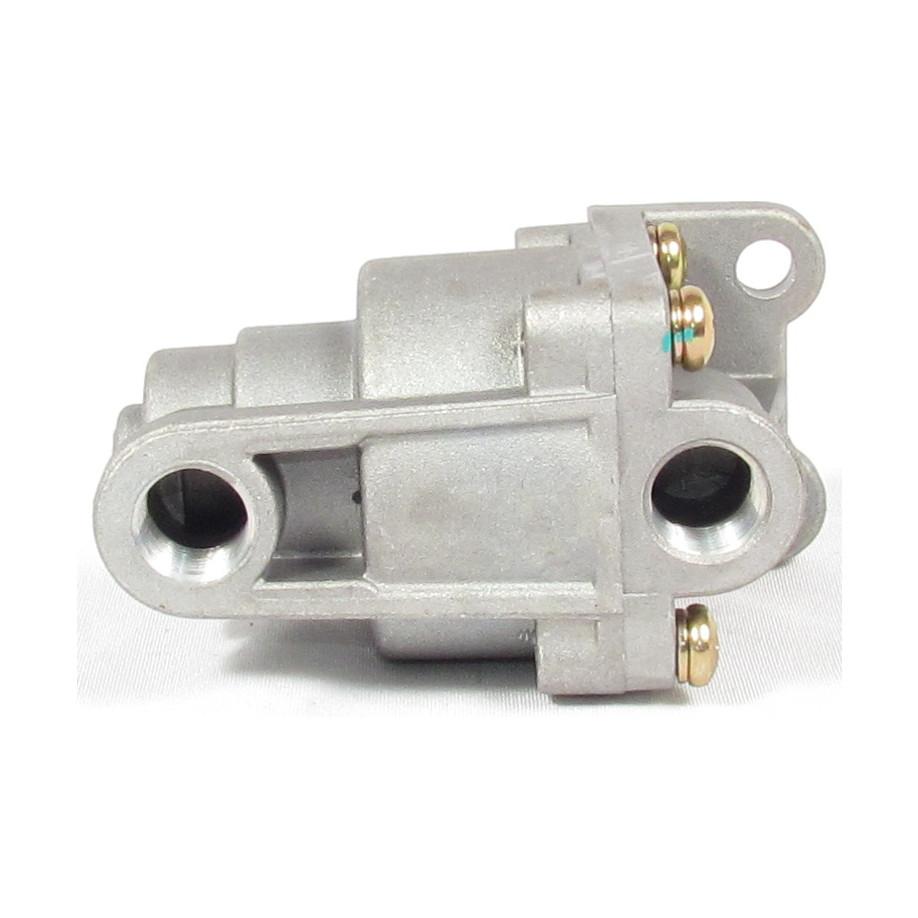

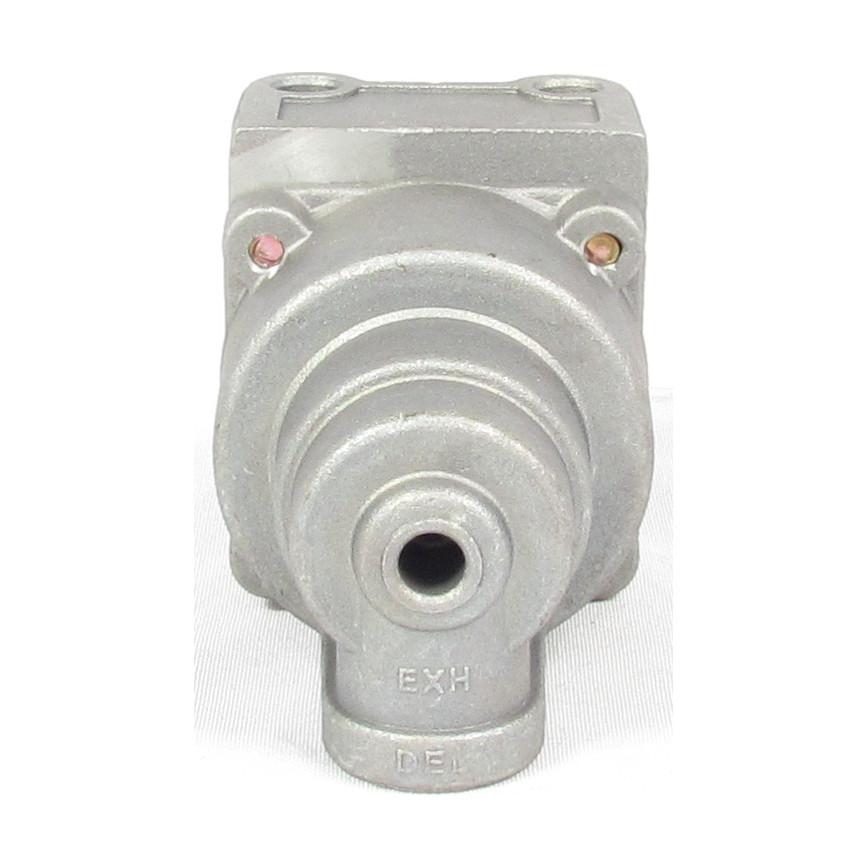

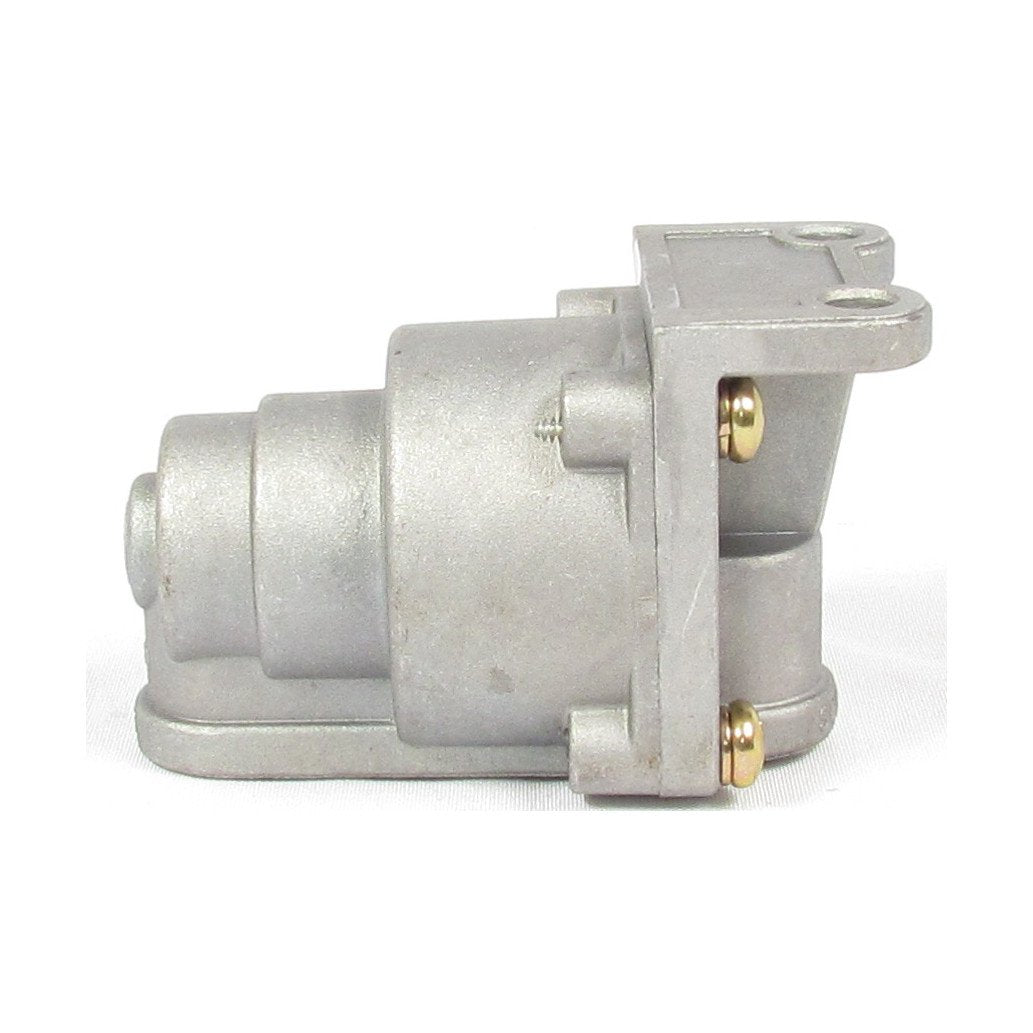

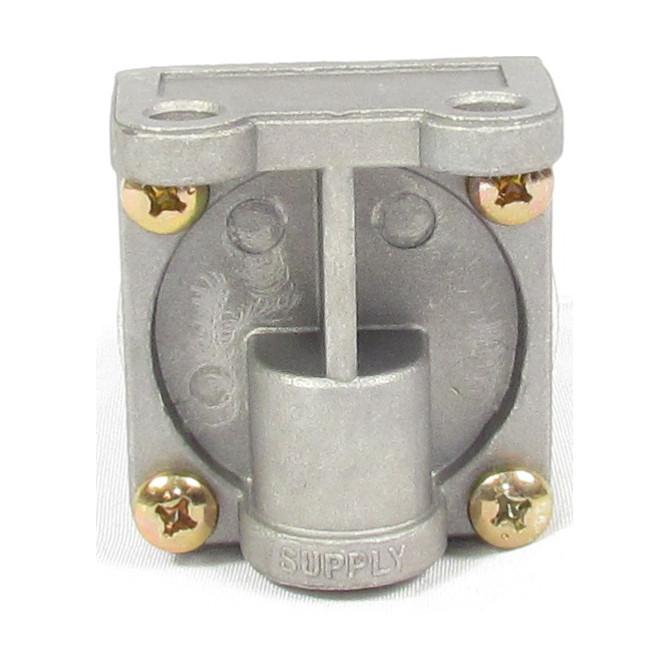

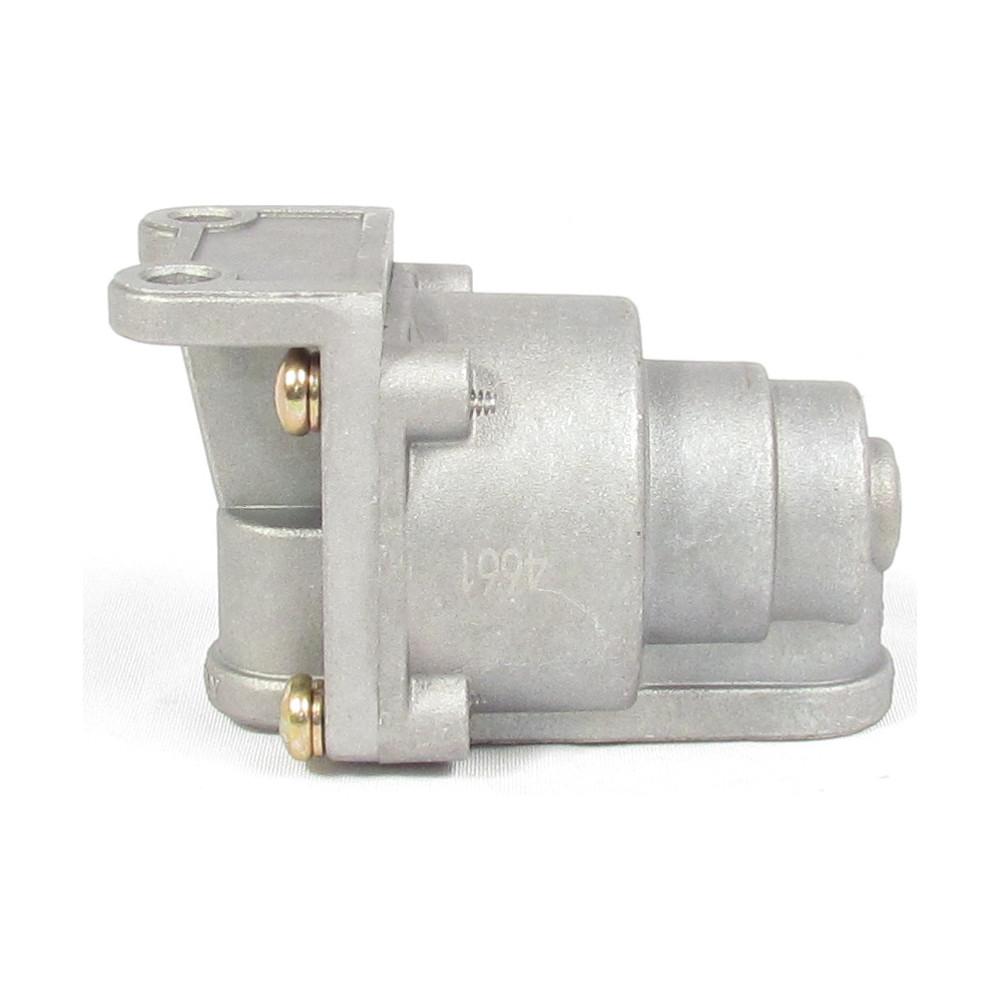

F224661 | FRONT AXLE VALVE | Replace 289144 | 20QE3166R | LAV-3625

F224661 | FRONT AXLE VALVE | Replace 289144 | 20QE3166R | LAV-3625

SKU: SKU:F224661

Inventory: 45 in stock

Shipping: Calculated at Checkout

Regular price $ 38.44 USD
Regular price Sale price $ 38.44 USD
Sale Sold out
Shipping calculated at checkout.

Shipping Policy

In order to send your purchase, our company may use different freight companies like USPS, UPS and some 3erd Carrier Services for Oversize orders, this will not affect the final price of your order. We will send you all the information in due time.

For Free Shipping and Freight/Oversize Shipments they are some special term you may check at our Terms & Conditions page.

Return Policy

If for any reason you need to return a purchased item, we have a 30-day return policy, which means you have 30 days after receiving your item to request a return.

To be eligible for a return, your item must meet the conditions established in our Terms & Conditions.

To start a return, use our Contact Form

View full details

Fortpro

Product Data Sheet

Description

Check Specification & Cross-references

Specification

  • Part OEM: Bendix 289144
  • Part: LQ-4 Front Axle Valve
  • Supply Port: (1) 3/8” P.T.
  • Delivery Port: (1) 3/8” P.T.
  • Equalizing Pressure: 60 PSI
  • Nominal Hold Off Pressure: 4 PSI
  • Material: Die Cast Zinc
  • Recommended Use: Front / Steer Axle
  • Notes: The LQ-4 Front Axle Valve is used on the front or steering axle of a vehicle to limit the brake application pressure to the actuators during normal service braking

Cross-References

  • Automann: 170289144
  • Bendix: 289144, 289144N, BX289144N
  • Euclid: EBN289144N
  • Haldex: 289144X, 289144RX
  • Mack: 20QE3166R
  • Meritor: R955289144N
  • Navistar-International: BX289144N
  • PAI: EM36250

Dimensions

Dimension Not Available.
