F286691 | E10219 WHEEL STUD 13-1550
FortPro

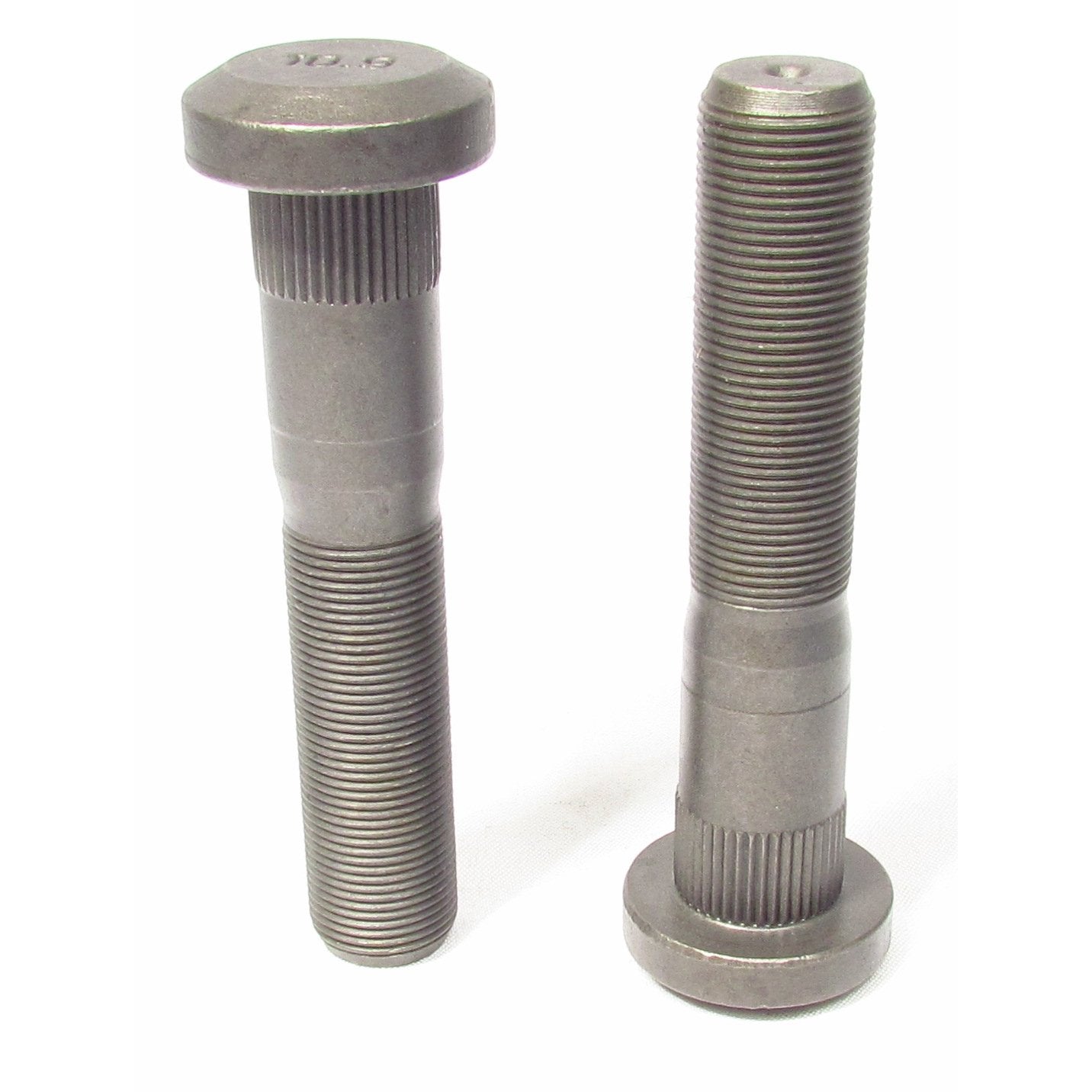

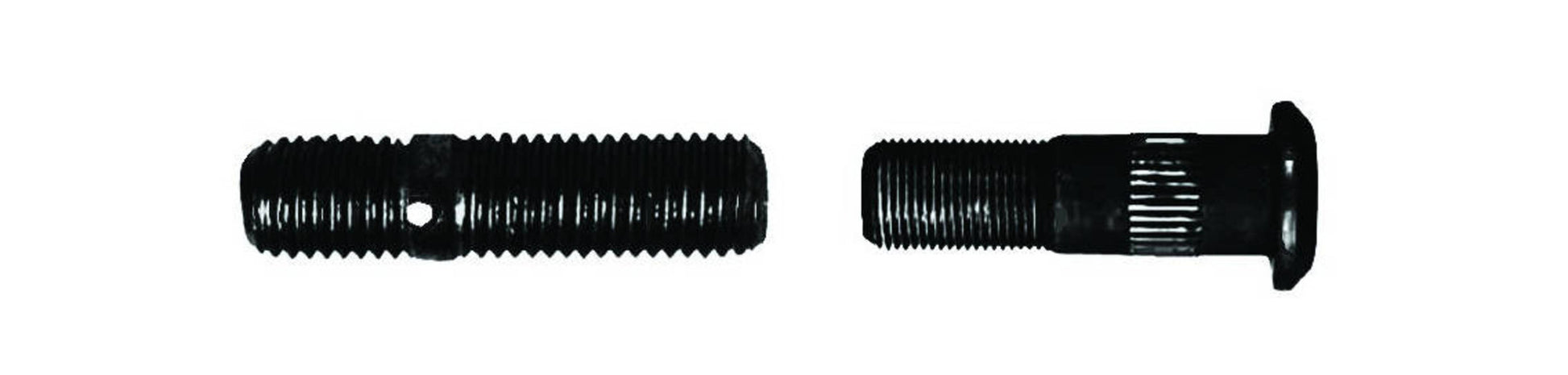

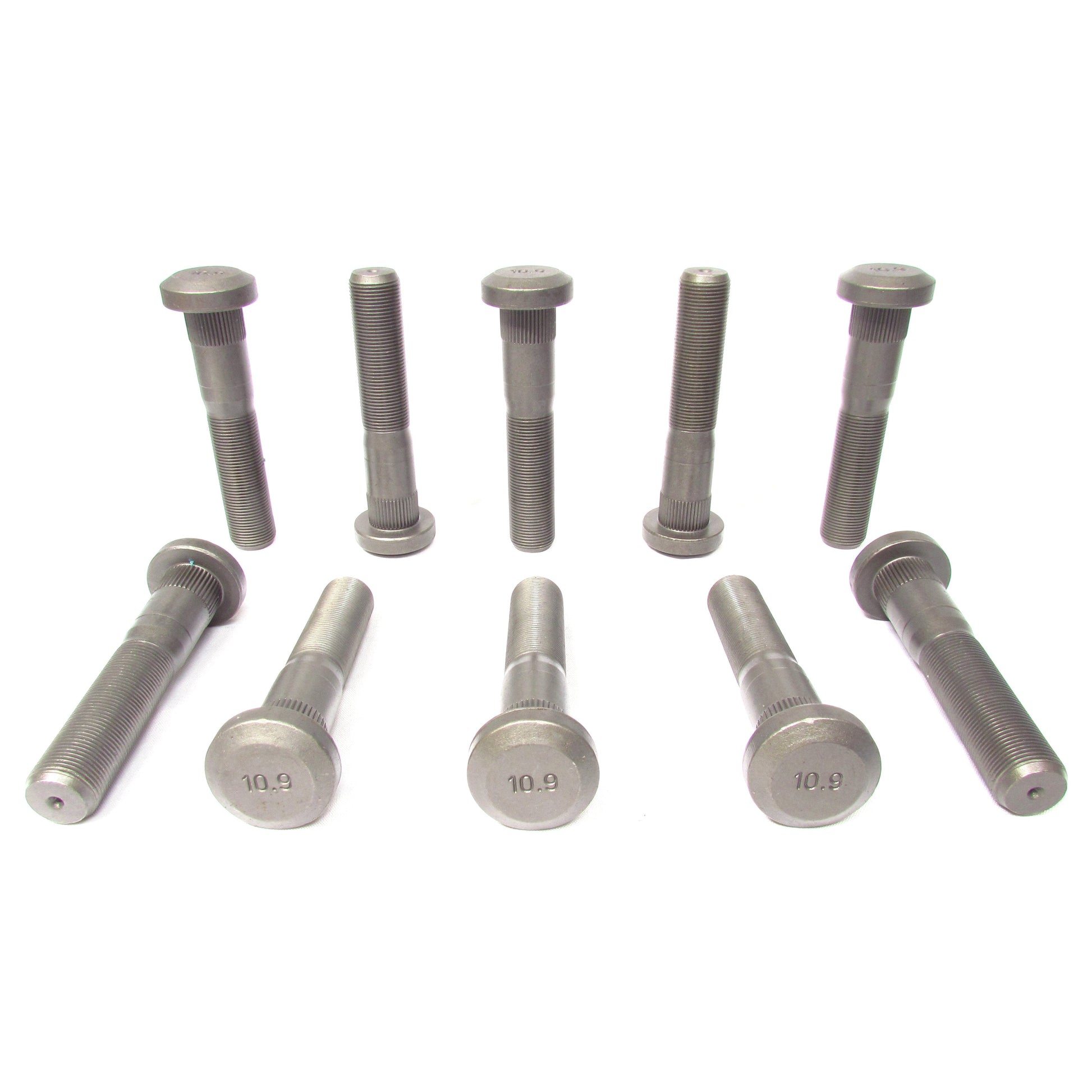

Fortpro M22 x 1.5 Metric Serrated Drive Wheel Stud F286691 is designed to provide a secure and reliable hold on demanding automotive applications. These wheel studs are constructed of the highest quality materials and meet exacting standards for strength and durability.
Specifications:
- Brand: Fortpro
- Part Type: Wheel Stud / Metric Serrated Drive Wheel Stud
- Vehicle Type: Semi-Trucks, Heavy-Duty Trucks
- Part OEM: E10219, E-10219
- DIN / ISO Grade: 10.9
- Type: Headed
- Metric Thread Size: M22 X 1.5-6g
- Body Length (E): 1.55"
- Body Diameter (G): 0.910"
- Length from Under Head (B): 4 15/32"
- Head Diameter (F): 1.50"
- Head Style: Round
- Head Thickness: 0.38"
- Thread (A): M22 x 1.5
- Thread Diameter (H): 22.0 mm
- Wheel End Thread Direction: RH (Right Hand)
- Threads per Inch: 1.5 per mm
- Thread Length (C): 2.57"
- Serration: Serrated
- Serration Length (D): 0.50"
- Serration Diameter: 0.937"
- VMRS: 018-003-009
- Item Package Quantity: 10
- Notes: Grade 10.9 is the metric equivalent of Grade 8
CrossReference:
- Automann: 2016141, 2016141P2
