• E8981 WHEEL STUD 13-1567
1 3

Fortpro

F286690 | E8981 WHEEL STUD 13-1567

F286690 | E8981 WHEEL STUD 13-1567

SKU: F286690

Inventory: More than 50 in Stock

Shipping: Calculated at Checkout

$ 8.55 USD
$ 8.55 USD
Sale Sold out
Shipping calculated at checkout.

Shipping Policy

In order to send your purchase, our company may use different freight companies like USPS, UPS and some 3erd Carrier Services for Oversize orders, this will not affect the final price of your order. We will send you all the information in due time.

For Free Shipping and Freight/Oversize Shipments they are some special term you may check at our Terms & Conditions page.

Return Policy

If for any reason you need to return a purchased item, we have a 30-day return policy, which means you have 30 days after receiving your item to request a return.

To be eligible for a return, your item must meet the conditions established in our Terms & Conditions.

To start a return, use our Contact Form.
View full details

Fortpro

Product Data Sheet

Description

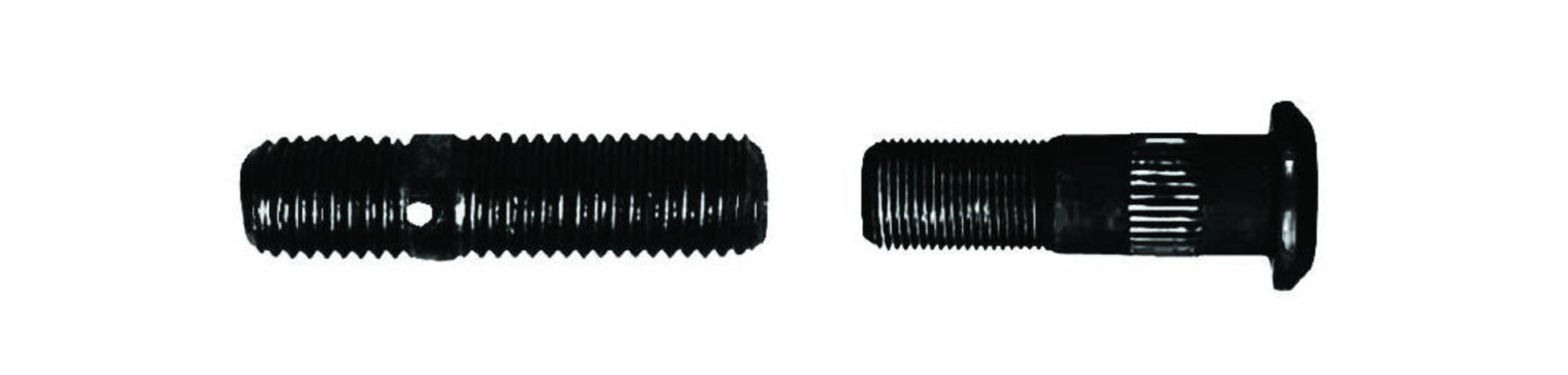

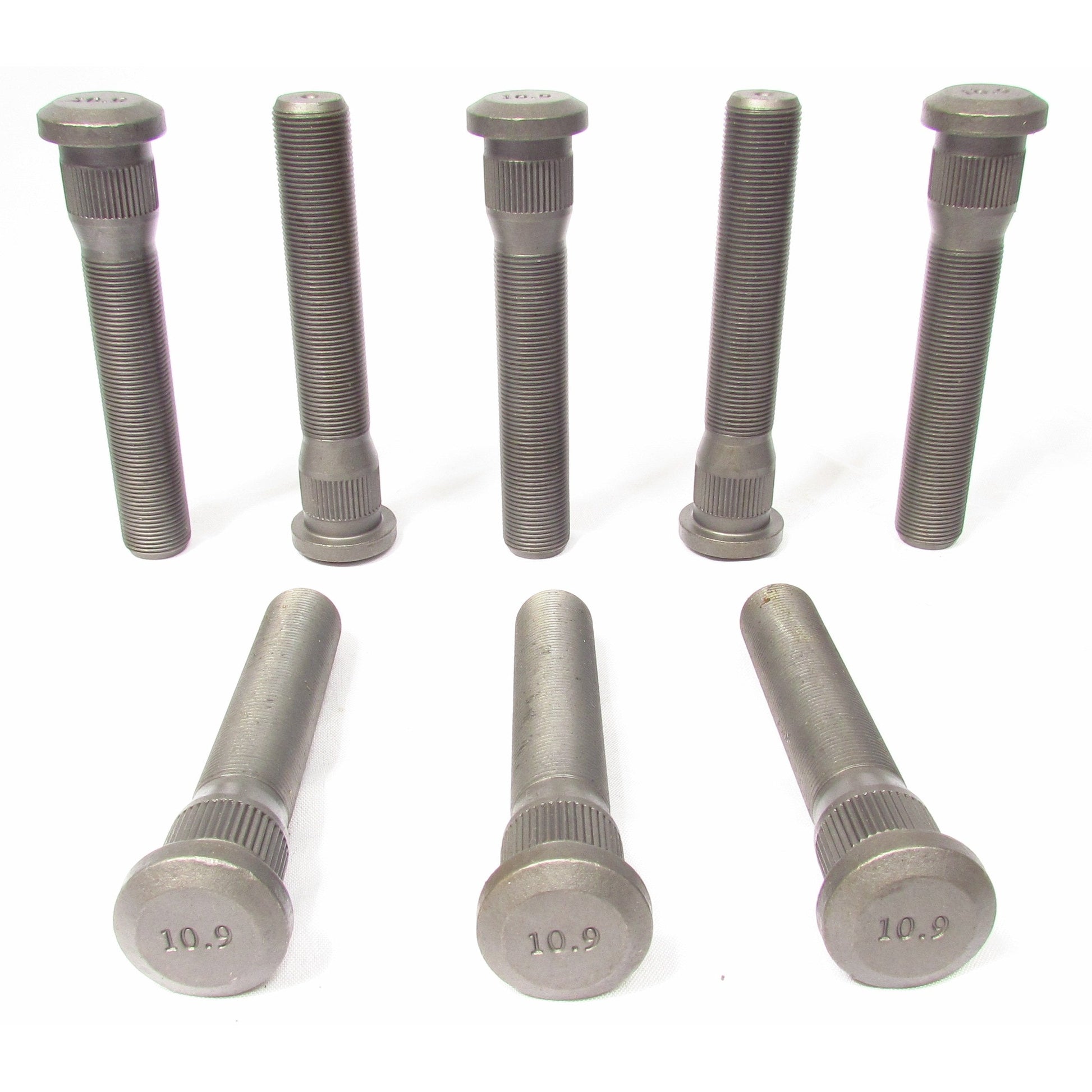

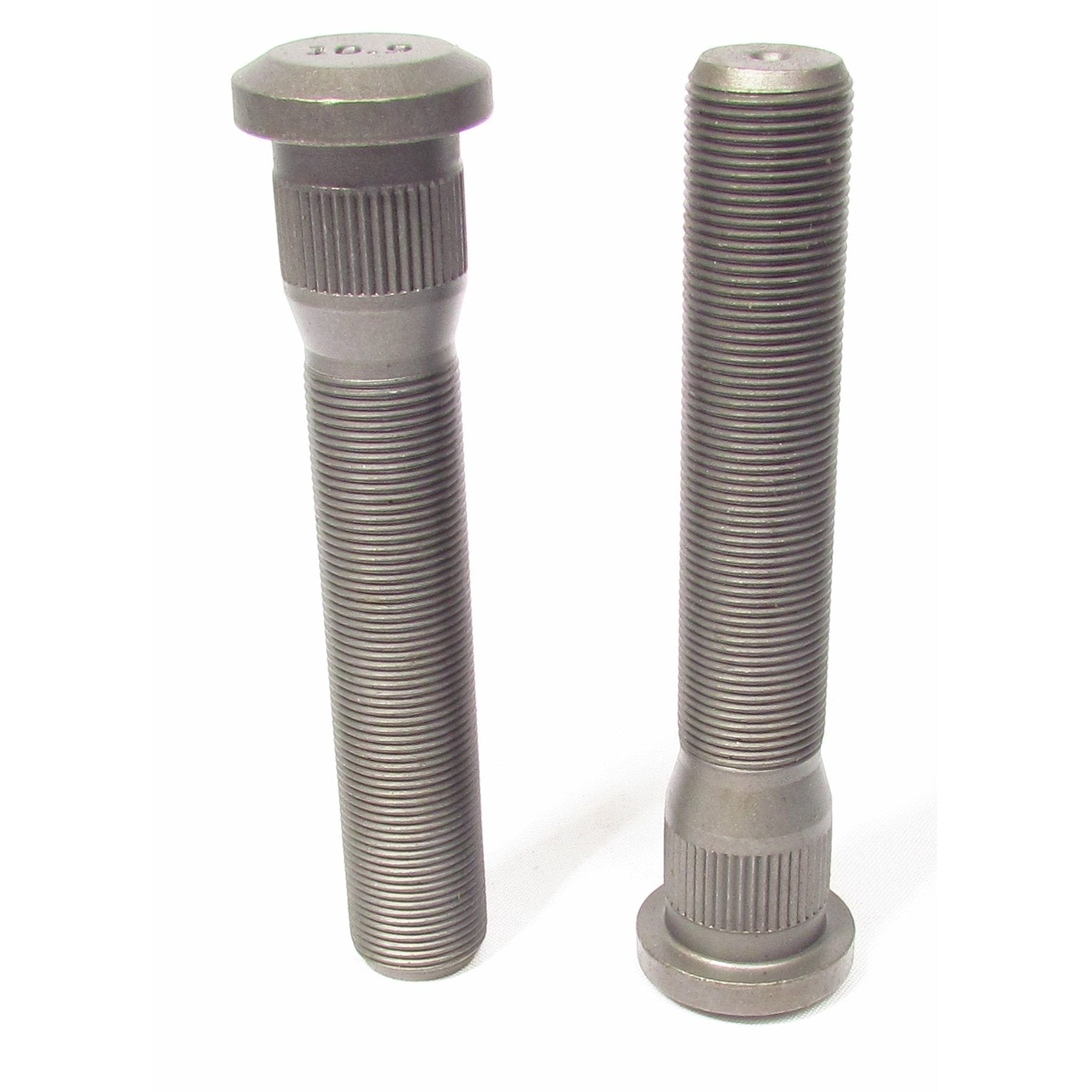

Fortpro M22 x 1.5 Metric Serrated Drive Wheel Stud F286690 are the ideal choice for those seeking a secure hold, long-lasting strength, and precise fit in automotive wheel applications. With its splined design, high-strength steel construction, and precise metric thread, these wheel studs offer exceptional reliability and performance in all driving conditions.

Specification

  • Brand: Fortpro
  • Part Type: Wheel Stud / Metric Serrated Drive Wheel Stud
  • Vehicle Type: Semi-Trucks, Heavy-Duty Trucks
  • Part OEM: E8981, E-8981
  • DIN / ISO Grade: 10.9
  • Type: Headed
  • Metric Thread Size: M22 X 1.5-6g
  • Body Length (E): 7/8”
  • Body Diameter (G): 0.975"
  • Length from Under Head (B): 4"
  • Head Diameter (F): 1.31"
  • Head Style: Round
  • Head Thickness: 0.31"
  • Thread (A): M22 x 1.5
  • Thread Diameter (H): 22.0 mm
  • Wheel End Thread Direction: RH (Right Hand)
  • Threads per Inch: 1.5 per mm
  • Thread Length (C): 2 29/32”
  • Serration: Serrated
  • Serration Length (D): 0.50"
  • Serration Diameter: 1.015"
  • VMRS: 018-003-009
  • Item Package Quantity: 10
  • Notes: Grade 10.9 is the metric equivalent of Grade 8

Cross-References

  • Automann: 2016152P2, 2016152P5, 2016252

Dimensions

Dimension Not Available.
