F286682R | E8949R WHEEL STUD 13-1585R
FortPro

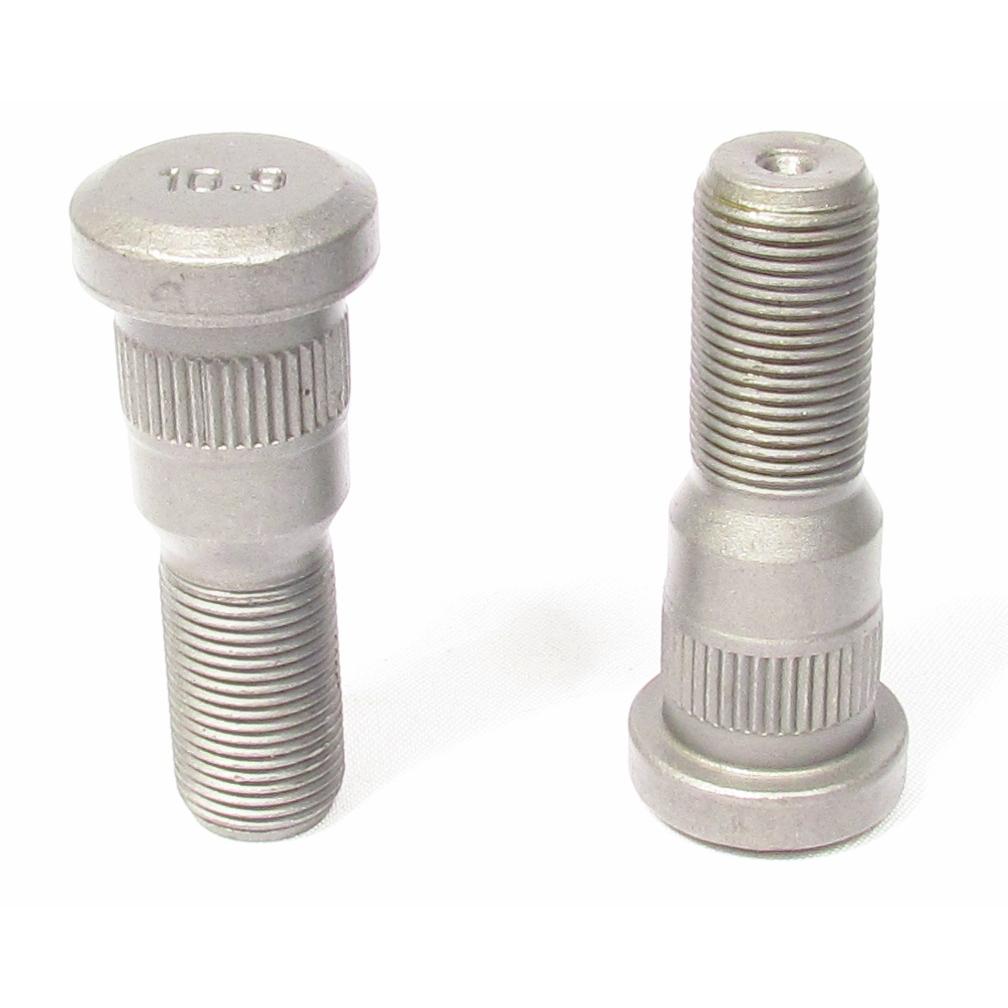

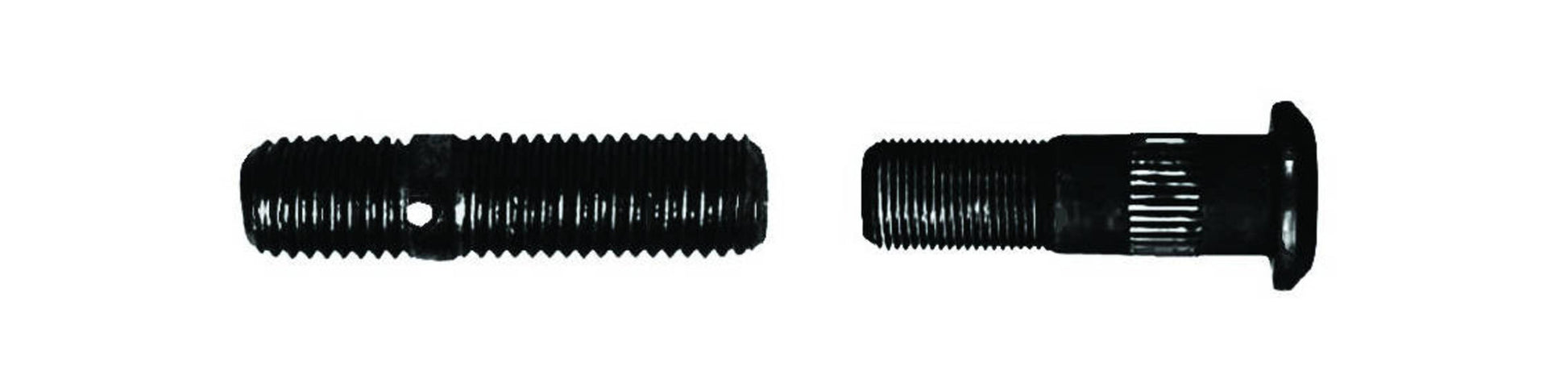

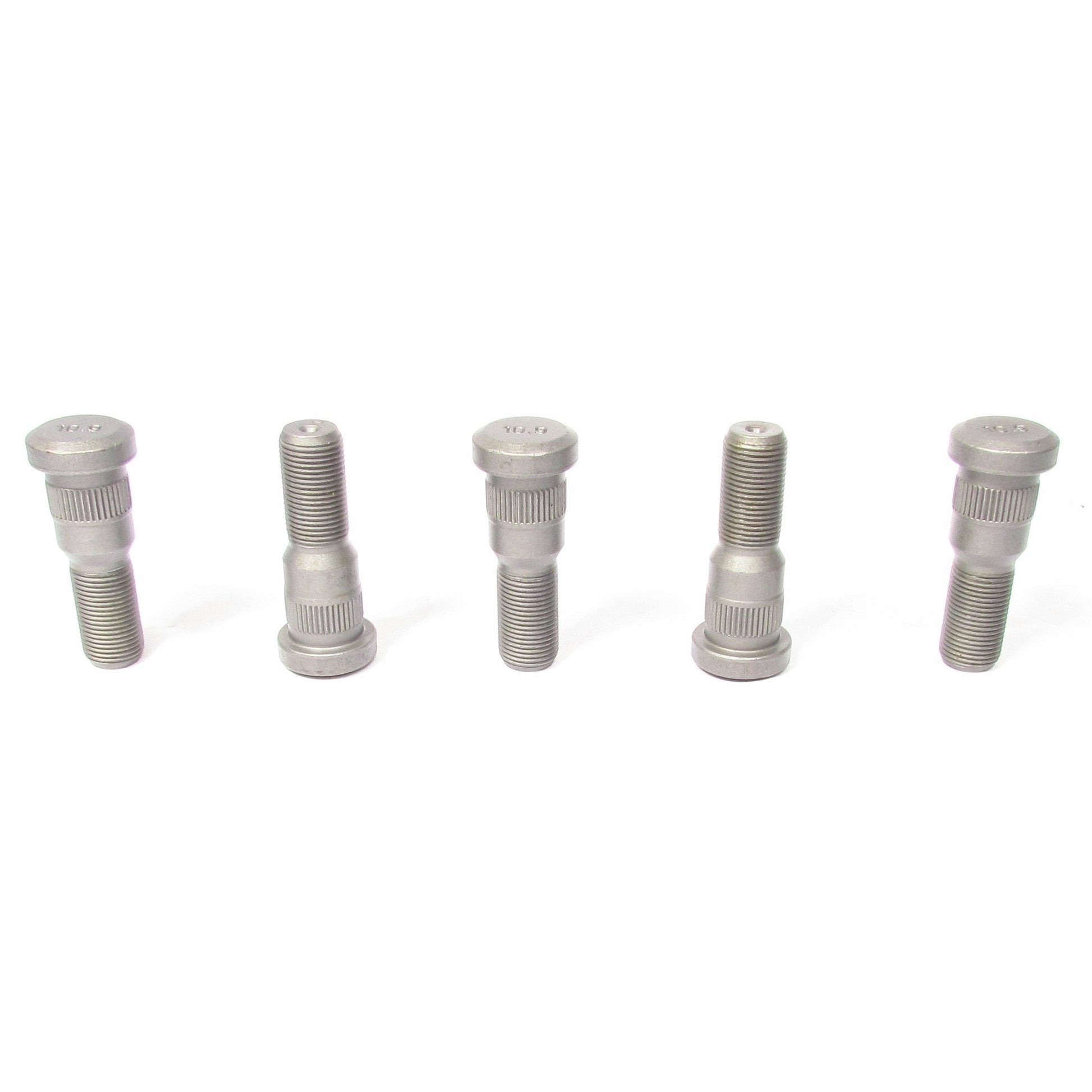

Fortpro Serrated Drive Wheel Studs F286682R are the reliable choice for securing your wheels. Constructed with high-strength steel, they offer a long-lasting hold. With a 3/4"-16 metric thread and a splined design, they ensure a tight connection and minimize the risk of loosening or unwanted vibration.
Specifications:
- Brand: Fortpro
- Part Type: Wheel Stud / Right Hand Wheel Stud / Serrated Drive Wheel Studs
- Vehicle Type: Semi-Trucks, Heavy-Duty Trucks
- Part OEM: E8949R, E-8949-R
- DIN / ISO Grade: 10.9
- Type: Headed
- Metric Thread Size: 3/4-16 UNF-2A
- Body Length (E): 0.98"
- Body Diameter (G): 0.912" /0.904"
- Length from Under Head (B): 2 19/32"
- Head Diameter (F): 1.25"
- Head Style: Round
- Head Thickness: 0.31"
- Thread (A): 3/4"-16
- Thread Diameter (H): 0.75"
- Thread Direction: RH (Right Hand)
- Threads per Inch: 16
- Thread Length (C): 1.30"
- Serration: Serrated
- Serration Length (D): 0.39"
- Serration Diameter: 0.950"
- VMRS: 018-003-009
- Item Package Quantity: 10
- Notes: Grade 10.9 is the metric equivalent of Grade 8
CrossReference:
- Automann: 201.6097R
