• E8949L WHEEL STUD 13-1585L
1 3

Fortpro

F286682L | E8949L WHEEL STUD 13-1585L

F286682L | E8949L WHEEL STUD 13-1585L

SKU: F286682L

Inventory: More than 50 in Stock

Shipping: Calculated at Checkout

$ 4.42 USD
$ 4.42 USD
Sale Sold out
Shipping calculated at checkout.

Shipping Policy

In order to send your purchase, our company may use different freight companies like USPS, UPS and some 3erd Carrier Services for Oversize orders, this will not affect the final price of your order. We will send you all the information in due time.

For Free Shipping and Freight/Oversize Shipments they are some special term you may check at our Terms & Conditions page.

Return Policy

If for any reason you need to return a purchased item, we have a 30-day return policy, which means you have 30 days after receiving your item to request a return.

To be eligible for a return, your item must meet the conditions established in our Terms & Conditions.

To start a return, use our Contact Form.
View full details

Fortpro

Product Data Sheet

Description

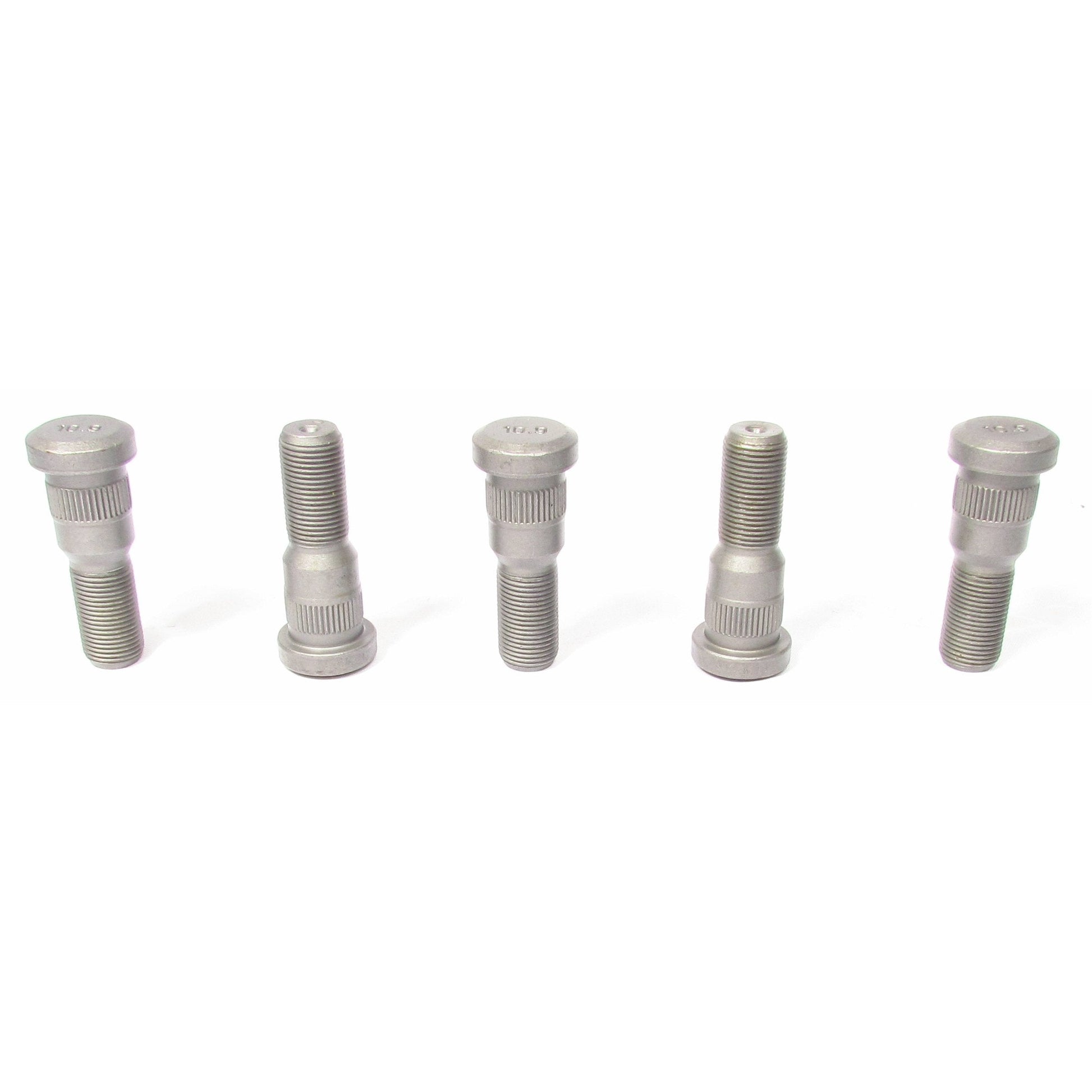

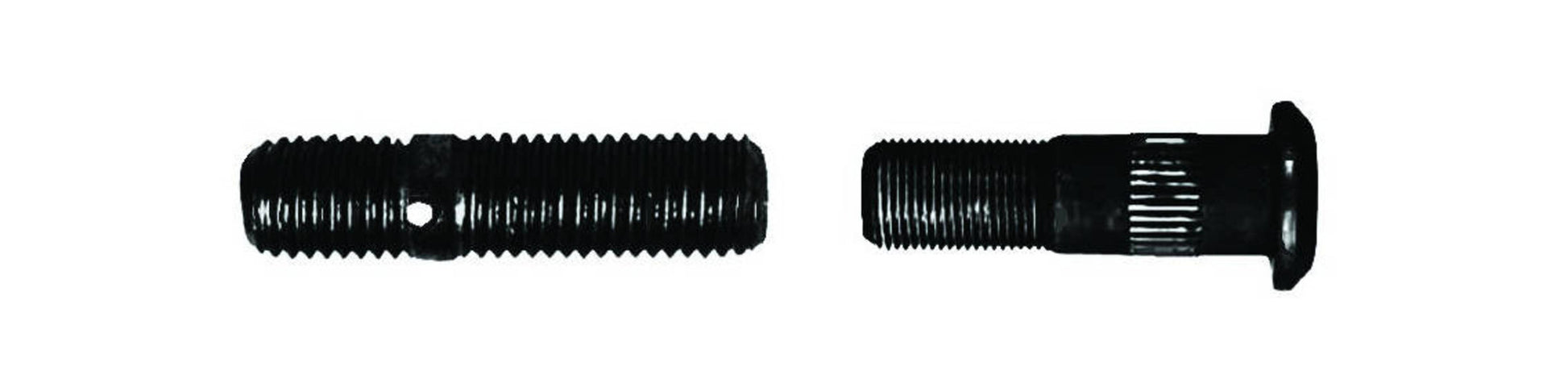

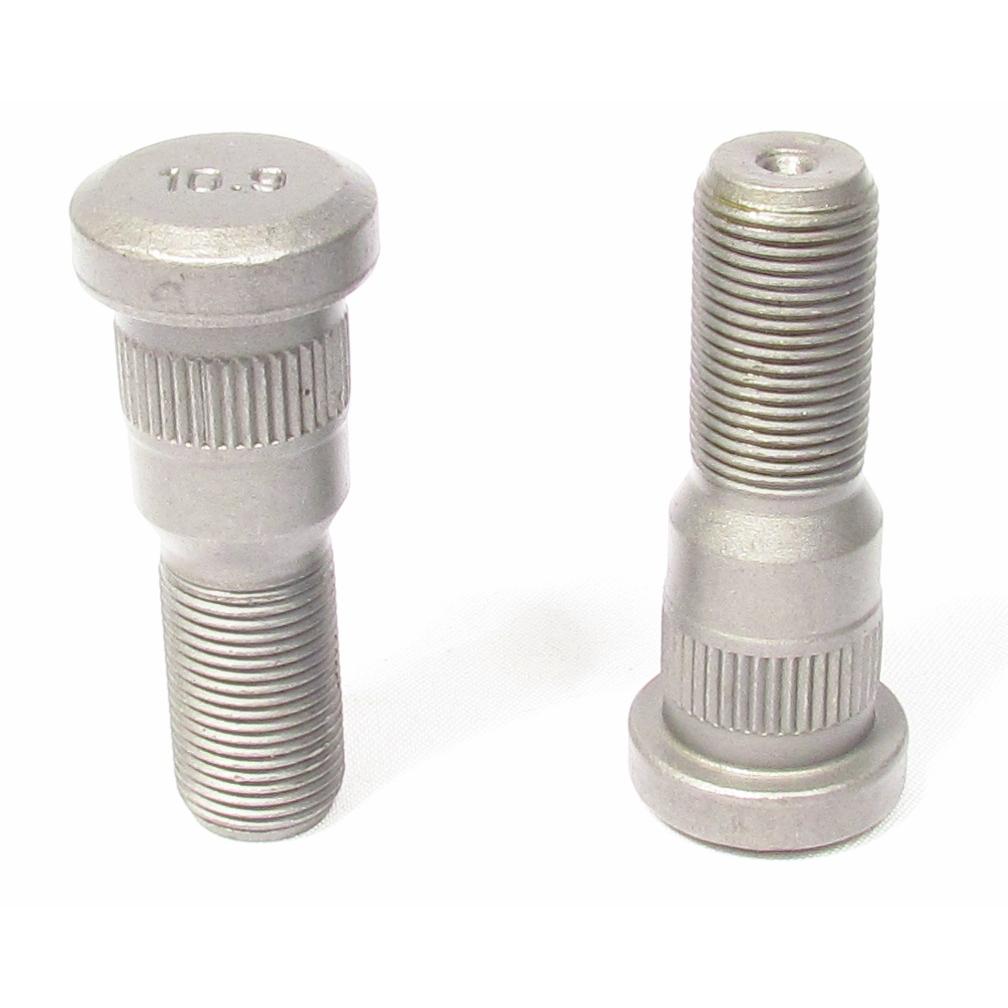

Fortpro Serrated Drive Wheel Studs F286682L are the reliable choice for securing your wheels. Constructed with high-strength steel, they offer a long-lasting hold. With a 3/4"-16 metric thread and a splined design, they ensure a tight connection and minimize the risk of loosening or unwanted vibration.

Specification

  • Brand: Fortpro
  • Part Type: Wheel Stud / Left Hand Wheel Stud / Serrated Drive Wheel Studs
  • Vehicle Type: Semi-Trucks, Heavy-Duty Trucks
  • Part OEM: E8949L, E-8949-L
  • DIN / ISO Grade: 10.9
  • Type: Headed
  • Metric Thread Size: 3/4-16 UNF-2A
  • Body Length (E): 0.98"
  • Body Diameter (G): 0.900"
  • Length from Under Head (B): 2 19/32"
  • Head Diameter (F): 1.25"
  • Head Style: Round
  • Head Thickness: 0.31"
  • Thread (A): 3/4"-16
  • Thread Diameter (H): 0.75"
  • Thread Direction: LH (Left Hand)
  • Threads per Inch: 16
  • Thread Length (C): 1.30"
  • Serration: Serrated
  • Serration Length (D): 0.39"
  • Serration Diameter: 0.950"
  • VMRS: 018-003-009
  • Item Package Quantity: 10
  • Notes: Grade 10.9 is the metric equivalent of Grade 8

Cross-References

  • Automann: 201.6097L

Dimensions

Dimension Not Available.
