Fortpro

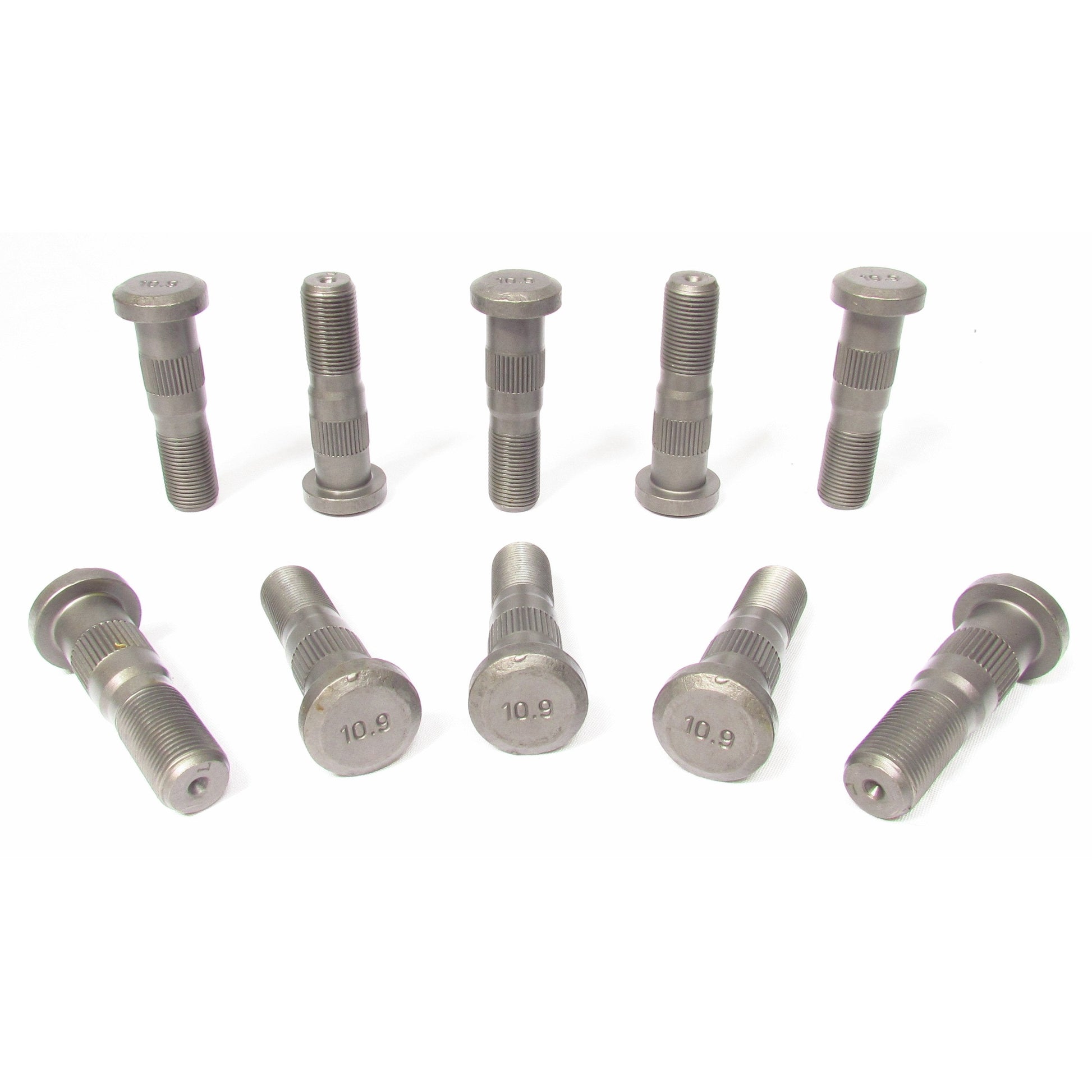

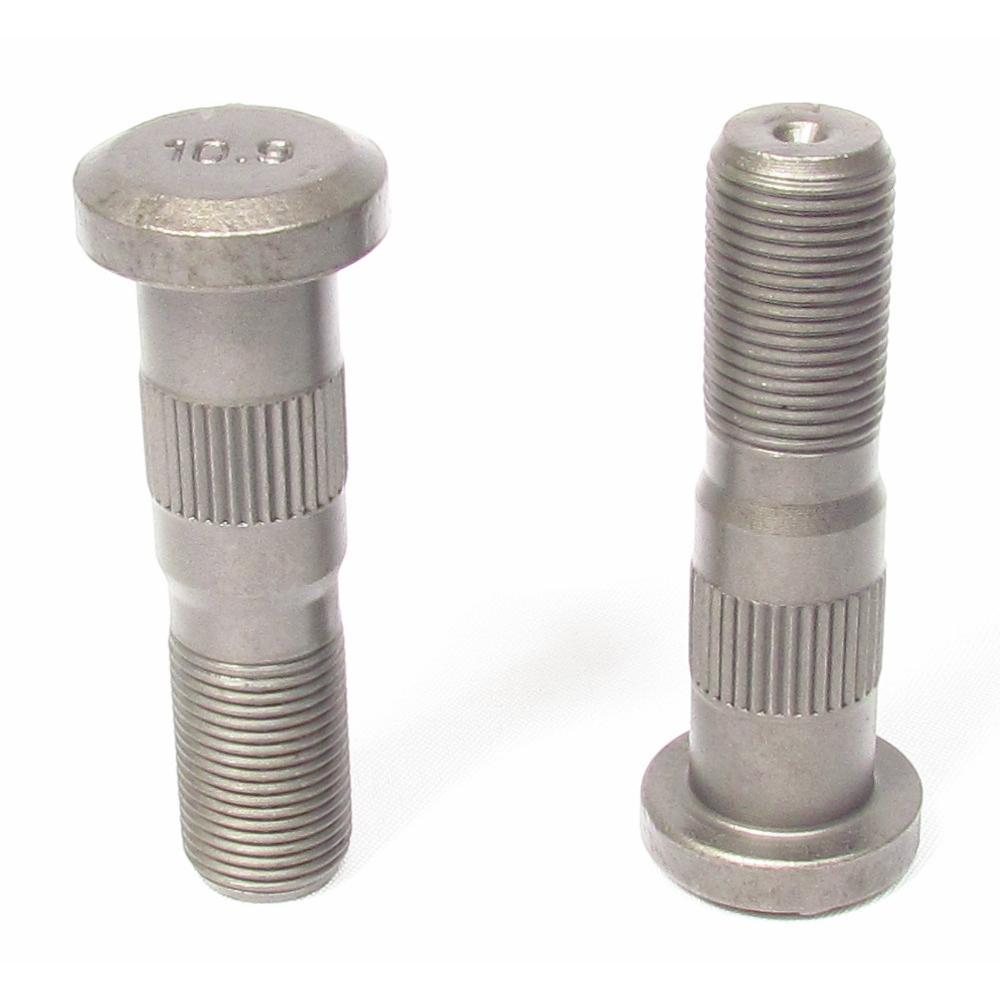

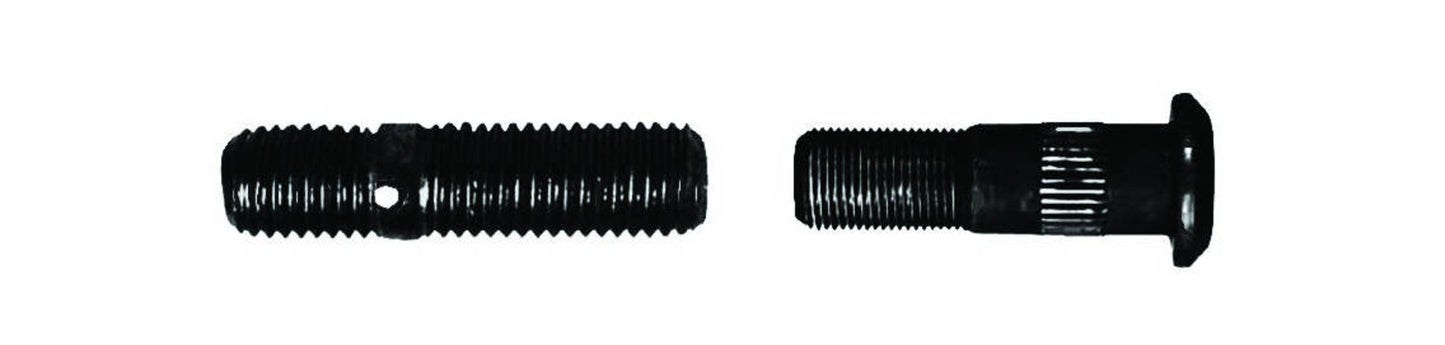

F286681R | E8947R WHEEL STUD 13-1122R

F286681R | E8947R WHEEL STUD 13-1122R

SKU: SKU:F286681R

Inventory: More than 50 in Stock

Shipping: Calculated at Checkout

Regular price $ 3.26 USD
Regular price Sale price $ 3.26 USD
Sale Sold out
Shipping calculated at checkout.

Shipping Policy

In order to send your purchase, our company may use different freight companies like USPS, UPS and some 3erd Carrier Services for Oversize orders, this will not affect the final price of your order. We will send you all the information in due time.

For Free Shipping and Freight/Oversize Shipments they are some special term you may check at our Terms & Conditions page.

Return Policy

If for any reason you need to return a purchased item, we have a 30-day return policy, which means you have 30 days after receiving your item to request a return.

To be eligible for a return, your item must meet the conditions established in our Terms & Conditions.

To start a return, use our Contact Form

View full details

Fortpro

Product Data Sheet

Description

Fortpro 3/4"-16 Serrated Drive Wheel Studs F286681R are high-performance wheel studs that offer exceptional, reliable fastening in demanding automotive applications. With their serrated design, rugged construction, and superior quality, these wheel studs deliver safety and performance on every trip.

Specification

  • Brand: Fortpro
  • Part Type: Wheel Stud / Right Hand Wheel Stud / Serrated Drive Wheel Studs
  • Vehicle Type: Semi-Trucks, Heavy-Duty Trucks
  • Part OEM: E8947R, E-8947-R
  • DIN / ISO Grade: 10.9
  • Type: Headed
  • Metric Thread Size: 3/4"-16 UNF-2A
  • Body Length (E): 1.40"
  • Body Diameter (G): 0.785"
  • Length from Under Head (B): 2 31/32 "
  • Head Diameter (F): 1.28"
  • Head Style: Round
  • Head Thickness: 0.31"
  • Thread (A): 3/4"-16
  • Thread Diameter (H): 0.75"
  • Thread Direction: RH (Right Hand)
  • Threads per Inch: 16
  • Thread Length (C): 1.16"
  • Serration: Serrated
  • Serration Length (D): 0.38"
  • Serration Diameter: 0.820"
  • VMRS: 018-003-009
  • Item Package Quantity: 10
  • Notes: Grade 10.9 is the metric equivalent of Grade 8

Cross-References

  • Automann: 2016045R

Dimensions

Dimension Not Available.
