• E4968L WHEEL STUD 13-1104L
1 3

Fortpro

F286679L | E4968L WHEEL STUD 13-1104L

F286679L | E4968L WHEEL STUD 13-1104L

SKU: F286679L

Inventory: More than 50 in Stock

Shipping: Calculated at Checkout

$ 2.31 USD
$ 2.31 USD
Sale Sold out
Shipping calculated at checkout.

Shipping Policy

In order to send your purchase, our company may use different freight companies like USPS, UPS and some 3erd Carrier Services for Oversize orders, this will not affect the final price of your order. We will send you all the information in due time.

For Free Shipping and Freight/Oversize Shipments they are some special term you may check at our Terms & Conditions page.

Return Policy

If for any reason you need to return a purchased item, we have a 30-day return policy, which means you have 30 days after receiving your item to request a return.

To be eligible for a return, your item must meet the conditions established in our Terms & Conditions.

To start a return, use our Contact Form.
View full details

Fortpro

Product Data Sheet

Description

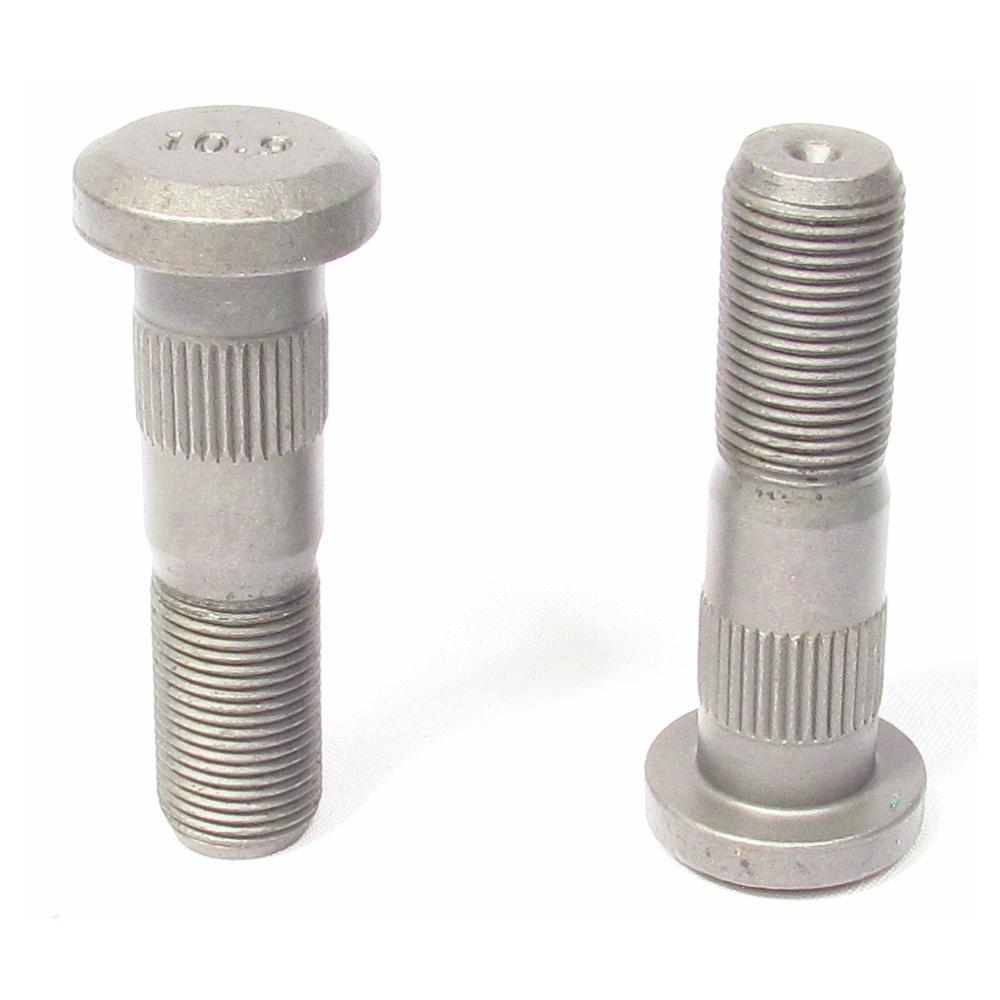

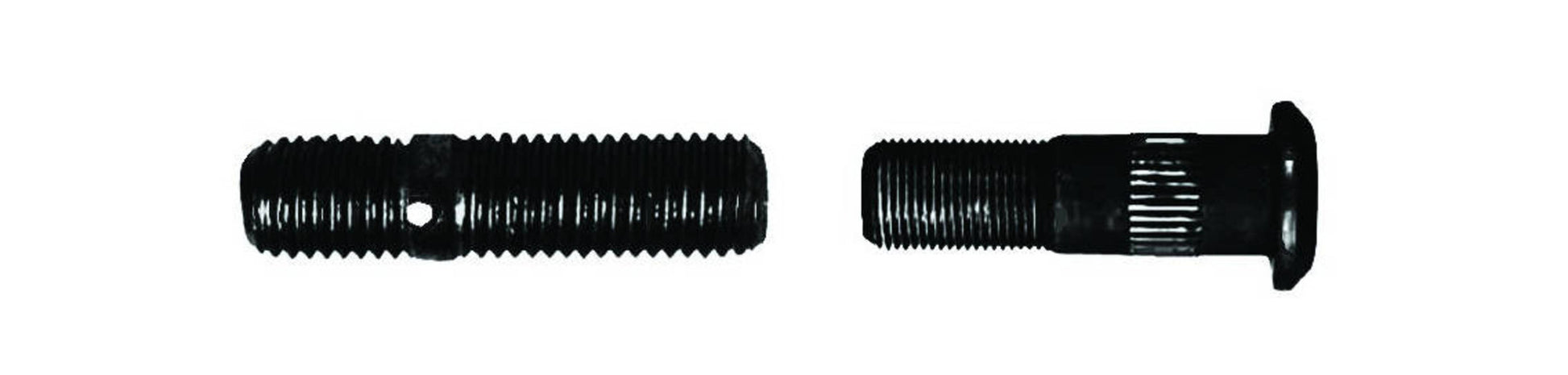

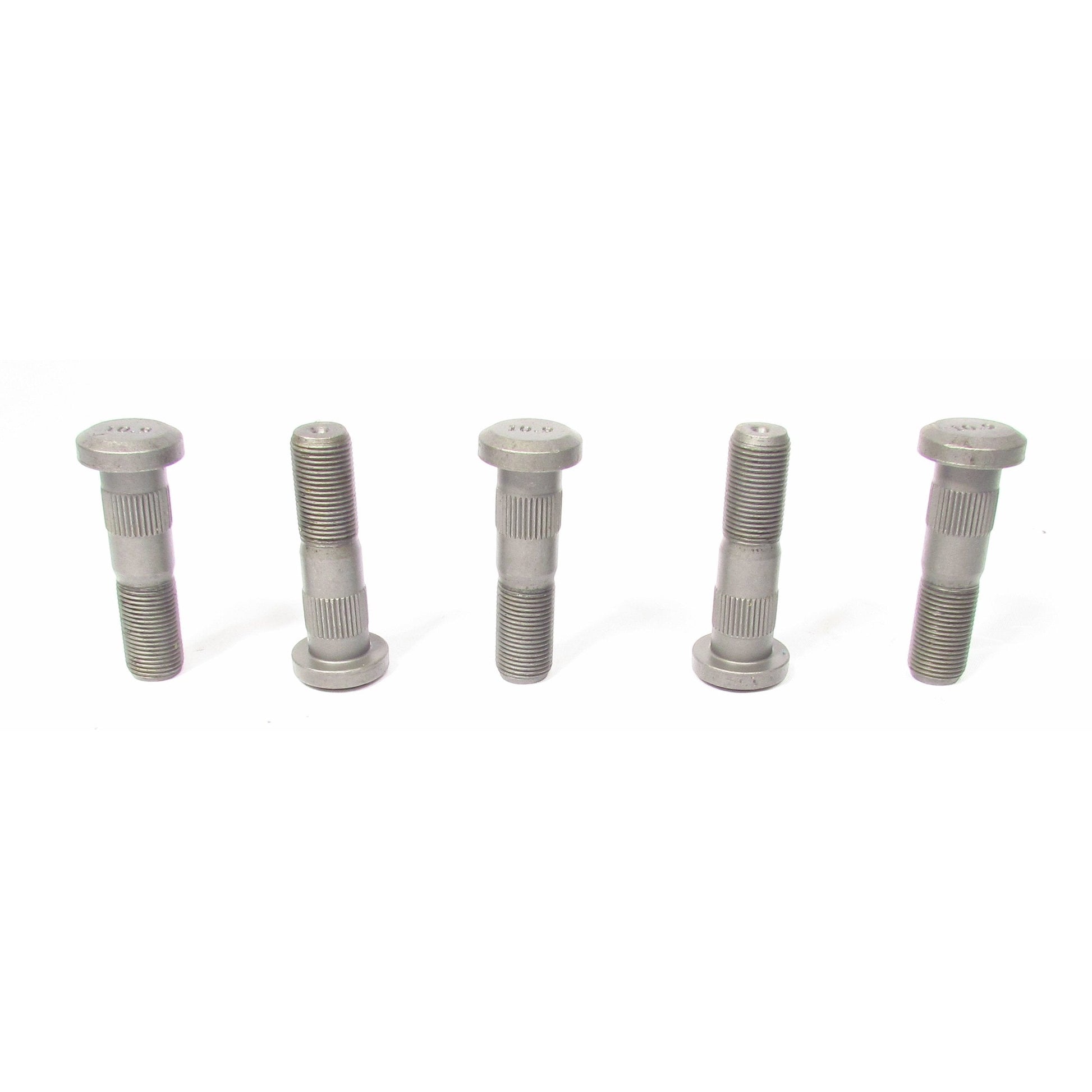

Fortpro 3/4"-16 Drum Shoulder Wheel Stud F286679L is a high quality wheel stud designed to provide a secure and reliable hold on heavy duty and heavy duty vehicles. These wheel studs are especially well suited for applications requiring exceptional strength and durability prolonged

Specification

  • Brand: Fortpro
  • Part Type: Wheel Stud / Left Hand Wheel Stud / Drum Shoulder Wheel Studs
  • Vehicle Type: Semi-Trucks, Heavy-Duty Trucks
  • Part OEM: E4968L, E-4968-L
  • DIN / ISO Grade: 10.9
  • Type: Headed
  • Metric Thread Size: 3/4"-16 UNF-2A
  • Body Length (E): 1.50"
  • Body Diameter (G): 0.785"
  • Length from Under Head (B): 2 7/8"
  • Head Diameter (F): 1.28"
  • Head Style: Round
  • Head Thickness: 0.31"
  • Thread (A): 3/4"-16
  • Thread Diameter (H): 0.75"
  • Thread Direction: LH (Left Hand)
  • Threads per Inch: 16
  • Thread Length (C): 0.97"
  • Serration: Serrated
  • Serration Length (D): 0.50"
  • Serration Diameter: 0.820"
  • VMRS: 018-003-009
  • Item Package Quantity: 10
  • Notes: Grade 10.9 is the metric equivalent of Grade 8

Cross-References

  • Automann: 2016067L, 2016067LP2

Dimensions

Dimension Not Available.
