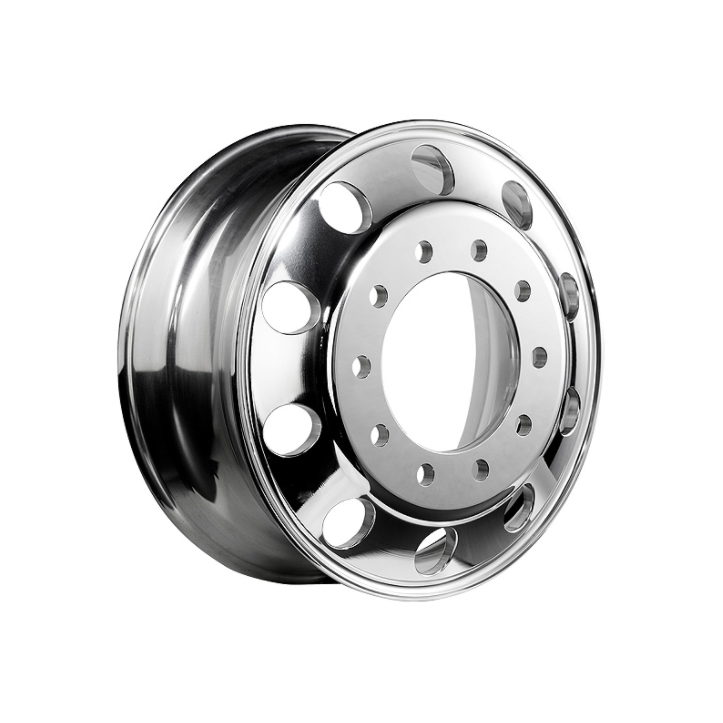

F286440 | ALUMINIUM WHEEL 22.5" X 8.25" (AMERICAN HUB) 10 HAND HOLES

F286440 | ALUMINIUM WHEEL 22.5" X 8.25" (AMERICAN HUB) 10 HAND HOLES

SKU: F286440

Inventory: More than 50 in Stock

Shipping: Calculated at Checkout

$ 358.67 USD
$ 358.67 USD
Sale Sold out
Shipping calculated at checkout.

Shipping Policy

In order to send your purchase, our company may use different freight companies like USPS, UPS and some 3erd Carrier Services for Oversize orders, this will not affect the final price of your order. We will send you all the information in due time.

For Free Shipping and Freight/Oversize Shipments they are some special term you may check at our Terms & Conditions page.

Return Policy

If for any reason you need to return a purchased item, we have a 30-day return policy, which means you have 30 days after receiving your item to request a return.

To be eligible for a return, your item must meet the conditions established in our Terms & Conditions.

To start a return, use our Contact Form.

About this Item

  • Forged wheels are one-piece wheels, which warranty structural integrity. Are stronger because of grain refinement due to thermal cycle and process of deformation.
  • Forged wheels are one-piece wheels, which warranty structural integrity. Are stronger because of grain refinement due to thermal cycle and process of deformation.
  • The manufacturing process excludes occurrence of cavities, porosity, and shrinkage.
  • Mechanically stronger wheels because of tight grain structure. It also ensures better wear resistance.
  • Machine polished on both sides.
View full details

Fortpro

Product Data Sheet

Description

The latest technologies are used in Fortpro's manufacturing equipment, which also passed the third-party standard certification. Customers can trust our quality.

Aluminum wheels are lighter than steel and cast aluminum wheels. Forged wheels are stronger than cast aluminum wheels. That is why we can entirely recommend Fortpro Aluminum wheels.

Specification

Dimensions:

  • Diameter: 22.5 in
  • Width: 8.25 in

Offset:

  • Outset: 167.9 mm
  • Inset: 147.2 mm

Bolt Hole (mm):

  • PCD: 285.75
  • No: 10
  • Dia 26

Hub:

  • Dia: 220.20
  • Thic: 20.7

Max Loading: 7400 lbs



     TIRE SIZE(1) APPROVED RIM CONTOURS(2)
    255/70R 22.5 7.50, 8.25
    265/75 ★ 22.5 7.50, 8.25
    11 ★ 22.5 7.50, 8.25
    275/80R 22.5 7.50, 8.25
    295/75 ★ 22.5 8.25, 9.00
    305/70R 22.5 8.25, 9.00
    12 ★ 22.5 8.25, 9.00
    12.5 ★ 22.5 8.25, 9.00
    12.75 ★ 22.5 8.25, 9.00
    315/80R22.5 8.25, 9.00, 9.75



    (1) A ★ denotes both radial and bias tires. An R indicates radial tires only.

    (2) SDC denotes semi-drop center rims. Note: For tire sizes not shown, consult the Tire Manufacturer for approved rim contours.

    Cross-References

    Check Description & Specifications

    Dimensions

    Dimension Not Available.
