F245644 | AIR SPRING 6897, 2B9-229 | Replace FAS-0717

F245644 | AIR SPRING 6897, 2B9-229 | Replace FAS-0717

SKU: SKU:F245644

Inventory: 26 in stock

Shipping: Calculated at Checkout

Regular price $ 90.49 USD
Regular price Sale price $ 90.49 USD
Sale Sold out
Shipping calculated at checkout.

Shipping Policy

In order to send your purchase, our company may use different freight companies like USPS, UPS and some 3erd Carrier Services for Oversize orders, this will not affect the final price of your order. We will send you all the information in due time.

For Free Shipping and Freight/Oversize Shipments they are some special term you may check at our Terms & Conditions page.

Return Policy

If for any reason you need to return a purchased item, we have a 30-day return policy, which means you have 30 days after receiving your item to request a return.

To be eligible for a return, your item must meet the conditions established in our Terms & Conditions.

To start a return, use our Contact Form

View full details


Product Data Sheet

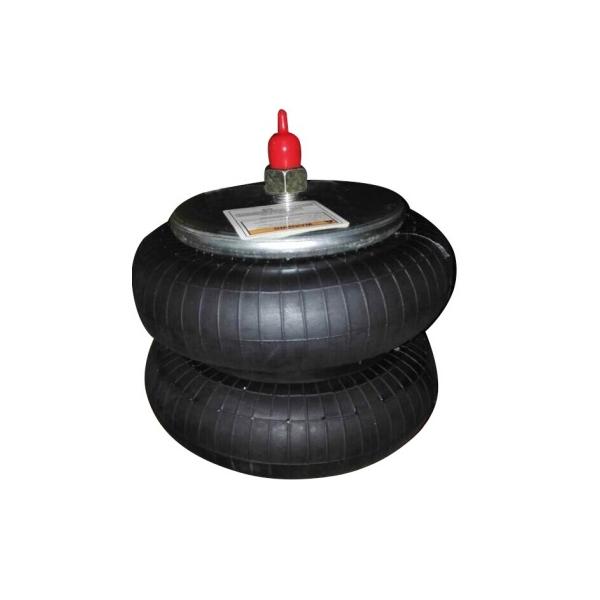

Fortpro Double Convoluted Air Spring F245644 is a high quality, exceptional performance air suspension component. Precision engineered and constructed of durable materials, this double contour air spring offers a reliable solution for a wide range of commercial and transportation applications. Its double contour design provides impressive heavy load capacity and efficient cushioning of road impacts.


  • Brand: Fortpro
  • Part Type: Air Spring / Air Spring Bag / Suspension Air Spring
  • Vehicle Type: Semi-Trucks, Heavy-Duty Trucks
  • Part OEM: 6897, W013586897, W01-358-6897
  • Position: Auxiliary / Tag Axle
  • Air Spring Style: Convoluted
  • Bead Plate Diameter Bottom: 6.31"
  • Bead Plate Diameter Top: 6.31"
  • Collapsed Height: 3.12"
  • Part Diameter: 8.88"
  • Stud Configuration-Bottom: 1
  • Stud Configuration - Top: 1
  • Weight:: 7.33 lbs
  • Application: Watson & Chalin AS-0058
  • VMRS: 016-008-000


  • Automann: 566ER6897
  • Contitech: FD20019505
  • Firestone: 6897, W013586897, W01-358-6897
  • Flagg: 4706, AS4505
  • Goodyear: 2B9229, 2B9-229
  • Meritor: FS6897, MAF6897


Dimension Not Available.
