F245599 | AIR SPRING 9039, 1R12-095 | Replace FAS-0699

F245599 | AIR SPRING 9039, 1R12-095 | Replace FAS-0699

SKU: SKU:F245599

Inventory: More than 50 in Stock

Shipping: Calculated at Checkout

Regular price $ 152.46 USD
Regular price Sale price $ 152.46 USD
Sale Sold out
Shipping calculated at checkout.

Shipping Policy

In order to send your purchase, our company may use different freight companies like USPS, UPS and some 3erd Carrier Services for Oversize orders, this will not affect the final price of your order. We will send you all the information in due time.

For Free Shipping and Freight/Oversize Shipments they are some special term you may check at our Terms & Conditions page.

Return Policy

If for any reason you need to return a purchased item, we have a 30-day return policy, which means you have 30 days after receiving your item to request a return.

To be eligible for a return, your item must meet the conditions established in our Terms & Conditions.

To start a return, use our Contact Form

View full details

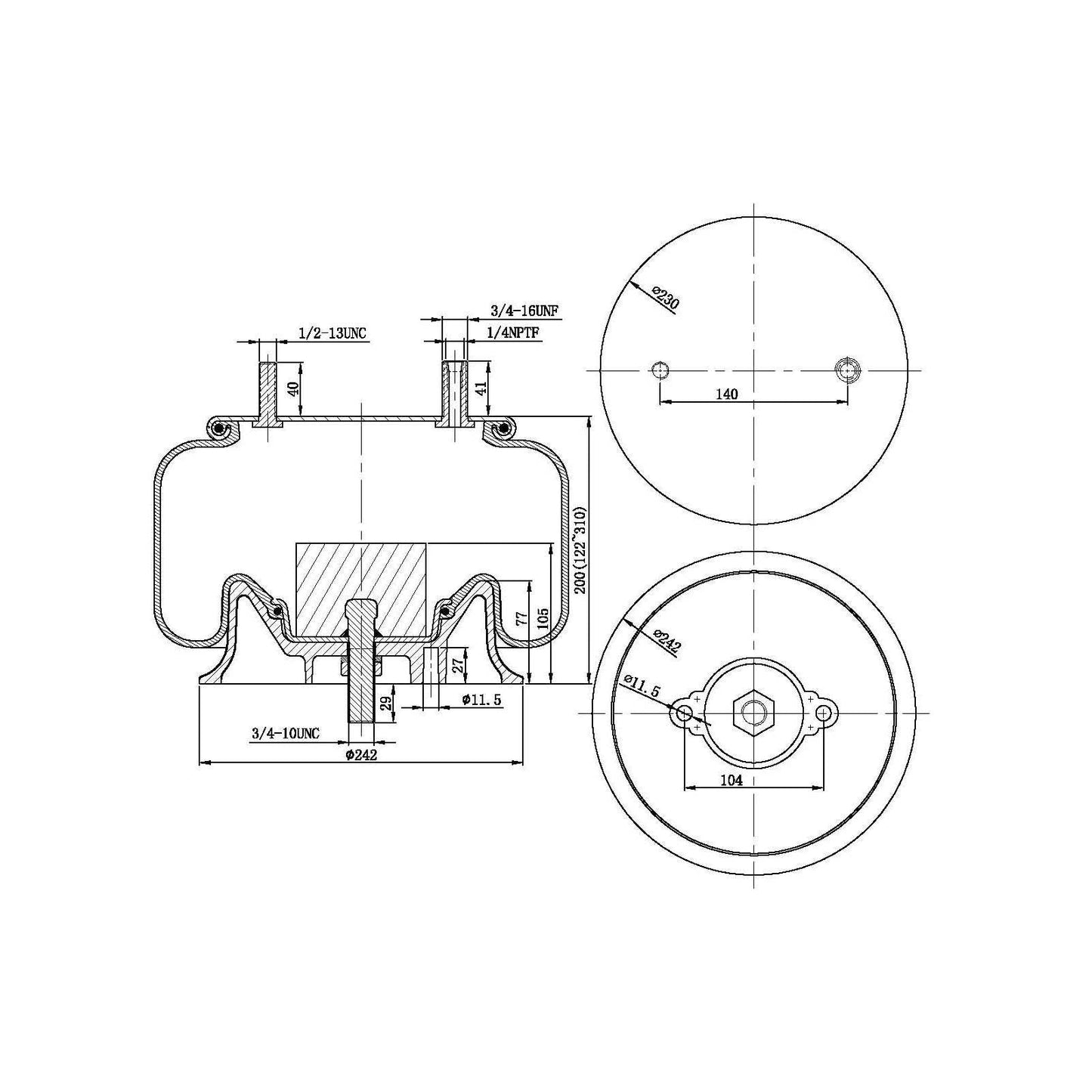

Product Data Sheet


Fortpro Air Spring F245599 is a high quality air suspension system designed to improve the comfort, stability and load capacity of commercial and cargo vehicles. This air spring suspension uses a compressed air bag made of strong and durable materials, ensuring reliable performance over time.


  • Brand: Fortpro
  • Part Type: Air Spring / Air Spring Bag / Suspension Air Spring
  • Vehicle Type: Semi-Trucks, Heavy-Duty Trucks
  • Part OEM: 9039, W013589039, W01-358-9039
  • Position: Primary Truck & Trailer Axle
  • Air Spring Style: 1T Reversible Sleeve
  • Piston Type: Aluminum
  • Bead Plate Diameter Bottom: 9.50"
  • Bead Plate Diameter Top: 9.00"
  • Collapsed Height: 4.80"
  • Max. Height: 12.20"
  • Part Diameter: 10.12"
  • Piston Height: 3.00"
  • Stud Configuration-Bottom: 1
  • Stud Configuration - Top: 2
  • Weight:: 13.44 lbs
  • Application: Hendrickson Trailer S2064/S11650, Holland (Neway) 90557001, 90557023, 90557085 Hutchens H-9424-01 R & S Truck & Body 1090218, Ridewell 1013589039C FabTek 101827, Sauer P50-734, Watson & Chalin AS-0012
  • VMRS: 016-008-000


  • Airtex: AB1DK23F9039
  • Automann: 566CT64260
  • Contitech: 91010P311, 91010P311
  • Dayton Parts Batco: 1R12095, 1R12097, 3529039, S2063
  • Firestone: 9039, W013589039, W01-358-9039
  • Goodyear: 1R12095, 1R12095, 1R12097, 1R12097, 1R12097SA, 1R12122, 1R12122


Dimension Not Available.
