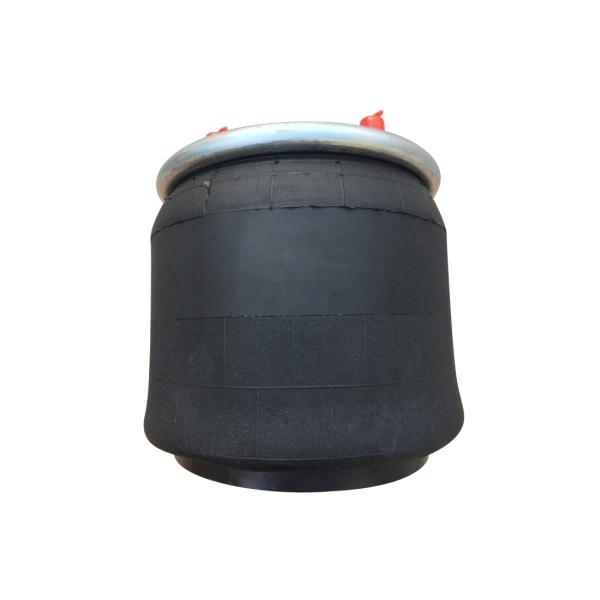

F245598 | AIR SPRING 8708, 1R13-177

F245598 | AIR SPRING 8708, 1R13-177

SKU: SKU:F245598

Inventory: More than 50 in Stock

Shipping: Calculated at Checkout

Regular price $ 185.11 USD
Regular price Sale price $ 185.11 USD
Sale Sold out
Shipping calculated at checkout.

Shipping Policy

In order to send your purchase, our company may use different freight companies like USPS, UPS and some 3erd Carrier Services for Oversize orders, this will not affect the final price of your order. We will send you all the information in due time.

For Free Shipping and Freight/Oversize Shipments they are some special term you may check at our Terms & Conditions page.

Return Policy

If for any reason you need to return a purchased item, we have a 30-day return policy, which means you have 30 days after receiving your item to request a return.

To be eligible for a return, your item must meet the conditions established in our Terms & Conditions.

To start a return, use our Contact Form

View full details


Product Data Sheet


Fortpro Air Spring F245598 is a leading air suspension choice for heavy duty vehicles and other applications. Providing a smooth and stable ride, reliable cargo protection, and superior durability, this air spring ensures optimum performance and safe driving.


  • Brand: Fortpro
  • Part Type: Air Spring / Air Spring Bag / Suspension Air Spring
  • Vehicle Type: Semi-Trucks, Heavy-Duty Trucks
  • Part OEM: 8708, W013588708, W01-358-8708
  • Position: Primary Truck & Trailer Axle
  • Air Spring Style: 1T Reversible Sleeve
  • Piston Type: Composite
  • Bead Plate Diameter Bottom: 9.22"
  • Bead Plate Diameter Top: 10.38"
  • Collapsed Height: 9.10"
  • Max. Height: 21.50"
  • Part Diameter: 10.62"
  • Piston Height: 5.38"
  • Stud Configuration-Bottom: 1
  • Stud Configuration - Top: 2
  • Weight:: 15.20 lbs
  • Application: Hendrickson Trailer S21966 (HKA200 Special)
  • VMRS: 016-008-000


  • Automann: 566CT64638, AB1DK25E8708
  • Contitech: 101016S526
  • Dayton Parts Batco: 1R13177, 3528708, S21966
  • Firestone: 8708, W013588708, W01-358-8708
  • Goodyear: 1R13128, 1R13177, 1R13177
  • Meritor: FS8708, MAF8708


Dimension Not Available.
