F245597 | AIR SPRING 8829, 1R12-615 | Replace FAS-0728

F245597 | AIR SPRING 8829, 1R12-615 | Replace FAS-0728

SKU: SKU:F245597

Inventory: More than 50 in Stock

Shipping: Calculated at Checkout

Regular price $ 164.56 USD
Regular price Sale price $ 164.56 USD
Sale Sold out
Shipping calculated at checkout.

Shipping Policy

In order to send your purchase, our company may use different freight companies like USPS, UPS and some 3erd Carrier Services for Oversize orders, this will not affect the final price of your order. We will send you all the information in due time.

For Free Shipping and Freight/Oversize Shipments they are some special term you may check at our Terms & Conditions page.

Return Policy

If for any reason you need to return a purchased item, we have a 30-day return policy, which means you have 30 days after receiving your item to request a return.

To be eligible for a return, your item must meet the conditions established in our Terms & Conditions.

To start a return, use our Contact Form

View full details

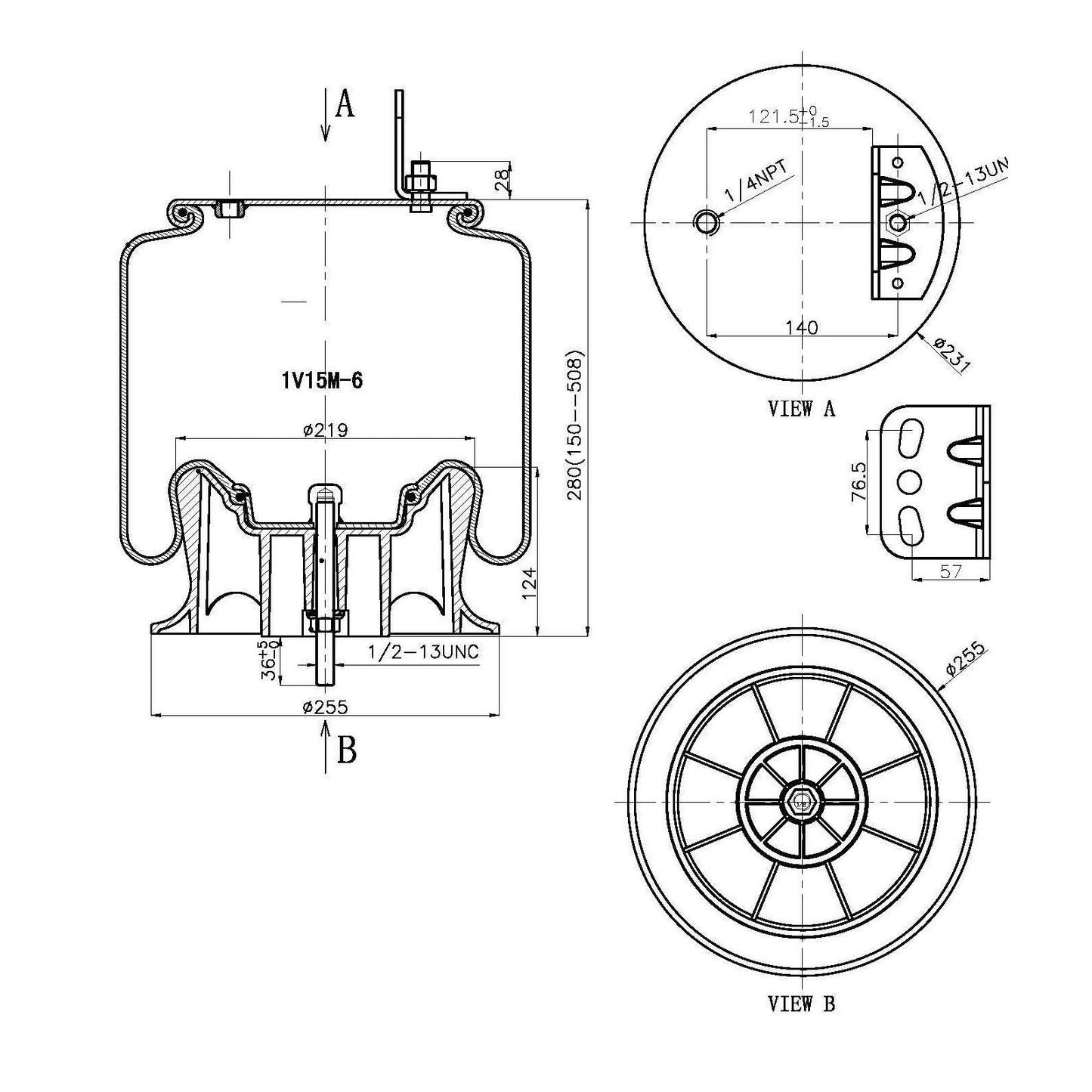

Product Data Sheet

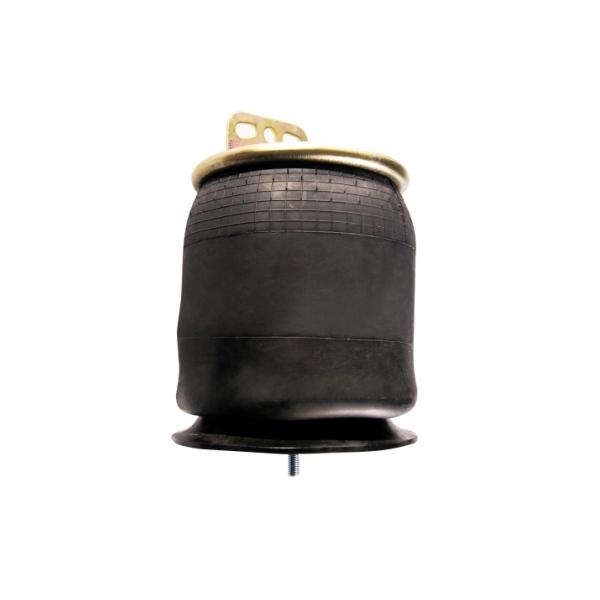

Fortpro Air Spring F245597 is a high quality air suspension option for heavy duty vehicles. With its level of carry and load protection, smooth ride and superior durability, this air spring ensures optimal performance, driver comfort and safety in the most demanding applications.


  • Brand: Fortpro
  • Part Type: Air Spring / Air Spring Bag / Suspension Air Spring
  • Vehicle Type: Semi-Trucks, Heavy-Duty Trucks
  • Part OEM: 8829, W013588829, W01-358-8829
  • Position: Primary Truck & Trailer Axle
  • Air Spring Style: 1T Reversible Sleeve
  • Piston Type: Composite
  • Bead Plate Diameter Bottom: 10.00"
  • Bead Plate Diameter Top: 9.00"
  • Collapsed Height: 5.90"
  • Max. Height: 21.65"
  • Part Diameter: 10.12"
  • Piston Height: 4.65"
  • Stud Configuration-Bottom: 1
  • Stud Configuration - Top: 2
  • Weight:: 11.90 lbs
  • Application: Compatible with Volvo 3934699, 8079902
  • VMRS: 016-008-000


  • Automann: AB1DF23HP1154, AB1DK23P8829
  • Contitech: 91016P449
  • Dayton Parts Batco: 1R121083, 1R12615, 3528829
  • Firestone: 8829, W013588829, W01-358-8829
  • Goodyear: 1R12405, 1R12405, 1R12536, 1R12595, 1R12615, 1R12615, 1S12002, 1S12002, 1S12033, 1S12035, 566241010
  • Meritor: FS8829, MAF8829


Dimension Not Available.
