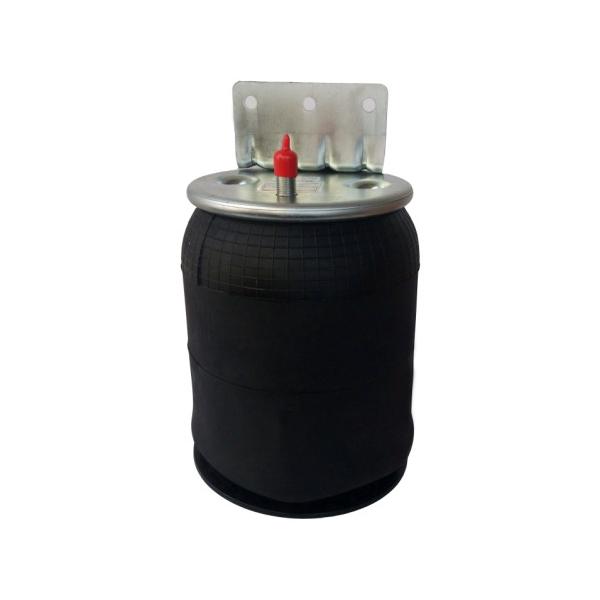

F245595 | AIR SPRING 9648, 1R12-538 | Replace FAS-0695

F245595 | AIR SPRING 9648, 1R12-538 | Replace FAS-0695

SKU: SKU:F245595

Inventory: 38 in stock

Shipping: Calculated at Checkout

Regular price $ 164.22 USD
Regular price Sale price $ 164.22 USD
Sale Sold out
Shipping calculated at checkout.

Shipping Policy

In order to send your purchase, our company may use different freight companies like USPS, UPS and some 3erd Carrier Services for Oversize orders, this will not affect the final price of your order. We will send you all the information in due time.

For Free Shipping and Freight/Oversize Shipments they are some special term you may check at our Terms & Conditions page.

Return Policy

If for any reason you need to return a purchased item, we have a 30-day return policy, which means you have 30 days after receiving your item to request a return.

To be eligible for a return, your item must meet the conditions established in our Terms & Conditions.

To start a return, use our Contact Form

View full details

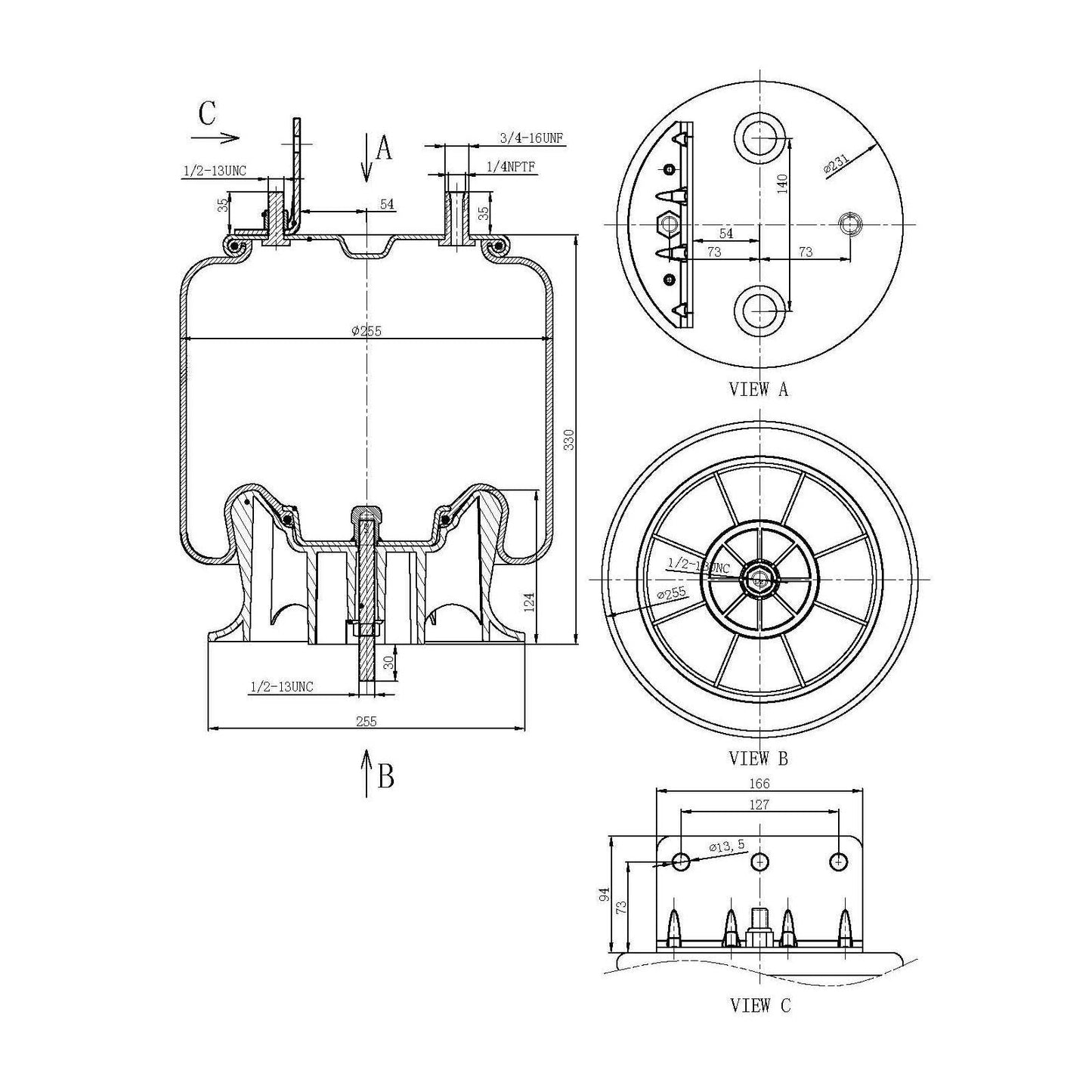

Product Data Sheet


Fortpro Air Spring F245595 is a high quality air spring designed for commercial and cargo vehicles. It offers height adjustment, shock absorption, and robust load capacity, all backed by its durable construction and compressed air-based functionality


  • Brand: Fortpro
  • Part Type: Air Spring / Air Spring Bag / Suspension Air Spring
  • Vehicle Type: Semi-Trucks, Heavy-Duty Trucks
  • Part OEM: 9648, W013589648, W01-358-9648
  • Position: Primary Truck & Trailer Axle
  • Air Spring Style: 1T Reversible Sleeve
  • Piston Type: Composite
  • Bead Plate Diameter Bottom: 10.00"
  • Bead Plate Diameter Top: 9.00"
  • Collapsed Height: 5.90"
  • Max. Height: 19.65"
  • Part Diameter: 10.12"
  • Piston Height: 4.65"
  • Stud Configuration-Bottom: 1
  • Stud Configuration - Top: 3
  • Weight:: 12.37 lbs
  • Application: Navistar 2027911C1 & C2
  • VMRS: 016-008-000
  • Notes: Bracket 70-3582-6047


  • Automann: AB1DK23M9648
  • Contitech: 910175P456, 910S16P1068(BK)
  • Dayton Parts Batco: 1R12538, 3529648
  • Firestone: 9648, W013589648, W01-358-9648
  • Goodyear: 1R12398, 1R12398, 1R12538, 1R12538, 1R12539
  • Sirco - Brake : AS9648


Dimension Not Available.
