Fortpro

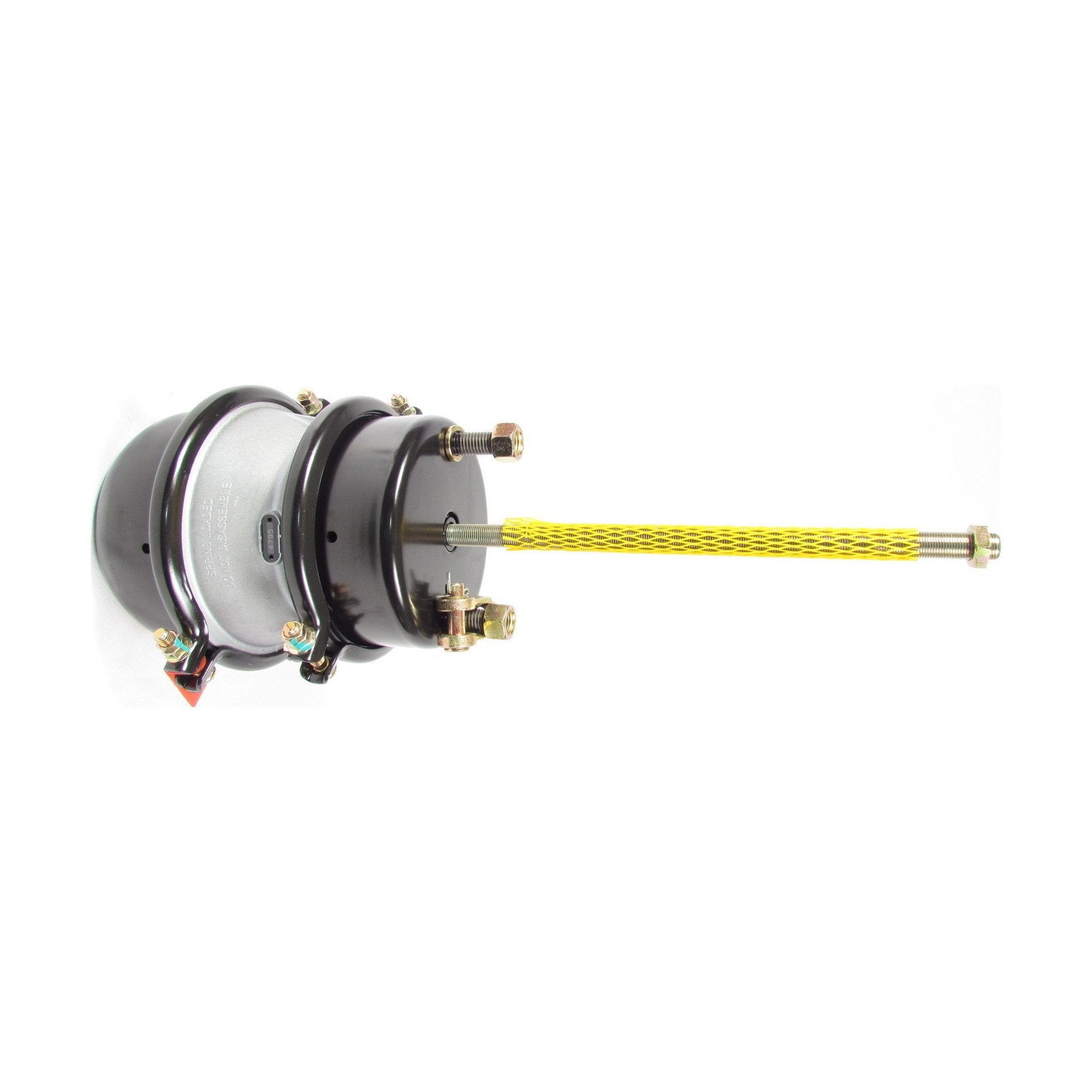

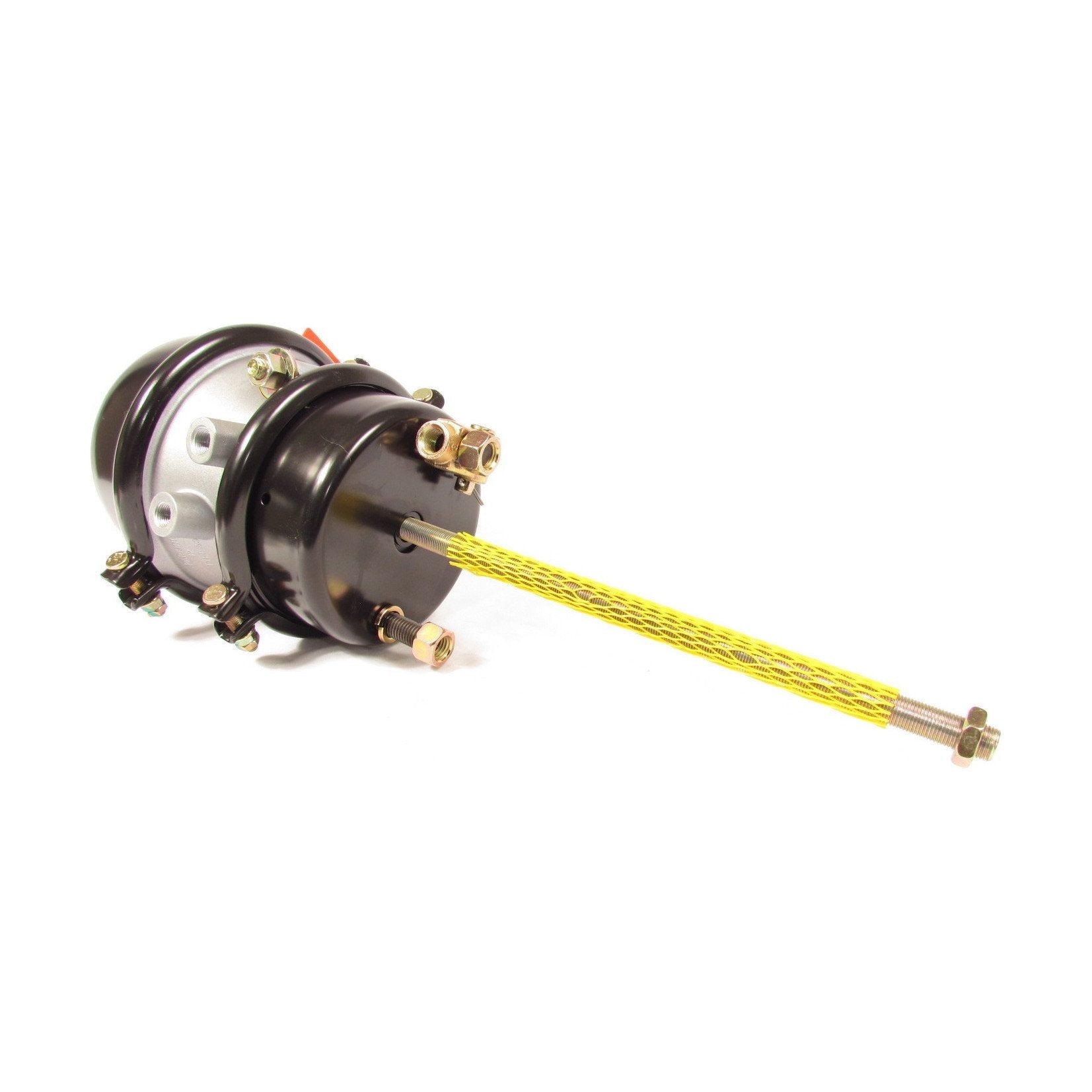

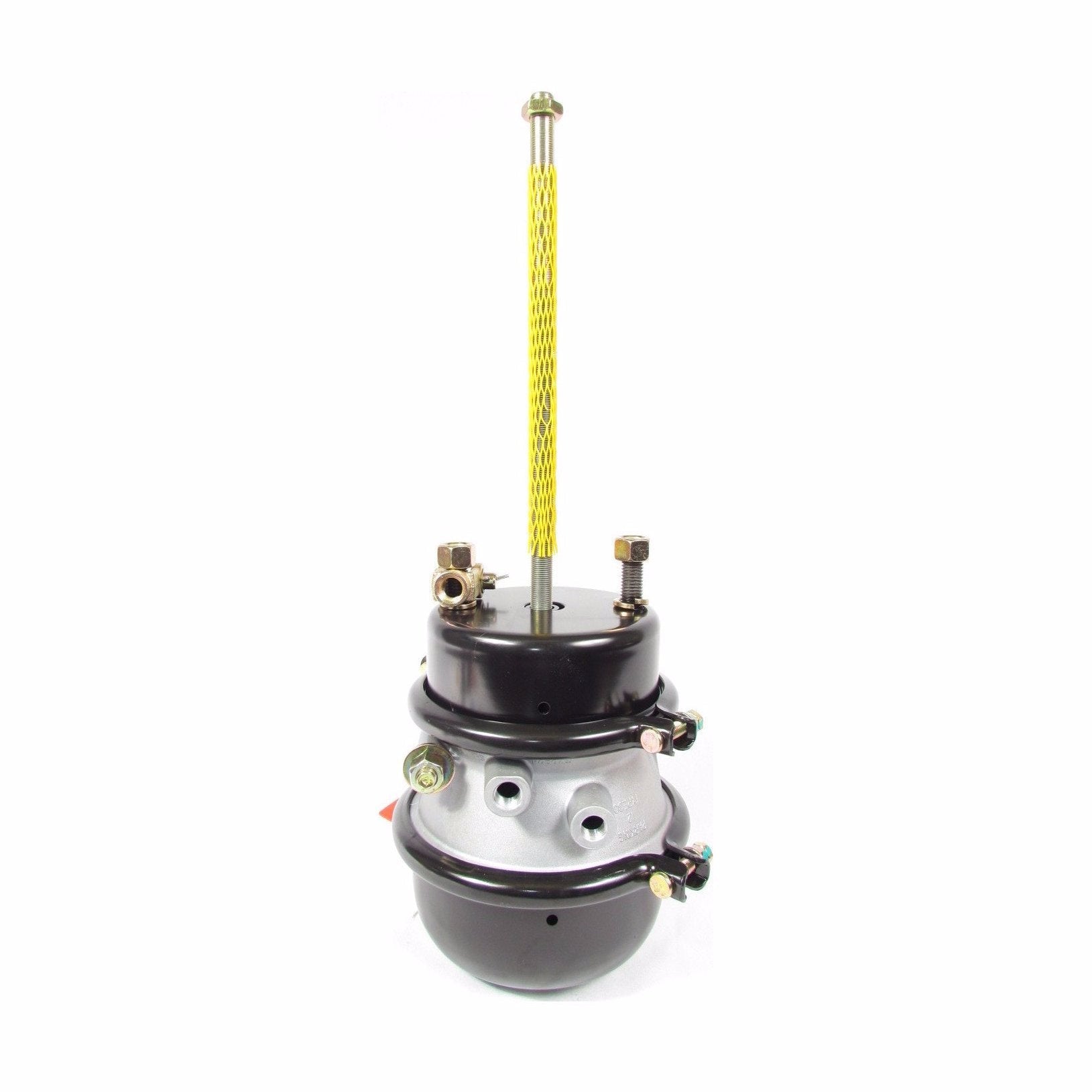

F224795 | SPRING BRAKE CHAMBER TYPE 24/30 SEALED

F224795 | SPRING BRAKE CHAMBER TYPE 24/30 SEALED

SKU: SKU:F224795

Inventory: 22 in stock

Shipping: Calculated at Checkout

Regular price $ 101.22 USD
Regular price Sale price $ 101.22 USD
Sale Sold out
Shipping calculated at checkout.

Shipping Policy

In order to send your purchase, our company may use different freight companies like USPS, UPS and some 3erd Carrier Services for Oversize orders, this will not affect the final price of your order. We will send you all the information in due time.

For Free Shipping and Freight/Oversize Shipments they are some special term you may check at our Terms & Conditions page.

Return Policy

If for any reason you need to return a purchased item, we have a 30-day return policy, which means you have 30 days after receiving your item to request a return.

To be eligible for a return, your item must meet the conditions established in our Terms & Conditions.

To start a return, use our Contact Form

View full details

Fortpro

Product Data Sheet

Description

Check Specification & Cross-references

Specification

  • Part: Air Brake Chamber
  • Part Type: 24/30
  • Part Series: GoldSeal
  • Air Port Position: 90°
  • Air Port Thread Diameter: 3/8-18 NPT
  • Bracket to End of Spring Housing Length: 9.3"
  • Clevis: Threaded
  • Finish: Powder Coated
  • Thread Diameter: 5/8"-18 UNF
  • Push Rod Diameter: 5/8"
  • Push Rod Length: 10"
  • Service Chamber Size: 24/30
  • Stroke Type: Standard
  • Stroke Length: 2 1/4"
  • Stud Distance: 4 3/4"
  • Notes: Sealed

Cross-References

  • Bendix: K026561, 800830
  • Euclid: E-GC2430
  • Fleetpride: FLTC2430SB20
  • Flagg: 2430GC
  • Haldex: GC2430
  • International-Navistar: 1607380C91, 1607379C91
  • Mack: 19QE453RP3
  • PAI: EM24300-100

Manufacture Standards:

Manufactured under ISO/TS 16949:2009 our brake components meet and exceed international standards.

Our air brake components have been passed the following tests:

  • Salt spray test
  • Leak tightness
  • Endurance test

Dimensions

Dimension Not Available.
