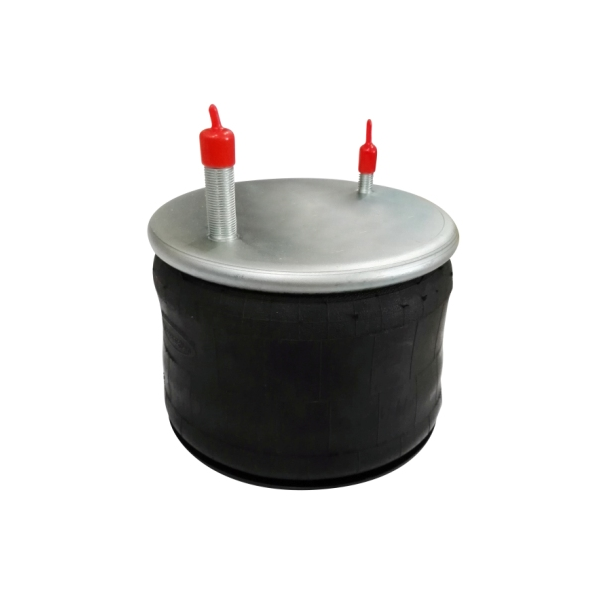

F245588 | AIR SPRING | Replace 9422 | 1R11-028 | FAS-0689

F245588 | AIR SPRING | Replace 9422 | 1R11-028 | FAS-0689

SKU: SKU:F245588

Inventory: More than 50 in Stock

Shipping: Calculated at Checkout

Regular price $ 134.37 USD
Regular price Sale price $ 134.37 USD
Sale Sold out
Shipping calculated at checkout.

Shipping Policy

In order to send your purchase, our company may use different freight companies like USPS, UPS and some 3erd Carrier Services for Oversize orders, this will not affect the final price of your order. We will send you all the information in due time.

For Free Shipping and Freight/Oversize Shipments they are some special term you may check at our Terms & Conditions page.

Return Policy

If for any reason you need to return a purchased item, we have a 30-day return policy, which means you have 30 days after receiving your item to request a return.

To be eligible for a return, your item must meet the conditions established in our Terms & Conditions.

To start a return, use our Contact Form

View full details


Product Data Sheet


Fortpro Air Spring F245588 works by using compressed air to absorb shocks and vibrations caused by irregularities in the road, which improves comfort, reduces driver fatigue and protects the transported load. Additionally, the Air Spring F245588 can be adjusted to accommodate different loads and riding conditions, providing a consistent level of ride height and stability.


  • Brand: Fortpro
  • Part Type: Air Spring / Air Spring Bag / Suspension Air Spring
  • Vehicle Type: Semi-Trucks, Heavy-Duty Trucks
  • Part OEM: 9422, W013589422, W01-358-9422
  • Position: Primary Truck & Trailer Axle

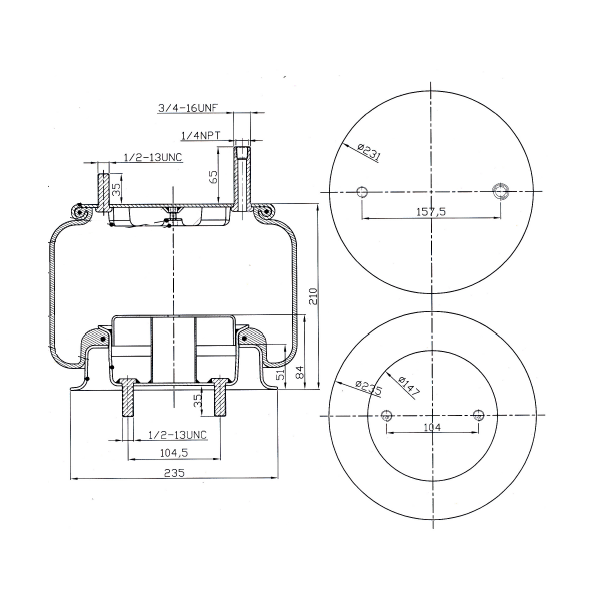

  • Air Spring Style: 1T Reversible Sleeve
  • Piston Type: Composite
  • Bead Plate Diameter Bottom: 9.50"
  • Bead Plate Diameter Top: 9.00"
  • Collapsed Height: 3.80"
  • Max. Height: 13.30"
  • Part Diameter: 9.12"
  • Piston Height: 2.80"
  • Stud Configuration - Bottom: 2
  • Stud Configuration - Top: 2
  • Application: Kenworth
  • VMRS: 016-008-000


  • Automann: 566CT64255, AB1DK20D9422
  • Contitech: 9912P314, 9912P314
  • Dayton Parts Batco: 1R11028, 3529422, 3529422AG
  • Firestone: 9205, 9422, 9614, 9615, W013589422, W01-358-9422
  • Goodyear: 1R11028, 1R11028
  • Hendrickson: S13032
  • Kenworth: K30314, K30315, K3036


Dimension Not Available.
