F245587 | AIR SPRING | Replace 9069 | 1R12-069 | FAS-0685

F245587 | AIR SPRING | Replace 9069 | 1R12-069 | FAS-0685

SKU: SKU:F245587

Inventory: More than 50 in Stock

Shipping: Calculated at Checkout

Regular price $ 145.28 USD
Regular price Sale price $ 145.28 USD
Sale Sold out
Shipping calculated at checkout.

Shipping Policy

In order to send your purchase, our company may use different freight companies like USPS, UPS and some 3erd Carrier Services for Oversize orders, this will not affect the final price of your order. We will send you all the information in due time.

For Free Shipping and Freight/Oversize Shipments they are some special term you may check at our Terms & Conditions page.

Return Policy

If for any reason you need to return a purchased item, we have a 30-day return policy, which means you have 30 days after receiving your item to request a return.

To be eligible for a return, your item must meet the conditions established in our Terms & Conditions.

To start a return, use our Contact Form

View full details

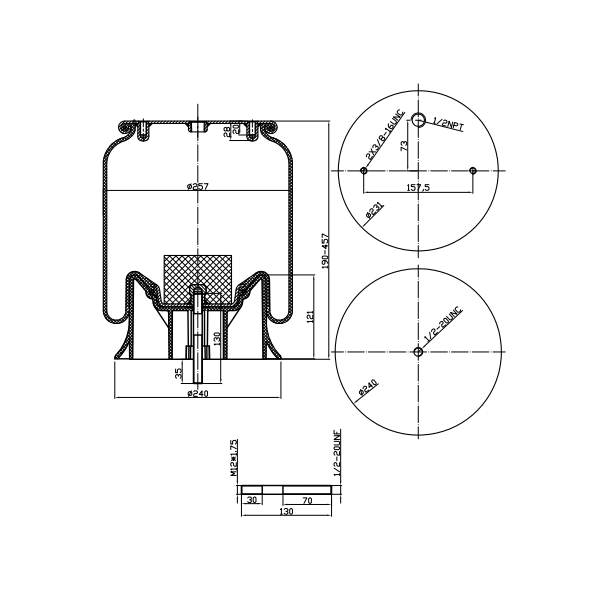

Product Data Sheet

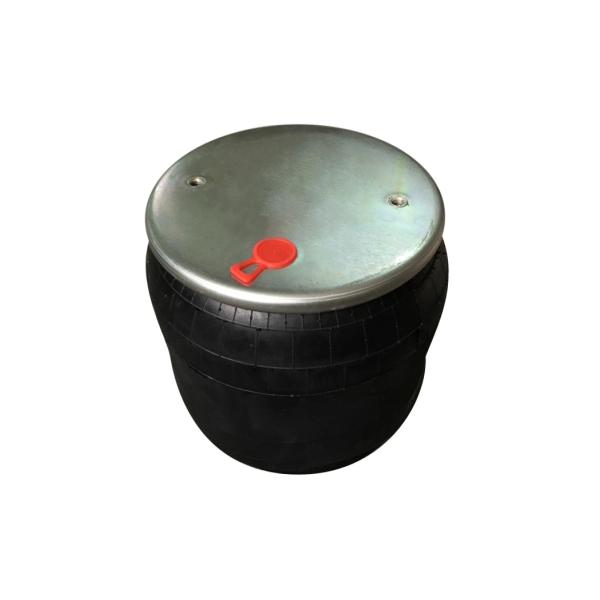

Fortpro Air Spring F245587 offers a combination of durability, comfort, safety and cargo protection that makes it a reliable and efficient option for commercial vehicles. Their superior performance and benefits in terms of productivity and maintenance make them a popular choice in the transportation industry.


  • Brand: Fortpro
  • Part Type: Air Spring / Air Spring Bag / Suspension Air Spring
  • Vehicle Type: Semi-Trucks, Heavy-Duty Trucks
  • Part OEM: 9069, W013589069, W01-358-9069
  • Position: Primary Truck & Trailer Axle
  • Air Spring Style: 1T Reversible Sleeve
  • Piston Type: Composite
  • Bead Plate Diameter Bottom: 9.50"
  • Bead Plate Diameter Top: 9.00"
  • Collapsed Height: 7.50"
  • Max. Height: 18.00"
  • Part Diameter: 10.12"
  • Piston Height: 4.75"
  • Stud Configuration - Bottom: 1
  • Stud Configuration - Top: 3
  • Application: Peterbilt
  • VMRS: 016-008-000


  • Automann: 566CT64274, 566ER9069, AB1DK23I9069, AB1DK23IA312
  • Contitech: 91014P312, 91014P312
  • Dayton Parts Batco: 1R12069, 1R12669, 1R12676, 3529069
  • Firestone: 9069, W013589069, W01-358-9069
  • Goodyear: 1R12069, 1R12069, 1R12669, 1R12669
  • Hendrickson: 9069, S13031
  • Meritor: FS9069, MAF9069


Dimension Not Available.
