F245582 | AIR SPRING | Replace 9466 | 1R12-365| 57QL411M | 49048-002L | FAS-0681

F245582 | AIR SPRING | Replace 9466 | 1R12-365| 57QL411M | 49048-002L | FAS-0681

SKU: SKU:F245582

Inventory: 31 in stock

Shipping: Calculated at Checkout

Regular price $ 193.38 USD
Regular price Sale price $ 193.38 USD
Sale Sold out
Shipping calculated at checkout.

Shipping Policy

In order to send your purchase, our company may use different freight companies like USPS, UPS and some 3erd Carrier Services for Oversize orders, this will not affect the final price of your order. We will send you all the information in due time.

For Free Shipping and Freight/Oversize Shipments they are some special term you may check at our Terms & Conditions page.

Return Policy

If for any reason you need to return a purchased item, we have a 30-day return policy, which means you have 30 days after receiving your item to request a return.

To be eligible for a return, your item must meet the conditions established in our Terms & Conditions.

To start a return, use our Contact Form

View full details


Product Data Sheet

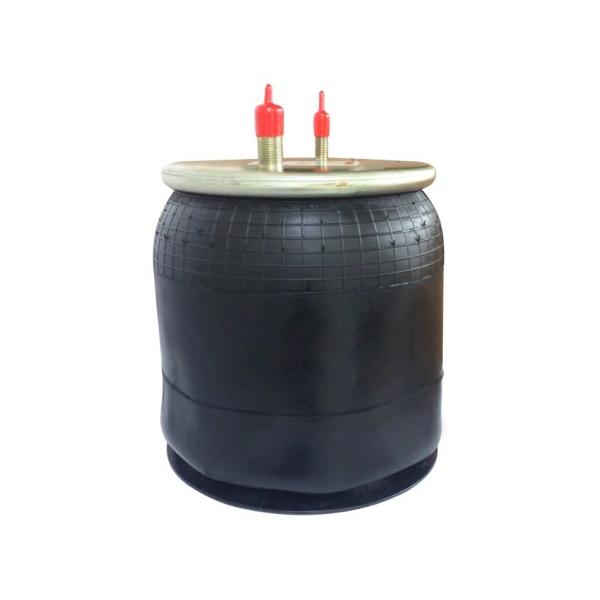

Fortpro Air Springs F245582 for Hendrickson and Mack (Early CH Models) is a high quality type of air suspension designed for commercial vehicles that require a strong and reliable suspension. These Air Springs offer greater driving comfort, stability and safety by absorbing shock and vibration from the road and providing additional support to the vehicle's suspension system.


  • Brand: Fortpro
  • Part Type: Air Spring / Air Spring Bag / Suspension Air Spring
  • Vehicle Type: Semi-Trucks, Heavy-Duty Trucks
  • Part OEM: 9466, W01-358-9466, W013589466
  • Position: Primary Truck & Trailer Axle

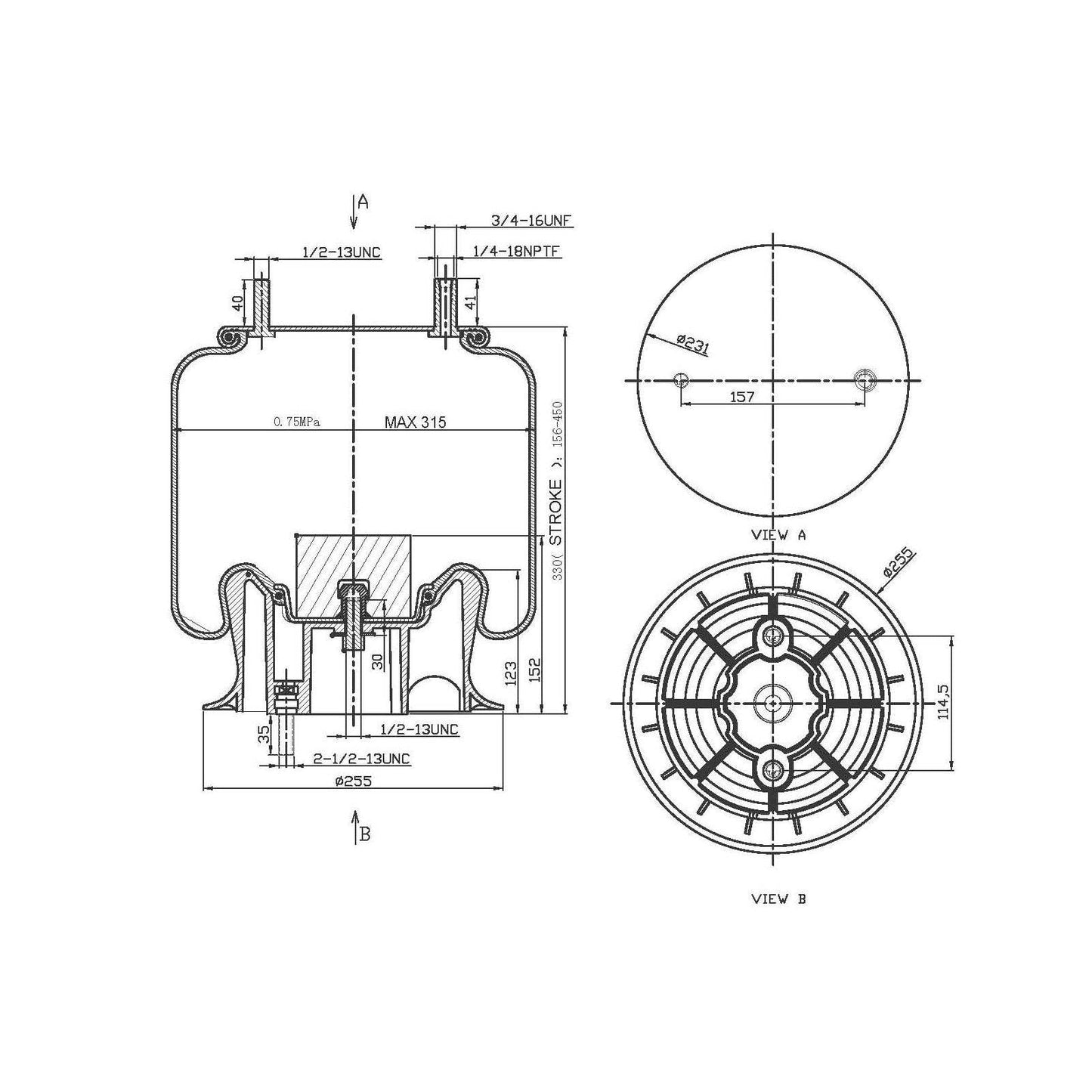

  • Air Spring Style: 1T Reversible Sleeve
  • Piston Type: Composite
  • Bead Plate Diameter Bottom: 10.00"
  • Bead Plate Diameter Top: 9.00"
  • Collapsed Height: 8.10"
  • Max. Height: 20.00"
  • Part Diameter: 10.12"
  • Piston Height: 4.88"
  • Stud Configuration - Bottom: 2
  • Stud Configuration - Top: 2
  • Application: Hendrickson, Mack (Early CH Models)
  • VMRS: 016-008-000


  • Automann: 566CT64276, AB1DK23K9466, AB1DK23KP442
  • Contitech: 91016P410, 91016P410
  • Dayton Parts Batco: 1R12365, 3529466, 49048002L
  • Firestone: 9466, W013589466
  • Goodyear: 1R12173, 1R12173, 1R12197, 1R12197, 1R12365, 1R12365, 1R12902
  • Hendrickson: 49048000, 49048002, 490482, 49674000, 49674001, 49674002
  • Mack: 364QS28, 57QL411M


Dimension Not Available.
