Fortpro

Product Data Sheet

Description

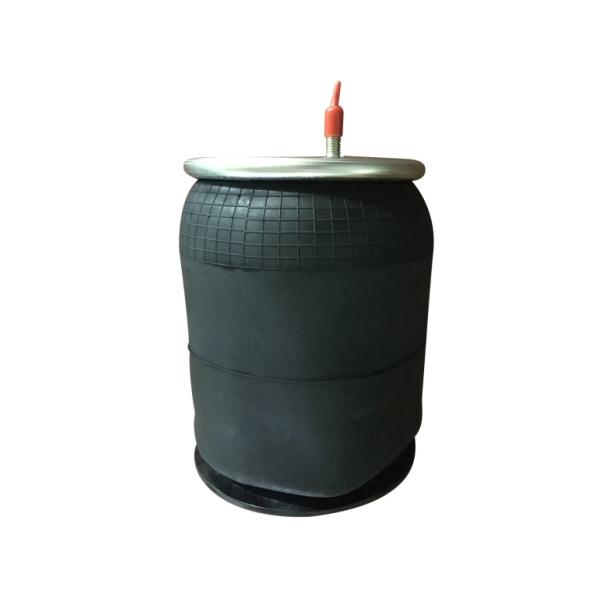

Fortpro Air Springs F245581 is an air suspension solution with a strong design and made with high quality materials. They offer greater load capacity, flexibility, stability and driving comfort. Plus, they're easy to install and maintain, making them a reliable and long-lasting option for upgrading your commercial vehicle suspension.

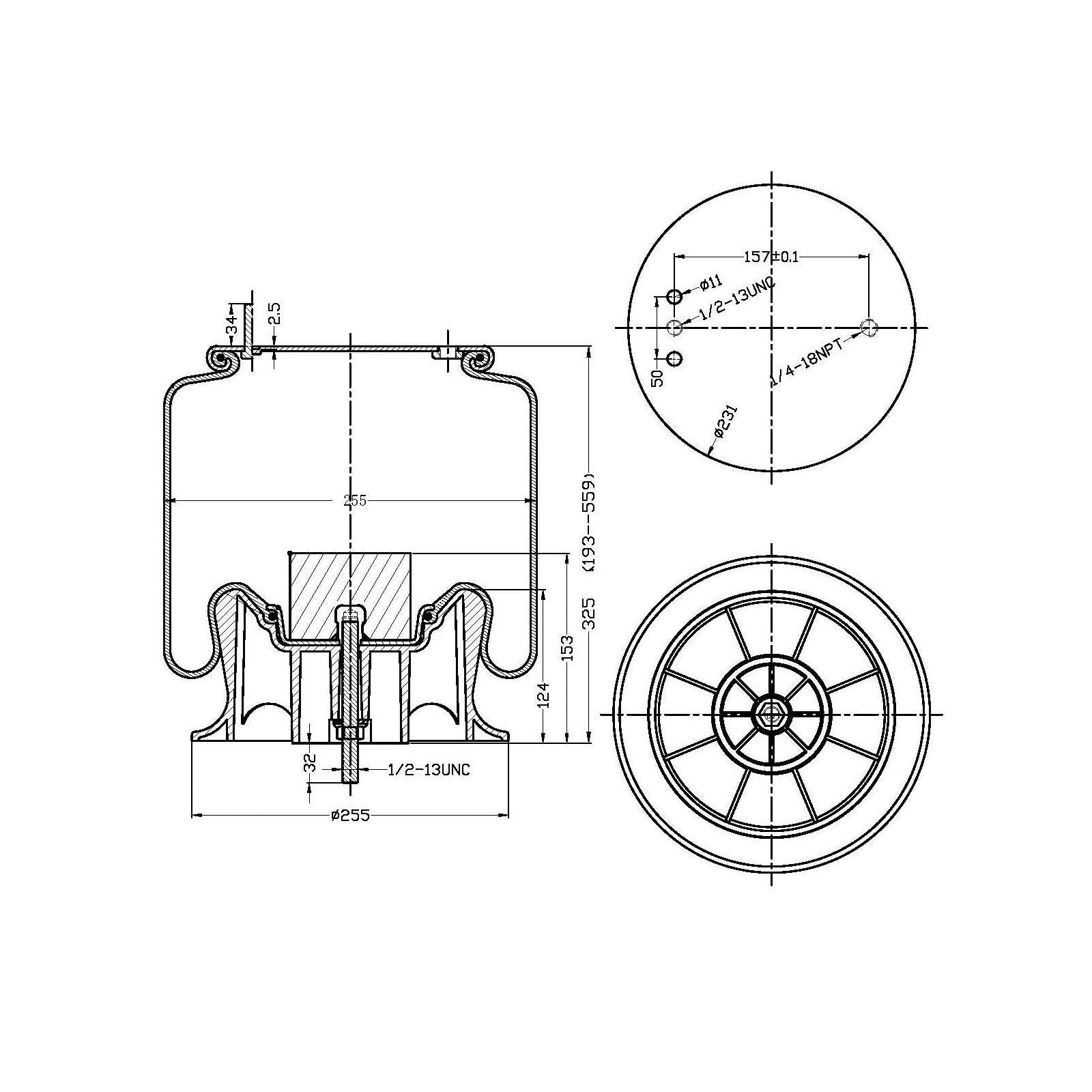

Specification

  • Brand: Fortpro
  • Part Type: Air Spring / Air Spring Bag / Suspension Air Spring
  • Vehicle Type: Semi-Trucks, Heavy-Duty Trucks
  • Part OEM: 9375, W01-358-9375, W01-358-9375
  • Position: Primary Truck & Trailer Axle
  • Air Spring Style: 1T Reversible Sleeve
  • Piston Type: Composite
  • Bead Plate Diameter Bottom: 10.00"
  • Bead Plate Diameter Top: 9.00"
  • Collapsed Height: 8.10"
  • Max. Height: 22.00"
  • Part Diameter: 10.12"
  • Piston Height: 4.85"
  • Stud Configuration - Bottom: 1
  • Stud Configuration - Top: 2
  • Application: Hendrickson, Mack
  • VMRS: 016-008-000

Cross-References

  • Automann: AB1DK23M9375
  • Contitech: 910175P451, 910185P451(BK)
  • Dayton Parts Batco: 1R121076, 1R12404, 3529375, 50899002L
  • Firestone: 9375, W013589375
  • Goodyear: 1R12404, 1R12404, 1R12488, 1S12030, 1S12031
  • Hendrickson: 50899001, 50899002
  • Mack: 364QS27, 57QL414M

Dimensions

Dimension Not Available.
