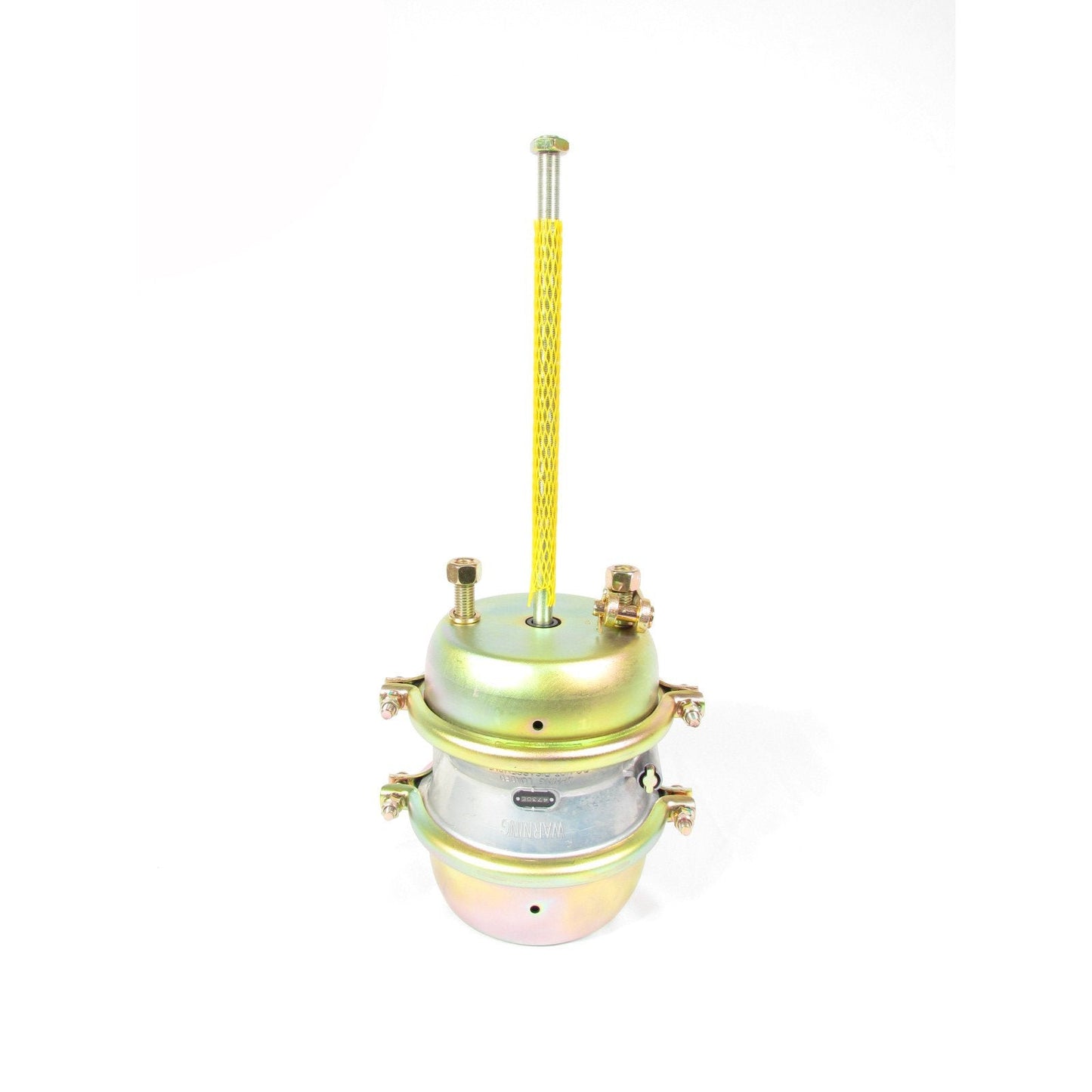

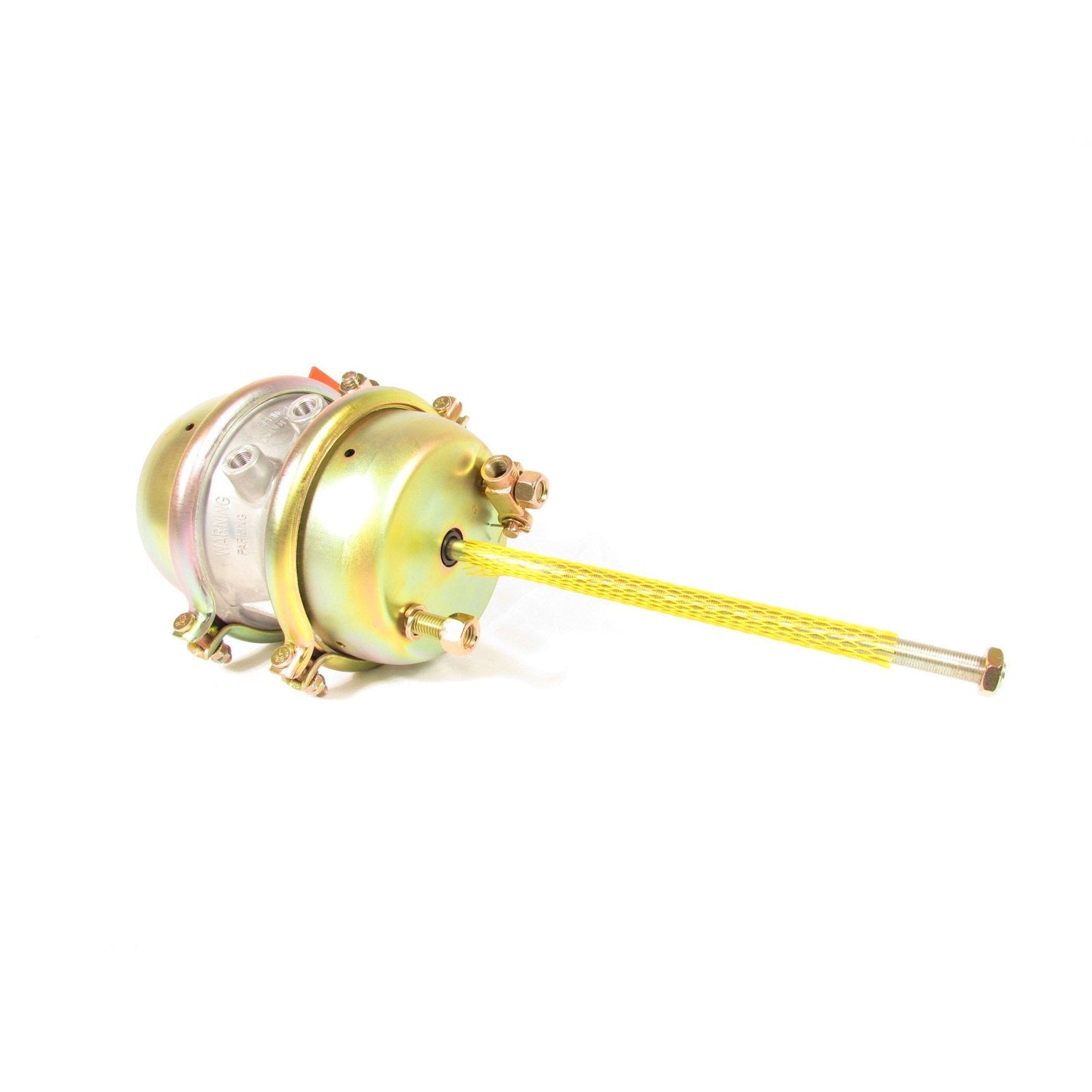

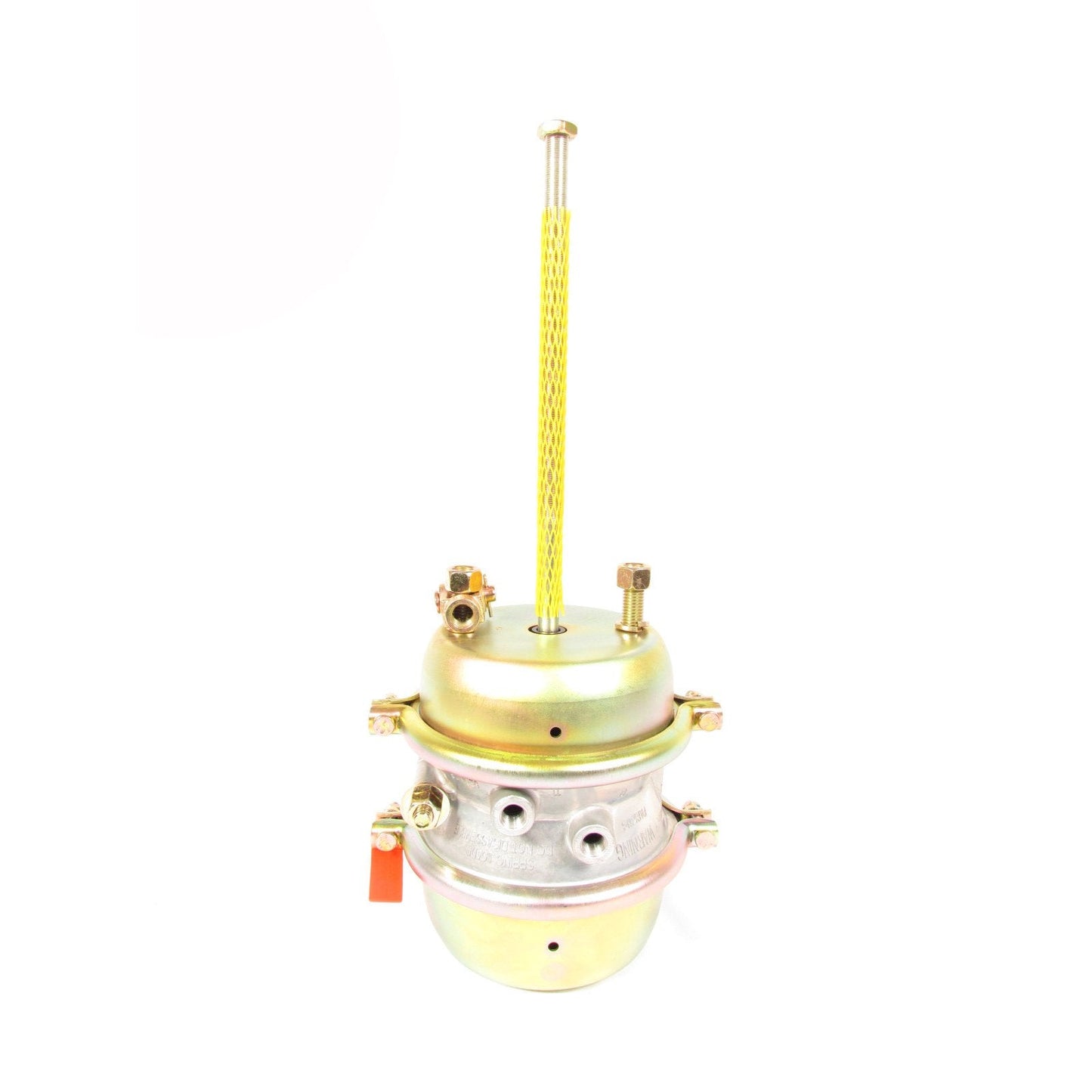

F224730 | 3030 BRAKE CHAMBER, TYPE 30/30 BRAKE CHAMBER | Replace 19QE441RP1
Fortpro
$ 51.54
Specifications:
- Part: Spring Brake Chamber
- Part Type: 30/30
- Part Series: GoldSeal
- AirPort Position: 90°
- AirPort Thread Diameter: 3/8-18 NPT
- Bracket to End of Spring Housing Length: 9"
- Clevis: Threaded
- Finish: Powder Coated
- Thread Diameter: 5/8"-11 UNC
- Maximum Pressure: 150 PSI
- Push Rod Diameter: 5/8-18 UNF
- Push Rod Length: 13 1/4"
- Service Chamber Size: 30/30
- Stroke: Standard
- Stroke Length: 2 1/2"
- Stud Distance: 4 3/4"
- Notes: Serviceable
CrossReference:
- Automann: 179SB3030, 179SB3030S
- Bendix: 165255, K049898, NT3030STD120
- Dayton: 3030C
- Euclid: E-BC3030C
- Freightliner: 3030TS
- Haldex: GC3030
- Mack: 19QE441RP1
- Meritor: R873030C
- PAI: EM30300-100
Manufacture Standards:
Manufactured under ISO/TS 16949:2009 our brake components meet and exceed international standards.
Our air brake components have been passed the following tests:
- Salt spray test
- Leak tightness
- Endurance test
