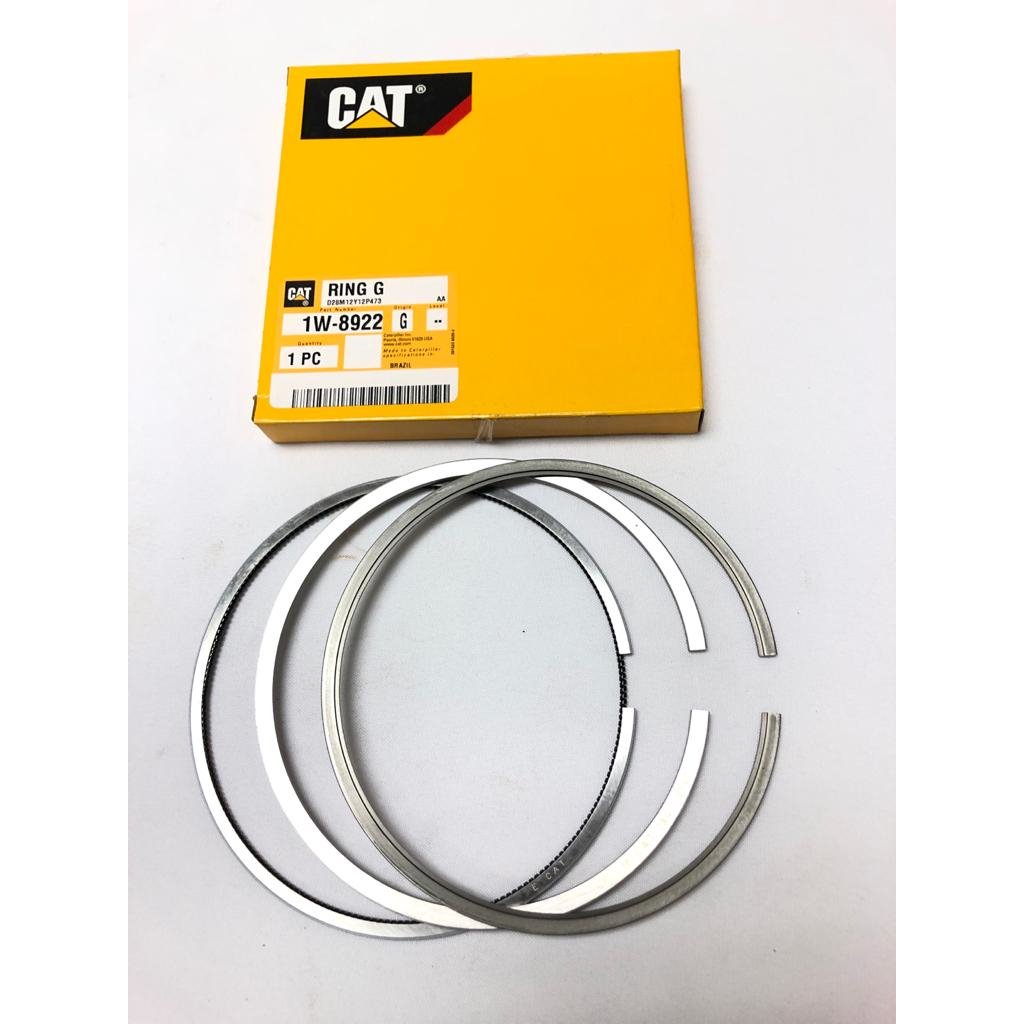

1W-8922 Piston Ring Set OEM CAT 1W8922

1W-8922 Piston Ring Set OEM CAT 1W8922

SKU: SKU:1W8922

Out of stock

Shipping: Free Shipping

Regular price $ 204.58 USD
Regular price Sale price $ 204.58 USD
Sale Sold out
Shipping calculated at checkout.

Shipping Policy

In order to send your purchase, our company may use different freight companies like USPS, UPS and some 3erd Carrier Services for Oversize orders, this will not affect the final price of your order. We will send you all the information in due time.

For Free Shipping and Freight/Oversize Shipments they are some special term you may check at our Terms & Conditions page.

Return Policy

If for any reason you need to return a purchased item, we have a 30-day return policy, which means you have 30 days after receiving your item to request a return.

To be eligible for a return, your item must meet the conditions established in our Terms & Conditions.

To start a return, use our Contact Form

View full details


Product Data Sheet


Maximize efficiency and extend the life of your engine with the OEM CAT 1W8922 Piston Ring Set, designed for the Caterpillar 3400 series. This authentic, high-quality piston ring set ensures the optimal sealing necessary for efficient combustion and superior engine performance. Manufactured with materials of the highest resistance, it offers exceptional durability in the face of extreme conditions, significantly reducing oil consumption and keeping your engine in optimal conditions. Trust the precision of genuine CAT parts to keep your equipment operating at its highest level.


  • Brand: CAT
  • Vehicle Type: Semi-Trucks / Heavy Trucks
  • Product Department: Engine
  • Product category : CAT Parts
  • Part Type: Piston Ring Set
  • OEM Reference #: 1W8922, CAT1W8922
  • Ring Count: 3
  • Rings Bore: 5.4 in. (137.160mm)
  • Compression Piston Ring: :
  • Min Thickness: 0.12 in. (3.300mm)
  • Max Thickness: 0.15 in. (3.810mm)
  • Mount Position: Top
  • Intermediate Piston Ring: :
  • Min Thickness: 0.1059 in. (2.690mm)
  • Max Thickness: 0.1072 in. (2.725mm)
  • Mount Position: Middle (Wiper Ring)
  • Oil Control Piston Ring: :
  • Max Thickness: 0.1240 in. (3.150mm)
  • Mount Position: Bottom (Oil Control Ring)
  • Rings Material : Cast Iron
  • Applications:
    Caterpillar 3400 Series B/C/ Early E

BOM (Bill of Materials):

  • Compression Piston Ring OEM Reference: 1W9460 pcs x 1
  • Intermediate Piston Ring OEM Reference: 2P2817 pcs x 1
  • Oil Control Piston Ring OEM Reference: 7N7078 pcs x 1


  • CAT: 1W8922, CAT1W8922, CAT7C8936, 7C8936


Dimension Not Available.
